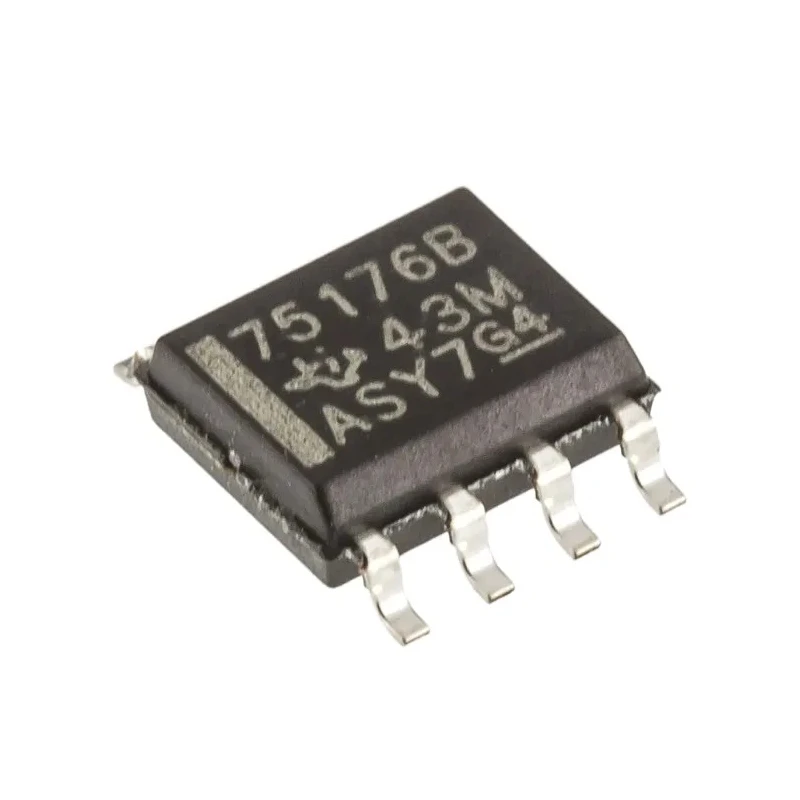

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN75176BD

The Texas Instruments SN75176BD is a line transceiver designed for robust differential and non-inverting data transmission in RS-485 communication networks. This device operates with a supply voltage between 4.75V and 5.25V, providing reliable bus transceiver functionality for high-speed data transfer with a single channel.

Its 8-pin SOIC surface mount package enables seamless printed circuit board integration for compact electronic system designs. The transceiver supports differential input and output signaling, enhancing noise immunity and signal integrity over long communication lines.

Operating between 0°C and 70°C, it suits a wide range of industrial, commercial, and embedded system applications. The device can handle maximum output currents of ±60mA, ensuring capable driving of communication lines with minimal signal distortion.

With a maximum propagation delay time of 35ns at capacitive load, this transceiver ensures fast and accurate data transmission, critical in timing-sensitive setups. It consumes a modest 70mA supply current, balancing performance with energy efficiency.

The physical dimensions (5mm length, 3.98mm width, 1.75mm height) make it ideal for space-constrained applications. It is not certified under automotive or other specific standards, suitable primarily for electronic subsystem integration.

Equipped with a single communication channel for differential input and output signaling. Operates with a supply voltage range of 4.75V to 5.25V ensuring compatibility with standard digital systems. Supports bus transceiver function with non-inverting polarity for precise signal transmission.

Designed for surface mount technology with an 8-pin SOIC package type for compact PCB integration. Ensures fast data propagation with a maximum propagation delay time of 35ns at a capacitive load. Supports operating temperature from 0°C to 70°C, suitable for industrial and commercial applications.

Handles output current ratings of up to ±60mA for reliable signaling. Compact dimensions with a length of 5mm, width of 3.98mm, and height of 1.75mm for space-efficient designs. Low supply current of 70mA minimizing power consumption during operation.

Complies without specific standards or automotive certifications.

This line transceiver is widely used in industrial communications, embedded electronics, manufacturing control systems, and other environments requiring reliable differential RS-485 signaling. Its design supports stable and efficient data transfer for automation, instrumentation, and other electronic applications.
