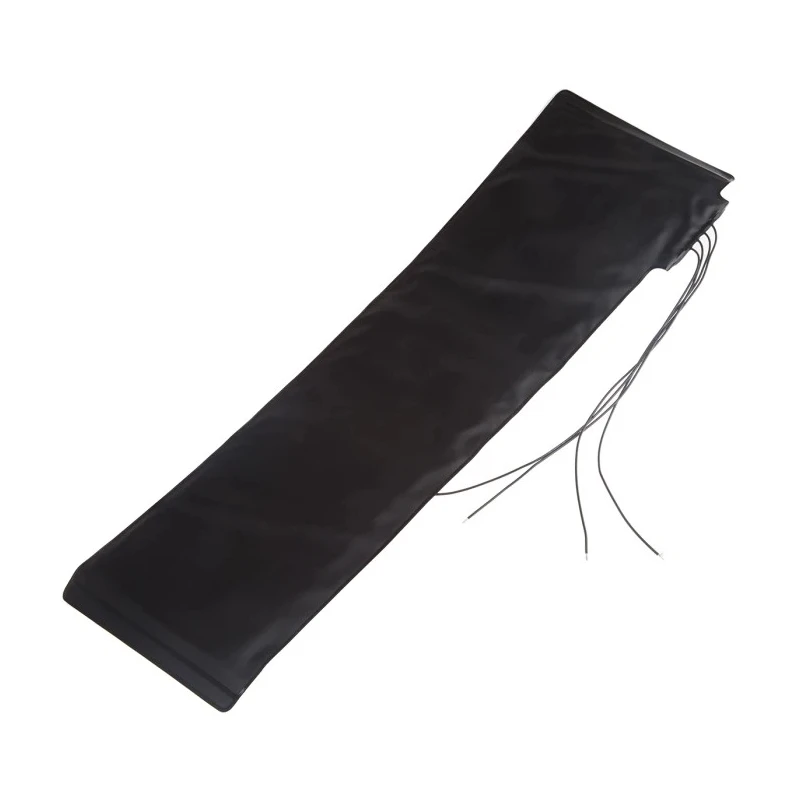

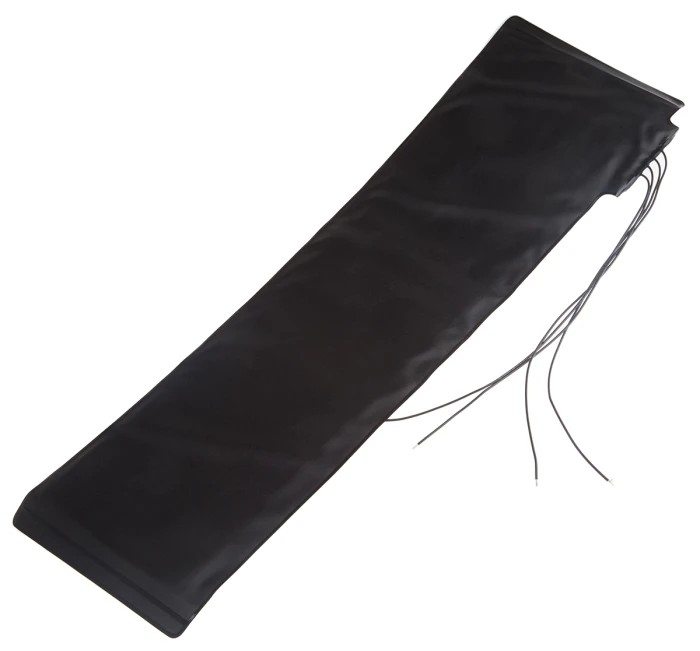

RS PRO Pressure Mat Surface Mount Pressure Pad Switch 25V DC 250mA 595mm x 170mm 3mm Depth 918-4756
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Black |
| Operating Temperature | -10° to +70° C |
| Height | 595mm |
| Model | 918-4756 |
| Depth | 3mm |
| Cable | 0.22mm2 black PVC insulated |
| Width | 170mm |
| Mount Type | Surface |
| Ingress Protection | IP64 (Not waterproof) |
| Maximum Switching Current | 0.25 Amps DC (Resistive) |
| Maximum Power | 10 W/VA |
| Switching Current | 250mA |
| Contact Resistance | 1 Ohm (typical) |
| Standards/Approvals | RoHS |
| Switching Voltage | 25V dc |
| Mat Material | Seem welded PVC |
| Maximum Switching Voltage | 25 V/DC |
| Activation Type | Pressure Pad Switch |
| RS PRO Security Alarm Door & Window Switch Surface MountBrand | RS PRO |
| Actuation pressure | 25Kg over 50mm2 |
| Contact Form / Style | Normally open |
Key Features
- This pressure mat is surface mountable and operates via a normally open switch configuration.
- It activates under an actuation pressure of 25 kg over a 50 mm² area ensuring precise triggering.
- The mat material is seam-welded PVC, providing durability and long service life.
- The product dimensions are 595 mm height, 170 mm width, and 3 mm depth with an ingress protection rating of IP64.
- Operating temperature range is from -10° to +70° Celsius, suitable for various environments.
- It is black in color with a 0.22 mm² black PVC insulated cable for connectivity.
- Ideal for security alarms, automatic door operations, patient bed monitoring, and seat occupancy detection.
- The product complies with RoHS standards and originates from Taiwan, Province Of China.
Product Description
RS PRO 918-4756 Pressure Mat is a surface mount pressure pad switch designed for effective presence and occupancy monitoring in industrial, commercial, and security applications. Operating at 25V DC with a maximum current rating of 250mA, this pressure mat triggers when a load exceeding 25 kg is applied over a 50 mm² area.
The mat is constructed from seam-welded PVC, ensuring durability and repeated use without compromising performance. Its slim profile with dimensions of 595 mm height by 170 mm width and 3 mm depth allows for discreet placement under carpets, vinyl flooring, or furniture upholstery.
The device features a normally open switch configuration and offers ingress protection rated at IP64, protecting against dust ingress and water spray, though it is not waterproof. It functions across a broad temperature range from -10° to +70° Celsius, making it suitable for diverse environmental settings.
With a 0.22 mm² black PVC insulated cable, the connection is reliable and secure. This pressure mat is particularly suited for security systems including alarm systems, automatic door control, patient bed monitoring, and seat occupancy detection.
Manufactured under RoHS compliance, this product ensures restricted hazardous substances usage, endorsing eco-friendly standards. The country of origin is Taiwan, Province Of China.
This pressure mat is designed for surface mounting application. Activation occurs via a pressure pad switch with a normally open contact style. The mat material is durable seam-welded PVC capable of repeated actuation. Rated maximum switching voltage is 25 V DC with a maximum current of 0.25 Amps.
Capable of operating within temperatures from -10° to +70° Celsius. IP64 ingress protection rating suitable for dust and water spray resistance. Dimensions of 595 mm height, 170 mm width, and 3 mm depth offer easy integration.
Ideal for use in security alarm systems, patient monitoring, and occupancy sensing applications.
This RS PRO product category and quality ensure reliable sensor functionality in industrial and commercial settings. Explore more pressure sensors and related devices on EnvMart for all your sensing and control requirements.
Explore more products in our Door Sensors & Window Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pressure mat activates under an actuation pressure of 25 kg over a 50 mm² area.
It operates within a temperature range of -10° to +70° Celsius.
It features a normally open switch configuration.
The mat has an ingress protection rating of IP64, which protects against dust ingress and water spray, but it is not waterproof.
The maximum switching current is 250 mA (0.25 Amps DC).
It is constructed from seam-welded PVC, which provides durability for repeated use.
The pressure mat includes a 0.22 mm² black PVC insulated cable for reliable connectivity.
It is ideal for security alarms, automatic door operations, patient bed monitoring, and seat occupancy detection.
The country of origin for this product is Taiwan, Province Of China.
The maximum switching voltage is 25 V DC.
Yes, it complies with RoHS standards, ensuring restricted hazardous substances usage.
