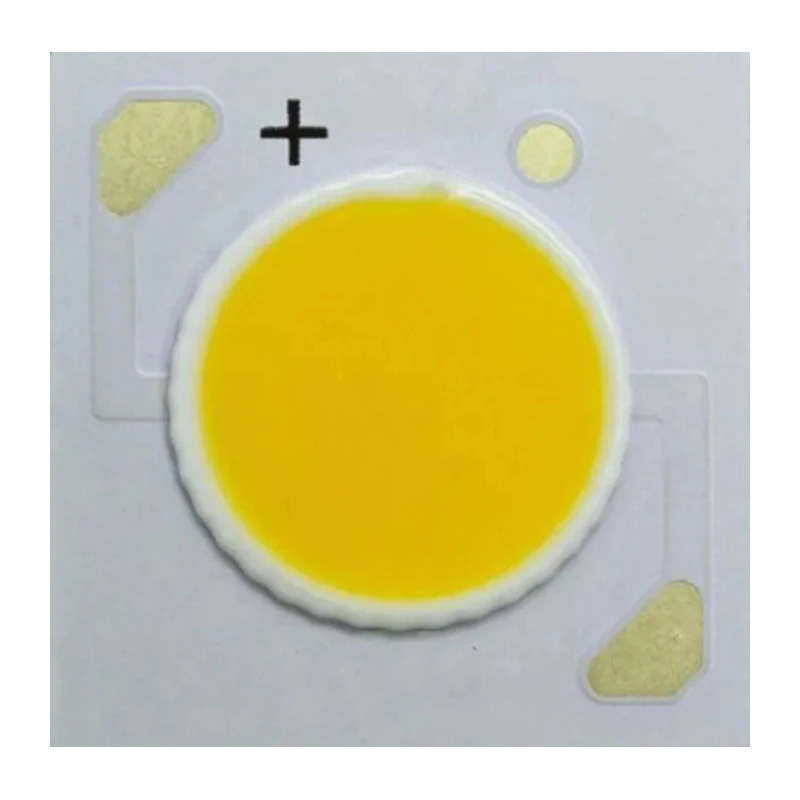

Cree LED High Flux White CoB LED 2700K 70% CRI 36V Forward Voltage CXA1507-0000-000N00G227G

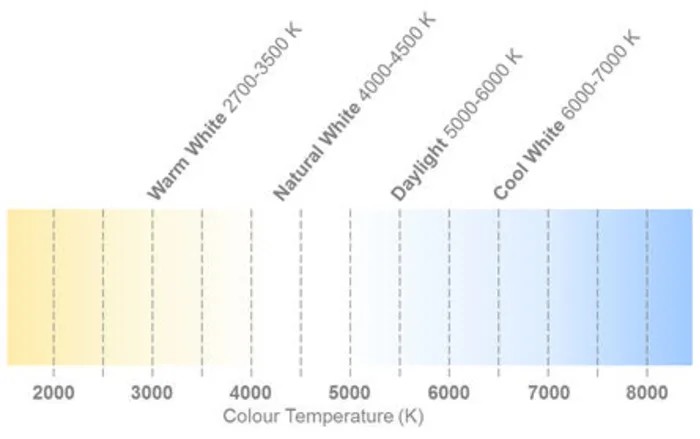

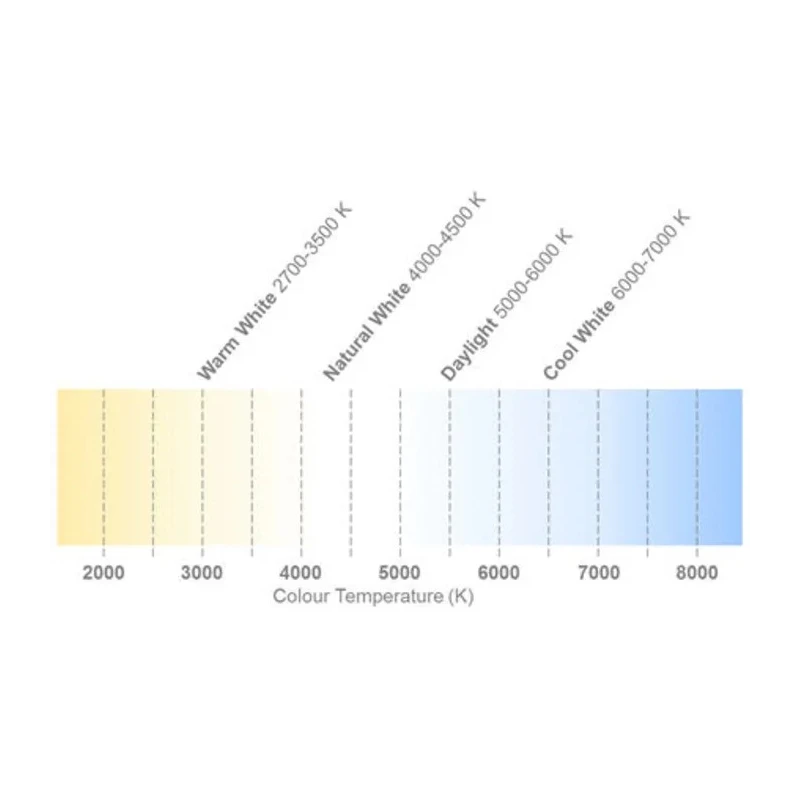

The Cree LED CXA1507-0000-000N00G227G is a compact and high-performance White CoB LED designed for both directional and non-directional lighting applications. With a color temperature of 2700K and a color rendering index (CRI) of 70%, it provides warm white illumination suitable for residential and commercial lighting fixtures.

This LED incorporates multiple dies within a uniform emitting surface, delivering a typical luminous flux of 871 lumens and a radiant flux of 14.8 watts. The optical source measures 8.9 mm in diameter, optimized for efficient light delivery. It operates with a maximum forward current of 750 mA and requires a forward voltage of 36 V, making it suitable for a range of lighting driver configurations.

Featuring a wide 115-degree viewing angle, this component ensures broad and even light distribution, ideal for downlights, GU10 LED bulbs, and other general lighting applications. It is housed in tray packaging for ease of integration into automated assembly lines.

Compliant with key industry standards such as RoHS, NEMA SSL-3 2011, UL (E349212), and REACH, the CXA1507 LED ensures quality and environmental safety. Manufactured in China, this robust LED array benefits from Cree's XLamp technology, known for high flux and lighting-class reliability.

Key electrical characteristics include maximum drive currents of 750 mA at 18 V and 375 mA at 37 V, and top-side solder connections for straightforward PCB mounting. The LED also features an attach point for thermocouples, facilitating precise thermal management in demanding installations.

The LED delivers a typical luminous flux of 871 lm. Optical source diameter is 8.9 mm for focused light emission. Maximum forward current is 750 mA ensuring bright output. 2700K color temperature with 70% color rendering index.

Radiant flux rated at 14.8 W for efficient lighting. Wide 115° viewing angle for broad illumination. Forward voltage of 36 V suitable for various drivers. Compliant with RoHS, NEMA SSL-3 2011, UL, and REACH standards. Tray packaging supports automated assembly processes.

This Cree CXA LED series is widely used in industrial, commercial, architectural, and residential lighting projects. Its reliability, flux density, and ease of integration make it a preferred option for lighting manufacturers and designers. Discover more high-quality LEDs in the Electronics & Electricals category on EnvMart.
