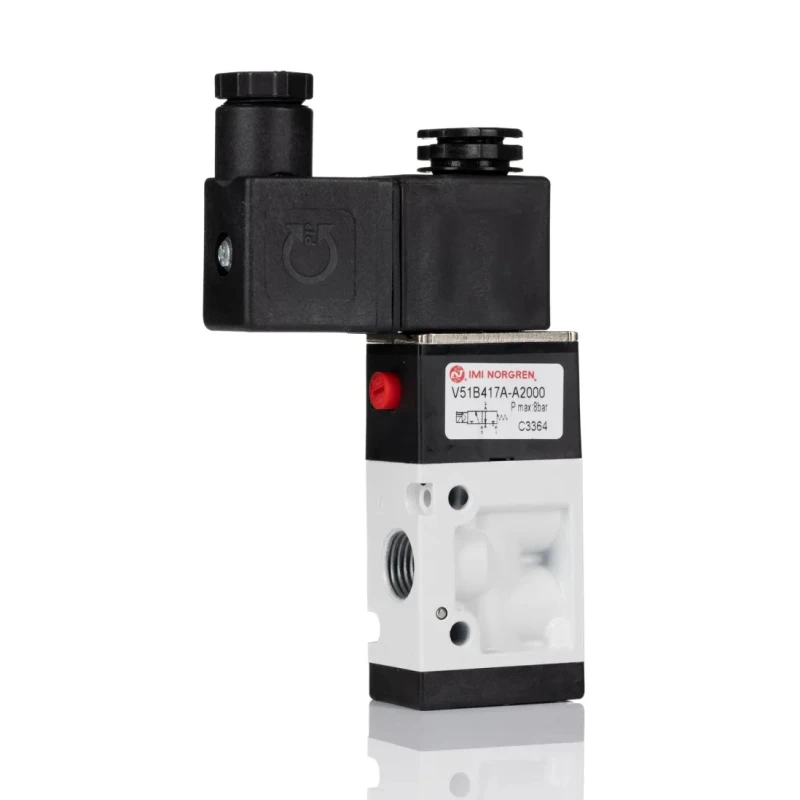

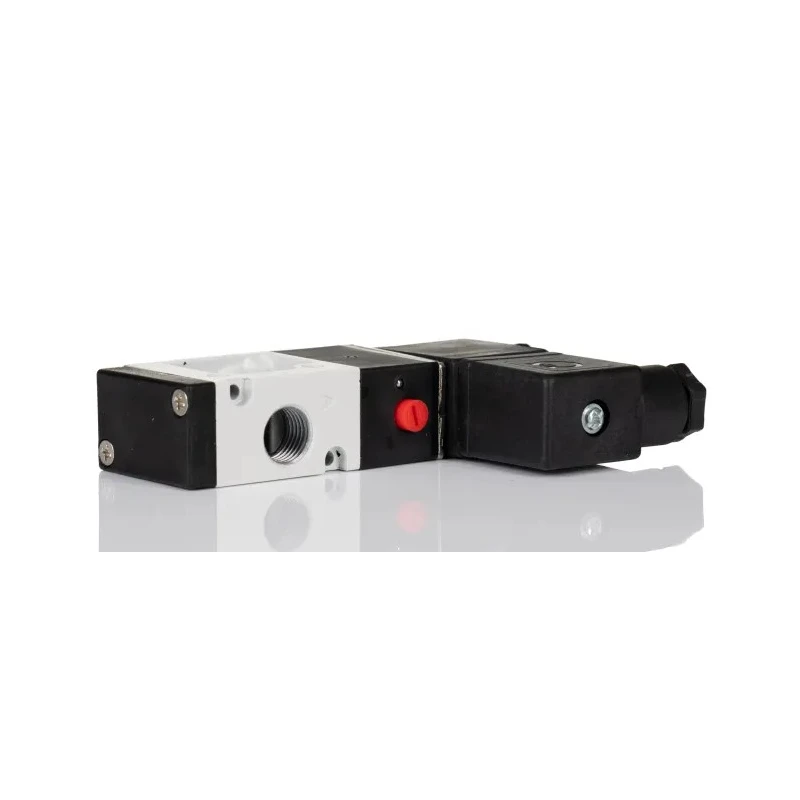

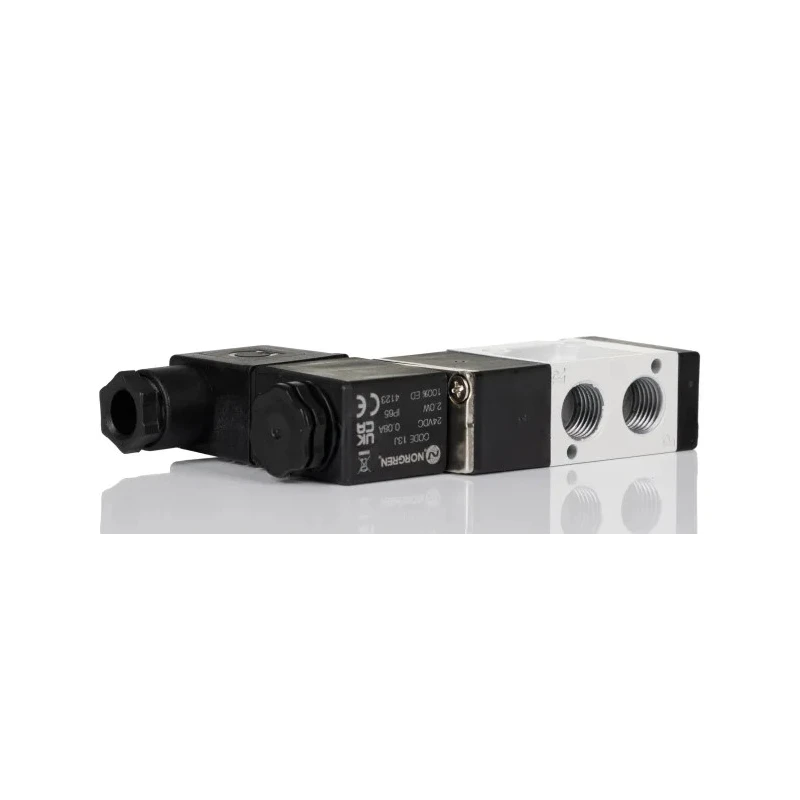

RS PRO Pneumatic Solenoid Valve 3/2 Solenoid/Spring G 1/4 in, 24V DC, 2W, Die Cast Aluminium Body 907-6393

RS PRO 907-6393 Pneumatic Solenoid Valve 3/2 Solenoid/Spring G 1/4 in 24V DC is engineered for precise control of airflow in pneumatic systems. This valve features a robust die-cast aluminium body that is lightweight yet durable, making it suitable for a wide range of industrial and automation applications.

With a 3/2 function design, it has three ports and two switching positions to enable effective pressure release and vacuum system control. The valve operates using an efficient solenoid with 24V DC voltage and a low power consumption of 2 watts, ensuring energy-efficient performance.

The valve supports inline or manifold mountings and uses a standard female G 1/4 inch thread connection, facilitating easy integration into existing pneumatic systems. It can manage airflows up to 1020 litres per minute, making it suitable for high-demand industrial environments.

The operational temperature range spans from -5°C to a maximum of 50°C, with an allowable operating pressure range from 2 to 8 bar. The nitrile rubber seal material ensures reliable sealing and long service life. Additionally, the plug socket electrical connection type enhances ease of setup and maintenance.

This product is RoHS compliant and conforms to electrostatic discharge control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007. It is ATEX certified for use in hazardous areas and explosive atmospheres, adding to its versatility in demanding environments.

Commonly applied in pneumatic presses, textile production, food and beverage machinery, and general automation industries, this valve ensures precise, reliable control in diverse industrial pneumatic applications.

The valve features a 3/2 configuration with three ports and two switching positions. Constructed with a lightweight die-cast aluminium body for durability. Designed for inline or manifold mounting with a female G 1/4 inch thread port.

Operates efficiently at 24V DC with a low solenoid power consumption of 2 watts. Capable of handling maximum flow rates up to 1020 litres per minute. Operates within temperature range of -5°C to 50°C for versatile industrial use.

Supports operating pressures from 2 to 8 bar for reliable pneumatic control. Equipped with a nitrile rubber (NBR) seal material ensuring airtight sealing. Electrical connection via plug socket simplifies installation and maintenance.

Complies with RoHS standards and has electrostatic control certifications including ANSI/ESD S20.20 and BS EN 61340-5-1. Explore the extensive RS PRO range for reliable Pneumatic Solenoid Valves and complementary industrial control components at EnvMart.
