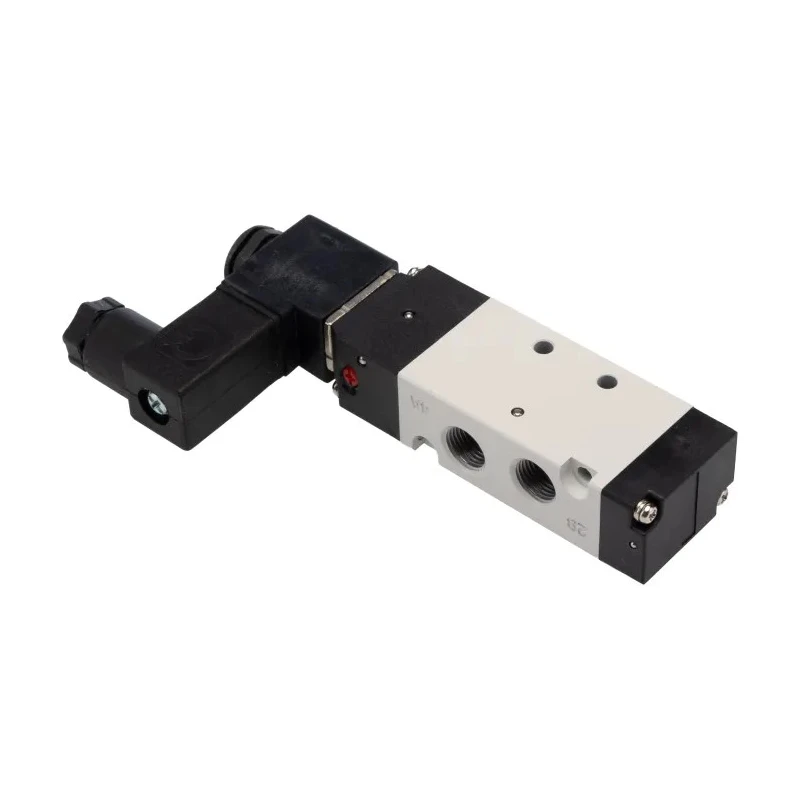

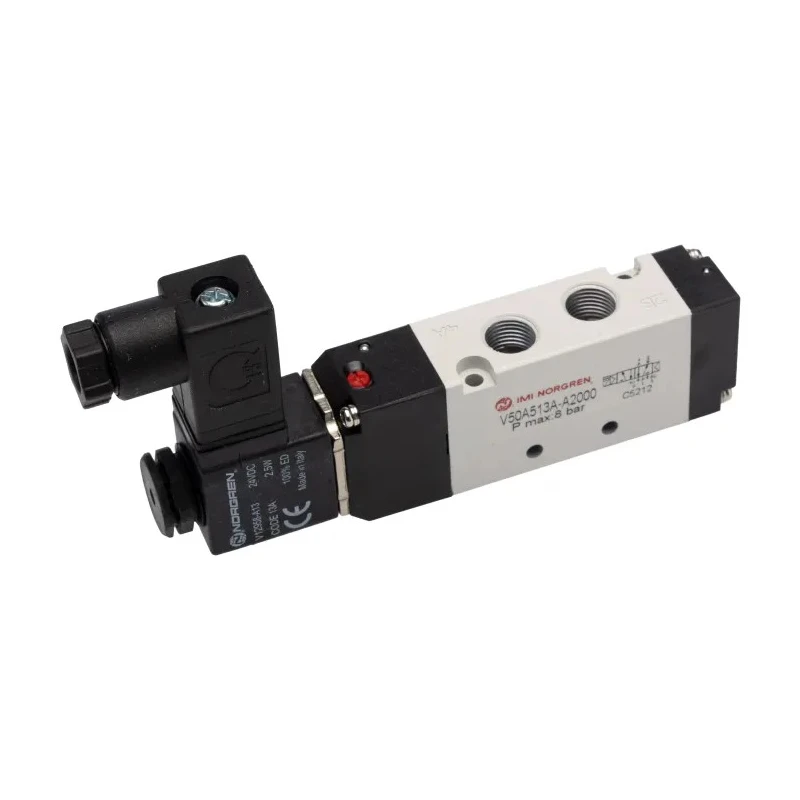

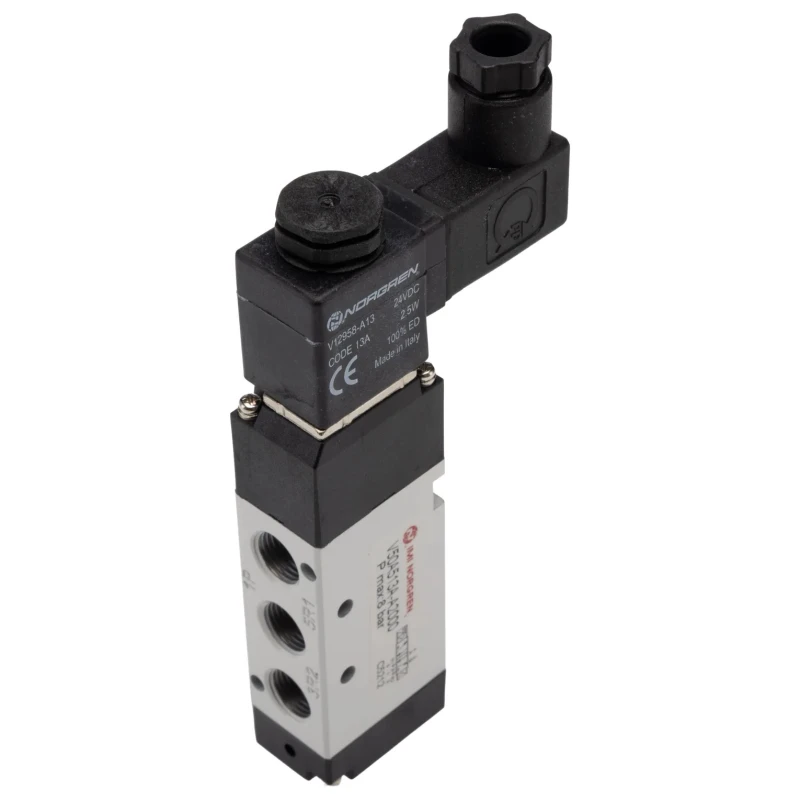

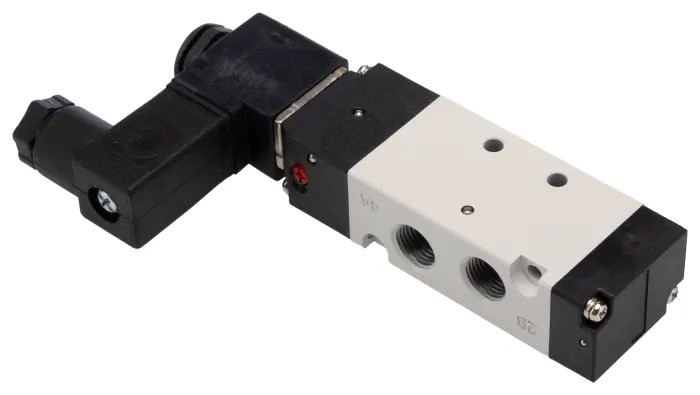

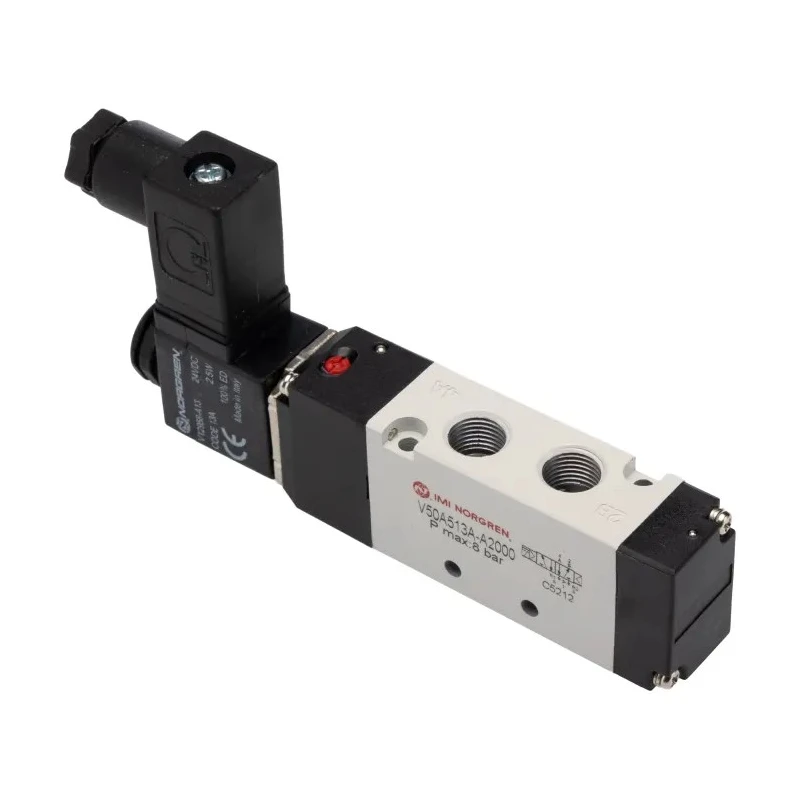

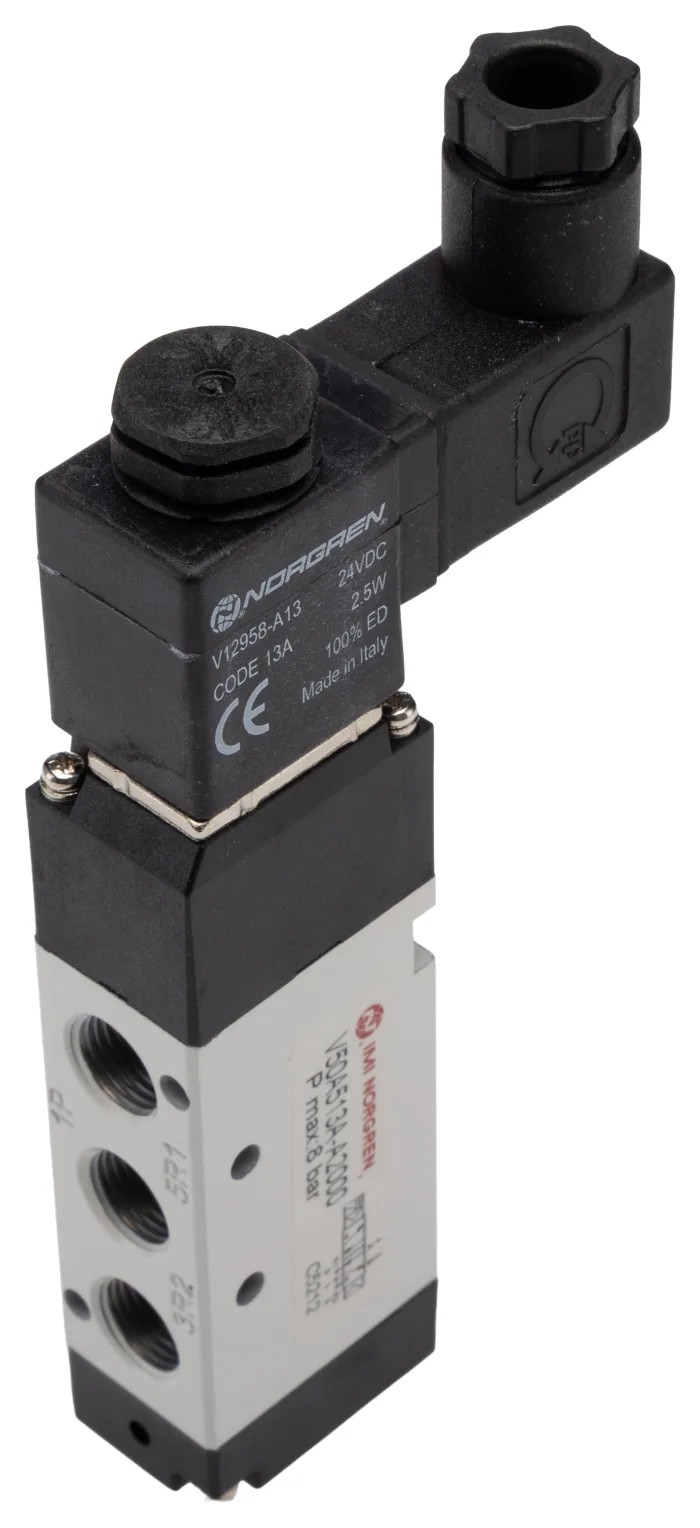

RS PRO Pneumatic Solenoid Valve 5/2 Solenoid Air G 1/8 Port, Die Cast Aluminium Body, 24 V DC, 2.9 W Power 907-6374
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | RS PRO |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 8 bar |
| Height | 54mm |
| Length | 110mm |
| Model | 907-6374 |
| Width | 18mm |
| Mount Type | In-Line, Manifold |
| Series | RS PRO |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid/Air |
| Maximum Flow Rate | 480L/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 2bar |
| Valve Function | 5/2 |
| Electrical Connection Type | Plug Socket |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 2.9W |
Key Features
- Robust die cast aluminium body provides durability and corrosion resistance.
- Operates at a voltage of 24 V DC with low solenoid power consumption of 2.9 W.
- Features five ports and two positions for versatile pneumatic control.
- Maximum operating pressure of 8 bar with a flow rate of up to 480 L/min.
- Wide operating temperature range from -5°C to 50°C for various industrial environments.
- Supports both inline and manifold mounting configurations for installation flexibility.
- Equipped with a single solenoid type and soft-seal spool design to prevent leakage.
- Electrical connection via plug socket ensures ease of setup and maintenance.
Product Description
RS PRO 907-6374 Pneumatic Solenoid Valve 5/2 Solenoid Air G 1/8 Port, powered at 24 V DC and consuming 2.9 W, is designed for precise control of pneumatic circuits in industrial settings. Manufactured with a durable die cast aluminium body, this valve offers robustness and corrosion resistance suitable for extended service life.
The valve features a five-port configuration and operates with two distinct positions, making it suitable for various pneumatic fluid control tasks in manufacturing, HVAC systems, automation, and pneumatic tools. It supports both inline and manifold mounting, providing flexibility for integration into diverse pneumatic assemblies.
This model supports a maximum operating pressure of 8 bar and a maximum flow rate of 480 L/min, ensuring efficient air or gas flow management. The operating temperature range from -5°C to 50°C allows deployment in multiple environmental conditions. The valve uses a nitrile rubber (NBR) seal to guarantee a tight seal and reduce leakage, while the single solenoid actuator enables reliable electrical control via a standard plug socket connection.
Ideal for industrial, automation, laboratory, and pneumatic fluid power applications, this valve is RoHS compliant, manufactured in Germany, and incorporates energy-efficient solenoid technology for reduced power consumption and environmental impact.
Robust die cast aluminium construction ensures long-lasting durability. Five ports with female G 1/8 threaded connections compliant to standard specifications. Operates effectively within a -5°C to 50°C temperature range.
Single solenoid actuation type providing precise pneumatic control. Energy-efficient with low power consumption of 2.9 Watts at 24 V DC. Supports inline and manifold mounting configurations for versatile installation. Maximum flow capacity of 480 L/min at a pressure of 8 bar.
Soft-seal spool design minimizes air leakage, enhancing system efficiency. Plug socket electrical connection for easy integration and maintenance. Nitrile rubber seals suitable for various pneumatic media. Explore our range of industrial pneumatic valves and components at EnvMart for reliable and efficient fluid control solutions.
Explore more products in our Pneumatic Solenoid Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic solenoid valve is 8 bar.
This model has a maximum flow rate of 480 L/min.
It operates at a voltage of 24 V DC.
The operating temperature range is from -5°C to 50°C.
The body is made from die cast aluminium, and it features nitrile rubber seals.
This pneumatic solenoid valve features five ports.
It uses a single solenoid actuation type for control.
It supports both inline and manifold mounting configurations.
The port size is G 1/8 with female threaded connections.
The solenoid power consumption is 2.9 W.
Yes, it is RoHS compliant.
This valve is suitable for various pneumatic fluid control tasks in manufacturing, HVAC systems, automation, and pneumatic tools.
