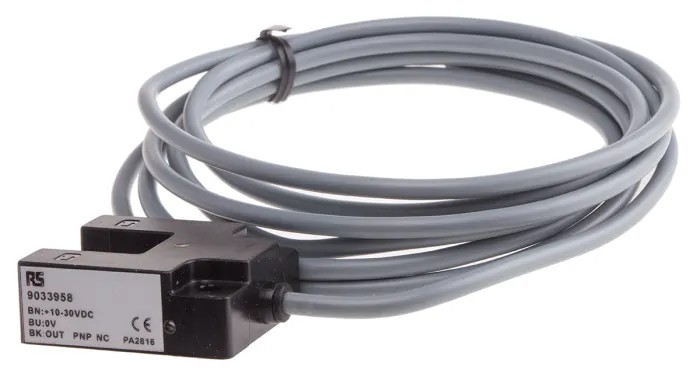

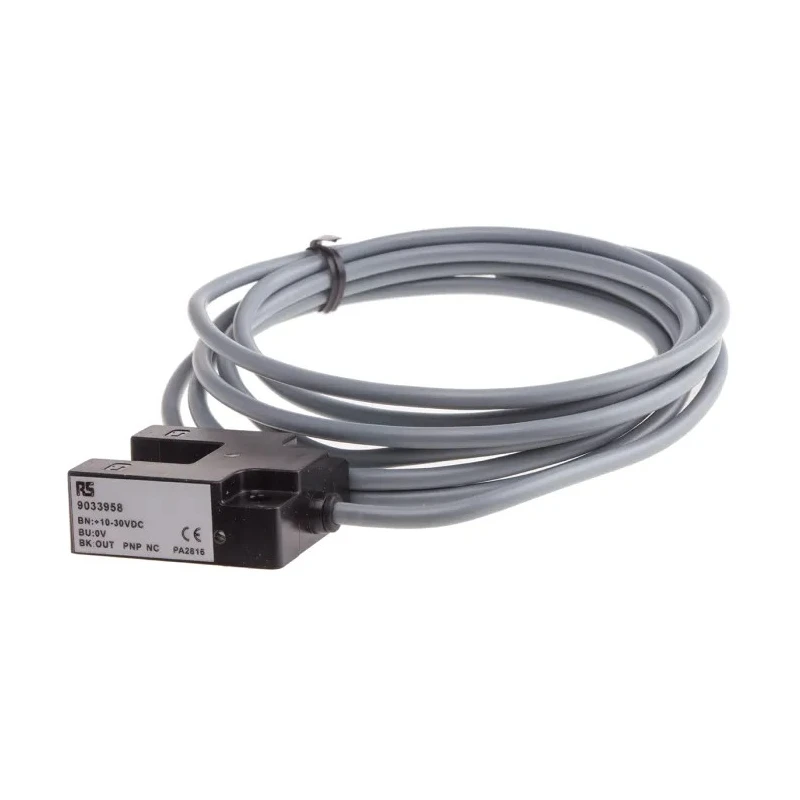

RS PRO Through Beam Photoelectric Sensor Fork Style, 15 mm Detection Range, PNP NC Output, IP64 Protection, Model 903-3958
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 1ms |
| Light Source | Infrared LED |
| Detection range | 15 mm |
| Model | 903-3958 |
| IP Rating | IP64 |
| Mount Type | Panel Mount |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP NC |
| Series | RS PRO |
| Protection Degree | IP65 (IEC) |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 15mA |
| DetectIon Type | Through Beam |
| Terminal type | Pre-Wired |
| Interface Type | NPN, PNP |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE, IEC |
| Materials Detected | Polybutylene Terephthalate |
| Sensor Style | Fork |
Key Features
- This sensor utilizes infrared LED light source for precise detection performance.
- Equipped with a robust Polybutylene Terephthalate housing and panel mount design.
- Features an IP64 protection rating ensuring resistance against dust and splashing water.
- Operates within a voltage rating up to 30V DC with a maximum current of 15mA.
- Offers quick 1 ms response time suitable for fast industrial automation systems.
- Includes reverse polarity and surge protection for enhanced durability.
- Built to operate reliably between -25°C to 55°C temperature range.
- Certified with CE and IEC standards, but not suitable for hazardous area applications.
Product Description
The RS PRO 903-3958 Through Beam Photoelectric Sensor is a high-precision fork-style sensor engineered for industrial automation and control equipment. Featuring a 15 mm detection range and PNP NC output, this sensor ensures reliable and accurate object positioning with a rapid 1 ms response time. Its infrared LED light source facilitates precise sensing of materials, particularly Polybutylene Terephthalate, making it suited for a variety of industrial applications.
Constructed with a durable Polybutylene Terephthalate housing and designed for panel mounting, this sensor offers an IP64 ingress protection rating, safeguarding against dust ingress and water splashes. It operates on a maximum DC voltage of 30 volts and supports currents up to 15 mA, ensuring compatibility with diverse industrial control systems.
Its operating temperature range of -25°C to 55°C allows it to function effectively in various environments, including manufacturing lines, packaging equipment, and automation setups requiring fast and accurate sensing.
The sensor complies with CE and IEC standards, providing assurance of quality and safety, while excluding hazardous area certifications. This sensor features an infrared LED light source for accurate detection. Robust Polybutylene Terephthalate housing material ensures durability.
Provides IP64 protection degree for industrial environment resilience. Fast response time of 1 ms optimizes automation efficiency. Designed for panel mounting for secure and stable installation. Supports operating temperatures from -25°C to 55°C.
Equipped with reverse polarity and surge protection for reliability. Compliant with CE and IEC standards.
Typical industrial use cases include automation control systems, manufacturing equipment, packaging machinery, and quality control processes where precise object detection at short distances is necessary.
For additional technical documents and certifications, relevant supporting materials are available. Explore the Electronics & Electricals category to find complementary sensors and control gear that integrate with the RS PRO 903-3958 sensor to enhance your industrial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO 903-3958 has a detection range of 15 mm, making it suitable for precise object positioning in industrial applications.
This unit features a PNP NC output, which is commonly used in industrial automation systems for reliable signaling.
It operates with a maximum DC voltage of 30 volts, ensuring compatibility with various industrial control systems.
The sensor has a rapid response time of 1 ms, optimizing its performance for fast industrial automation tasks.
This model is designed to detect materials made of Polybutylene Terephthalate, suitable for specific industrial applications.
It has an IP64 protection rating, providing resistance against dust ingress and splashing water, making it suitable for industrial environments.
The sensor operates effectively within a temperature range of -25°C to 55°C, accommodating various environmental conditions.
This model is designed for panel mounting, ensuring a secure and stable installation in industrial settings.
It utilizes an infrared LED light source, which enhances its detection performance for industrial applications.
Yes, it is equipped with reverse polarity and surge protection, enhancing its reliability in industrial environments.
This sensor is certified with CE and IEC standards, ensuring it meets quality and safety requirements for industrial use.
The RS PRO 903-3958 features a pre-wired terminal type, facilitating easier installation and integration into existing systems.
