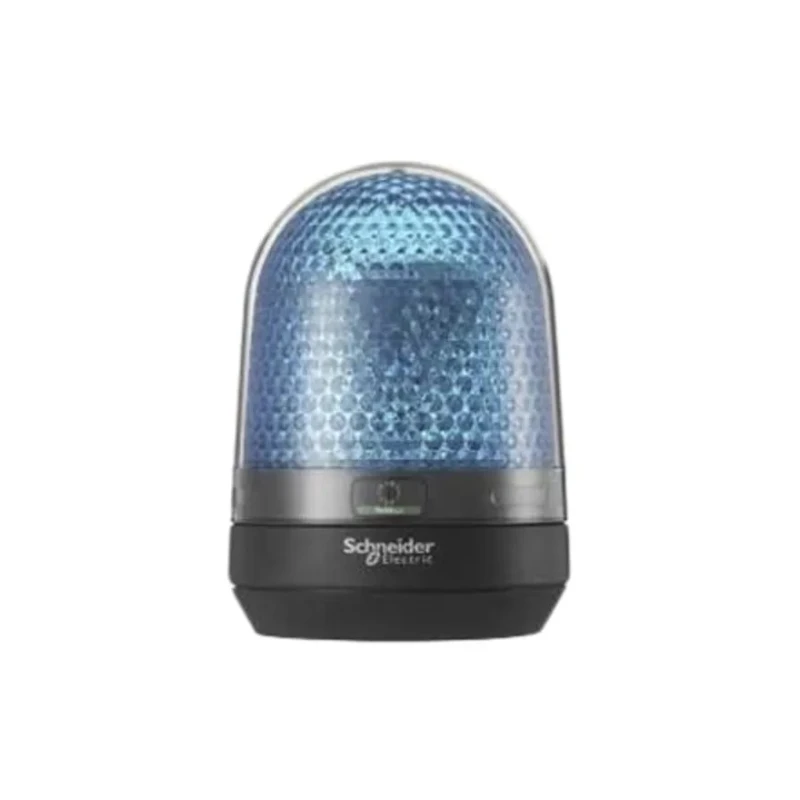

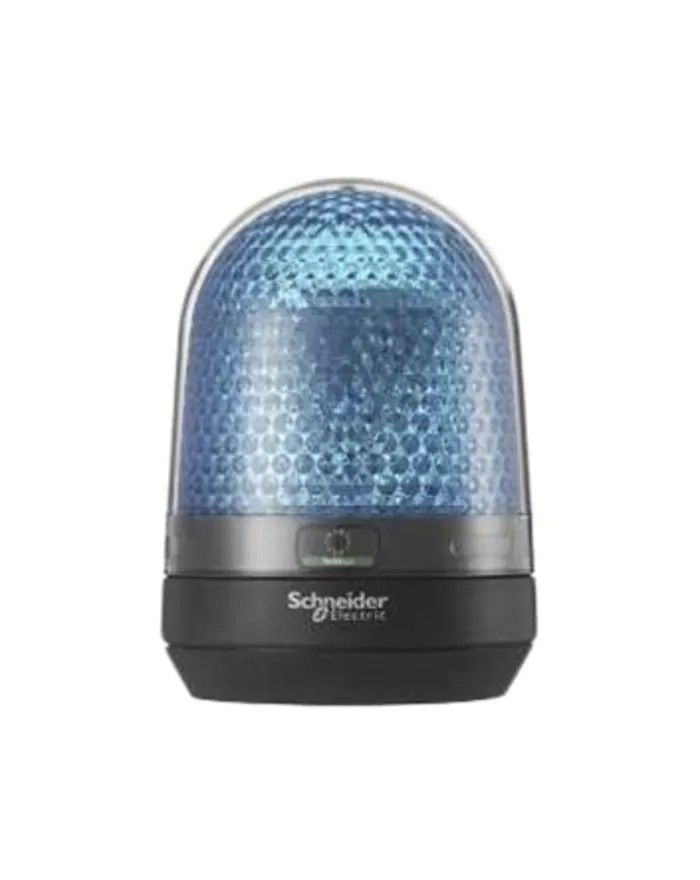

Schneider Electric Harmony XVR Series Blue Beacon 24V DC Flashing, Rotating Base, LED Bulb, IP23, IP65 XVR3B06

Schneider Electric XVR3B06 Harmony XVR Series Blue Beacon is a multifunctional visual signaling device operating at 24V DC. Designed for industrial and public safety applications, this beacon combines flashing and rotating light effects through a motor-less LED bulb for enhanced durability and low maintenance.

The beacon features a distinctive faceted blue lens that increases the lighting spread, making it effective in factory environments, construction vehicles, and public areas. Its integrated rubber base ensures flexible installation options with straightforward wiring, supporting both straight and side wiring configurations without requiring tools.

The housing is built from high-quality materials including Ethylene Propylene Diene Monomer (EPDM), Polybutylene Terephthalate (PBT), and Polycarbonate to provide ruggedness and environmental resistance. It incorporates high vibration resistance rated at 7.1G and meets Class II safety requirements for electrical installations.

The unit operates reliably within a temperature range of -20°C to +50°C and holds an IP rating of IP23 or up to IP65 depending on the buzzer option, which offers protection against dust and water ingress for harsh industrial environments.

With 10 selectable lighting modes that include flashing, rotating, and blinking LEDs, the beacon provides versatile signaling options tailored to different industrial needs. The base mounting with a 100mm diameter ensures a stable and secure fixture in varied applications.

Employs motor-less LED technology for longer life and maintenance-free operation. Features 10 lighting modes with flashing, rotating, and blinking effects. Equipped with a faceted blue lens that extends the lighting area for better visibility.

Integrated rubber base allows straight and side wiring installation without tools. Wide operating temperature range from -20°C to +50°C ensuring reliable performance. Housing made from Ethylene Propylene Diene Monomer, Polybutylene Terephthalate, and Polycarbonate materials.

High vibration resistance of 7.1G for durable industrial usage. Compliance with Class II electrical safety standards. IP23 and IP65 rated protection against environmental elements. Suitable for industrial, construction, and public safety signaling applications.

This beacon is ideal for industrial, manufacturing, construction, and public safety uses where reliable visual notification is critical. Schneider Electric’s Harmony XVR Series is recognized for its innovative design, including the Red Dot industrial design award, combining functional performance with aesthetic appeal.
