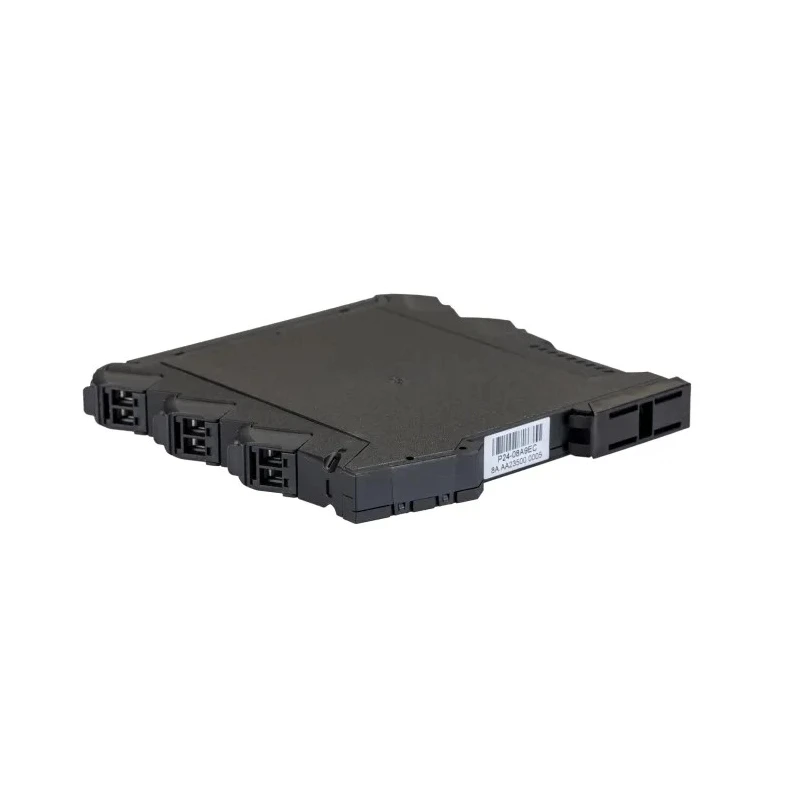

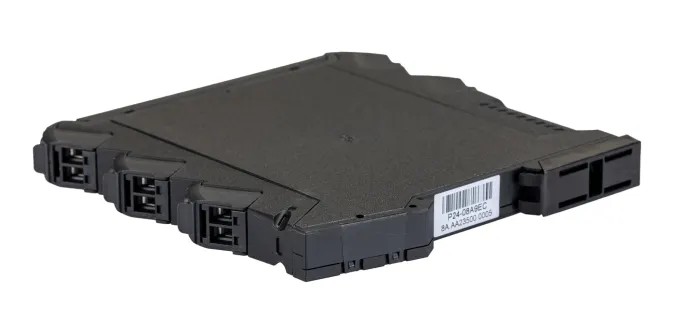

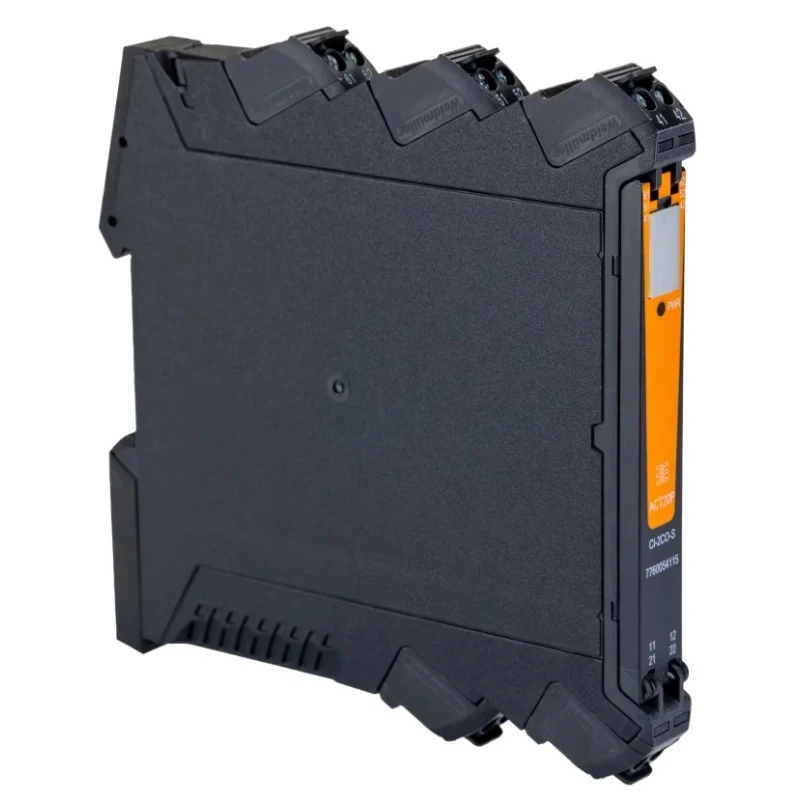

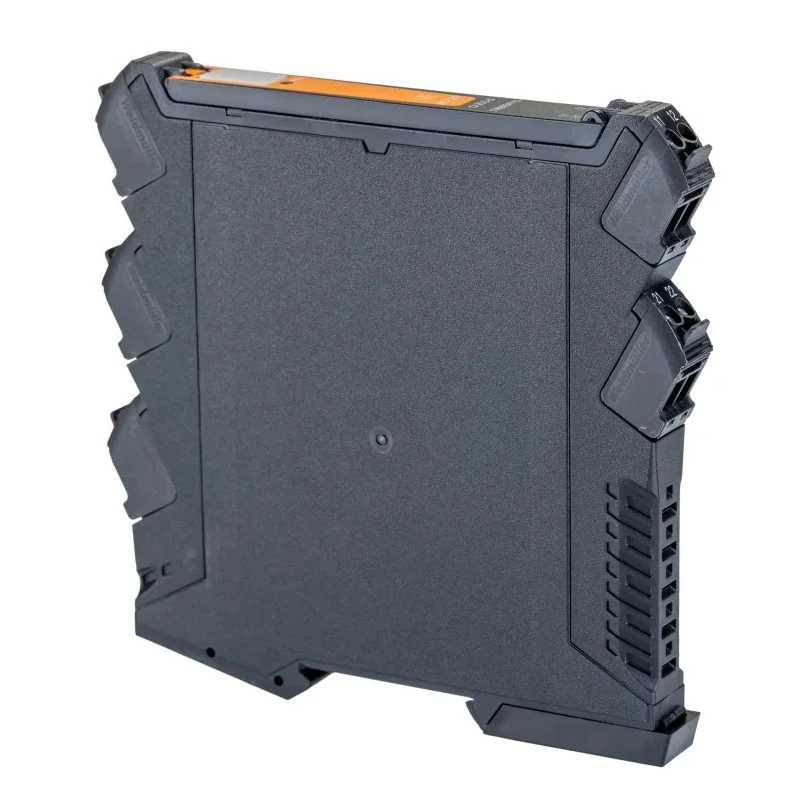

Weidmüller Signal Conditioner Current Input Current Output 20V dc 30V dc Supply ATEX IECEx ACT20P

Weidmüller ACT20P Signal Conditioner is a robust industrial-grade device engineered for converting and isolating DC current signals with high accuracy. It operates with a supply voltage of 20 V dc and 30 V dc and supports input and output current ranges of 0 to 20 mA and 4 to 20 mA. This makes it ideal for precise signal conditioning in electrical control panels and automation systems.

The device features 3 way galvanic isolation that enhances electrical safety and isolates different sections of a control system to prevent ground loops and interference. Its DIN rail mounting format allows for quick installation and space-efficient panel layouts. The screw terminal connections ensure secure and reliable wiring in industrial environments.

Designed to operate in harsh conditions, the ACT20P can withstand ambient temperatures from -20°C up to +60°C, supporting reliable performance in diverse settings. With certifications including ATEX and IECEx, it is certified safe for use in hazardous area zone 2 applications commonly found in manufacturing, process industries, and automation sectors.

The signal conditioner delivers a step response time of less than 5 ms, enabling fast and accurate signal processing necessary for critical industrial applications. It meets international standards cULus and EAC assuring compliance with stringent quality and safety requirements.

Features 4 to 20 mA input current range for operational versatility. Outputs standard current signals supporting 0 to 20 mA or 4 to 20 mA ranges. Compact DIN rail mount form factor for easy panel integration. 3 way galvanic isolation for electrical safety and interference rejection.

Wide operating temperature range from -20°C to +60°C. Screw terminal type for secure wiring connections. Certified ATEX and IECEx for hazardous area applications. Complies with cULus and EAC international standards. Fast step response time within 5 milliseconds.

Compatible with 2-/3-wire transmitters ensuring device compatibility.

This Signal Conditioner is ideally suited for automation systems, industrial machinery, process controls, and electrical equipment requiring precise and reliable signal conversion and isolation. It ensures that sensitive measurement data can be accurately transmitted and conditioned even in demanding industrial environments.
