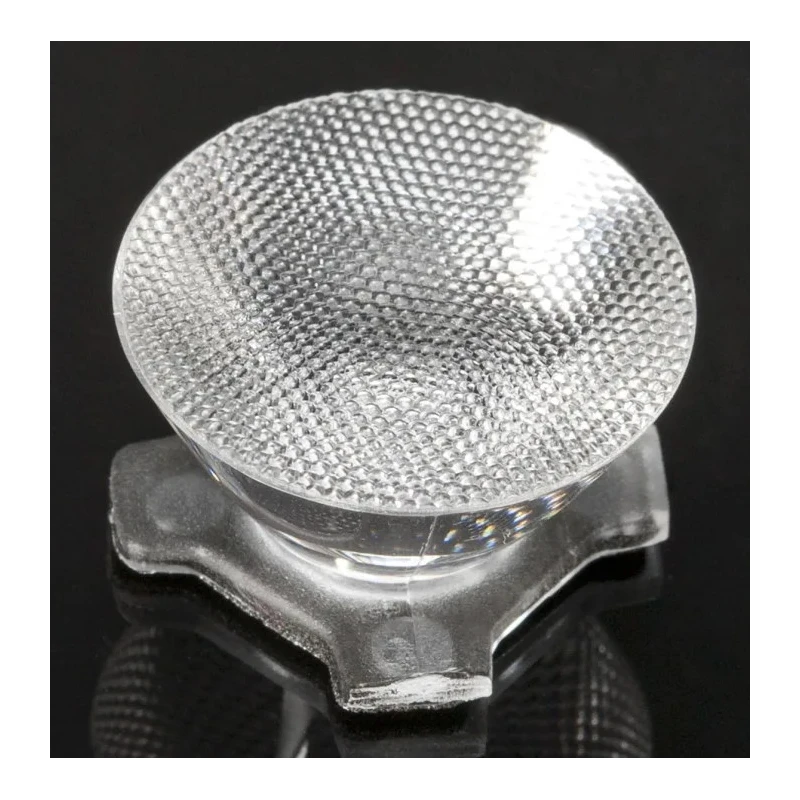

Ledil Heidi Series 1-Way LED Lens 32 to 33° Round Beam CA12538_HEIDI-W

Ledil CA12538_HEIDI-W is a high-quality 1-Way LED Lens from the Heidi Series, engineered to deliver a precise 32 to 33° round beam angle through an advanced polymethyl methacrylate (PMMA) lens. This lens is optimized for single LED light sources, providing uniform and controlled light distribution while maintaining high optical clarity and resistance to UV and thermal stress.

The lens measures 21.6 mm in diameter and 11.7 mm in height, making it ideal for integration with popular LEDs such as Cree XLamp XP-L, OSRAM OSLON SSL 150, and various Lumileds LUXEON models including Rebel, Rebel ES, R, and AD series. The lens is secured using a pin fixing method ensuring stable installation within lighting assemblies.

Manufactured with optical grade PMMA, the Heidi Series lenses offer durability and consistent performance in demanding LED lighting applications. The range includes various beam angle options and emission patterns, but this particular lens focuses light into a uniform round beam, making it suitable for high-precision lighting tasks in industrial, electronic component manufacturing, and commercial LED lighting product lines.

The compact dimensions and robust build quality of this lens ensure compatibility and longevity in diverse use cases including electronic components assemblies, LED lighting units, and specialized illumination fixtures requiring a focused beam output.

The lens is made in China and is new in condition, conforming to technical requirements though no specific standards or approvals are listed. Users are advised to consult LED manufacturers for compatibility and detailed photometric data, as viewing angles may vary with LED chip size and placement.

Suitable for single LED usage with a diameter of 21.6 mm and height of 11.7 mm. Emission pattern produces a round beam with a viewing angle between 32 and 33 degrees. Lens fixing method employs pins for secure mounting. Compatible with Cree XLamp XP-L, OSRAM OSLON SSL 150, and Lumileds LUXEON series LEDs.

Crafted from optical grade PMMA providing high UV and temperature resistance. Designed for industrial, electronic, and LED lighting applications requiring focused light distribution. Explore the Ledil Heidi Series within EnvMart's LED Lenses & Reflectors category for comprehensive solutions tailored to precision LED optics.
