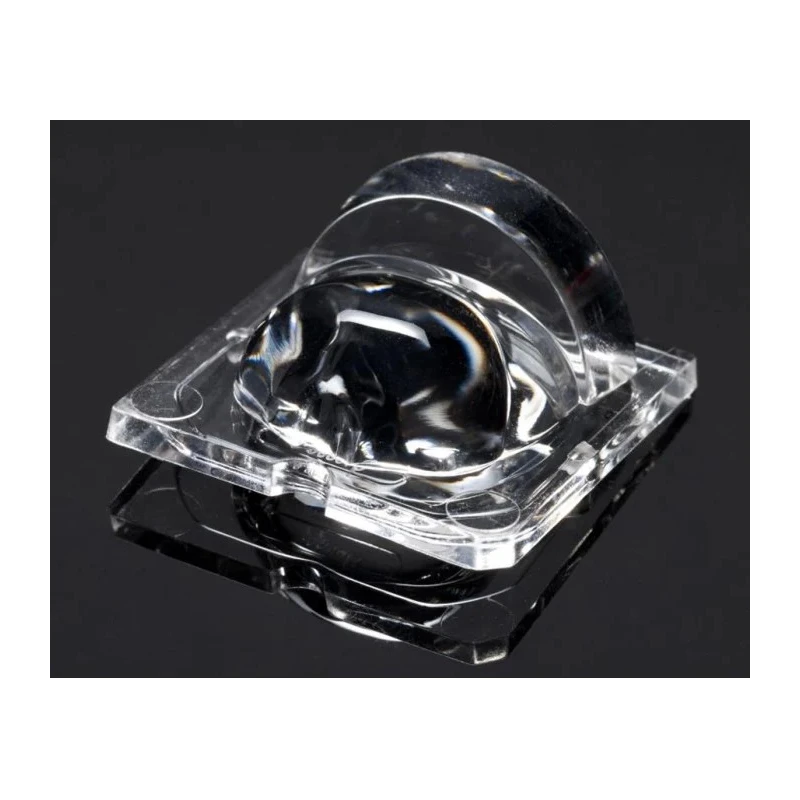

Ledil Strada-SQ Series LED Lens Asymmetric Square Beam CA13897_STRADA-SQ-FS
Specifications
| Country of Origin | China |
|---|---|
| Brand | Ledil |
| Height | 12.6mm |
| Length | 25mm |
| Model | CA13897_STRADA-SQ-FS |
| Width | 25mm |
| Series | Strada-SQ |
| Viewing angle | Asymmetric |
| Lens Material | Polymethyl Methacrylate |
| For Use With | Lumileds LUXEON MZ, Cree MHB-A, Cree XM-L, Cree XP-L, Cree XT-E, Cree XHP70, Lumileds LUXEON M, Cree MK-R, Cree XHP50 |
| Lens Shape | Square |
| Emission Pattern | Square |
| Fixing Method | Pin |
Key Features
- The lens belongs to the Strada-SQ Series optimized for high bay and street light solutions.
- It has a compact 25 x 25 mm footprint allowing interchangeability with other series lenses.
- Constructed from optical grade Polymethyl Methacrylate (PMMA) material with high UV and temperature resistance.
- Designed for compatibility with Lumileds LUXEON and Cree LED variants to maximize optical efficiency.
- Mounting is facilitated by a pin fixing method for ease of installation.
- The lens produces an asymmetric viewing angle tailored to enhance tunnel and street illumination uniformity.
- It measures 25 mm in length, 25 mm in width, and 12.6 mm in height.
- Manufactured in China with no formal standards or approvals specified.
Product Description
Ledil CA13897_STRADA-SQ-FS is a high-quality LED lens designed for asymmetric square beam light distribution primarily used in street and tunnel lighting applications. It is part of the Strada-SQ Series known for their consistent 25 x 25 mm footprint that allows easy interchangeability without redesigning fixture housings.
Manufactured from optical grade Polymethyl Methacrylate (PMMA), this lens offers superior UV resistance and thermal stability, ensuring durability in diverse outdoor environments. Its asymmetric emission pattern is engineered to suit applications requiring directional light control, such as highways, tunnel interiors, and high bay settings in warehouses.
The lens supports a wide range of popular LED chips including Lumileds LUXEON MZ, Cree MHB-A, XM-L series, XP-L, XT-E, XHP70, MK-R, and XHP50 models, providing designers the flexibility to optimize optical performance.
Installation is simplified by a pin fixing method, enabling secure and precise mounting. The compact 12.6 mm height and square 25 mm dimensions make it ideal for streamlined luminaire designs where space constraints exist.
As part of LEDiL’s street lighting lens family, the CA13897_STRADA-SQ-FS excels in providing even illumination with minimized glare and optimized beam control for enhanced safety and energy efficiency in industrial, commercial, and public infrastructure lighting projects.
The lens belongs to the Strada-SQ Series optimized for street lighting and high bay applications. Compact 25 x 25 mm footprint ensures compatibility and easy replacement. Constructed from optical grade PMMA for durability and resistance to UV and heat.
Asymmetric square emission pattern designed for directional illumination needs. Compatible with leading LED chips from Lumileds and Cree for optimal optical performance. Pin fixing installation method offers secure and efficient mounting.
Measures 25 mm length, 25 mm width, and 12.6 mm height suitable for compact fixture designs.
This LED lens is a suitable choice for engineering reliable, high-performance lighting in street, tunnel, and warehouse environments, supporting industrial and public infrastructure sectors. Browse more LED Lenses & Reflectors at EnvMart for compatible lighting solutions.
Explore more products in our LED Lenses & Reflectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The lens features an asymmetric viewing angle, designed to enhance illumination uniformity for applications such as street and tunnel lighting.
This lens measures 25 mm in length, 25 mm in width, and 12.6 mm in height, making it suitable for compact fixture designs.
The lens is constructed from optical grade Polymethyl Methacrylate (PMMA), which provides high UV and temperature resistance.
It is compatible with a variety of LED chips including Lumileds LUXEON MZ, Cree MHB-A, XM-L, XP-L, XT-E, XHP70, MK-R, and XHP50 models.
The lens utilizes a pin fixing method for secure and efficient mounting during installation.
The lens produces a square emission pattern, specifically designed for directional illumination needs.
It belongs to the Strada-SQ Series, which is optimized for street lighting and high bay applications.
This lens is manufactured in China.
This lens is suitable for applications in street lighting, tunnel interiors, and high bay settings in warehouses.
The compact 25 x 25 mm footprint allows for easy interchangeability with other series lenses without redesigning fixture housings.
The asymmetric beam is engineered to provide directional light control, enhancing safety and energy efficiency in various lighting projects.
The lens is square in shape, designed to align with its emission pattern and application requirements.
