SMC Twist Selector Pneumatic Manual Control Valve VM200 Series G 1/4 Rc, NPT Thread, 3 Position, 5 Ports VM250-F02-35BA

Free Delivery in India | Lowest Global Shipping Charges

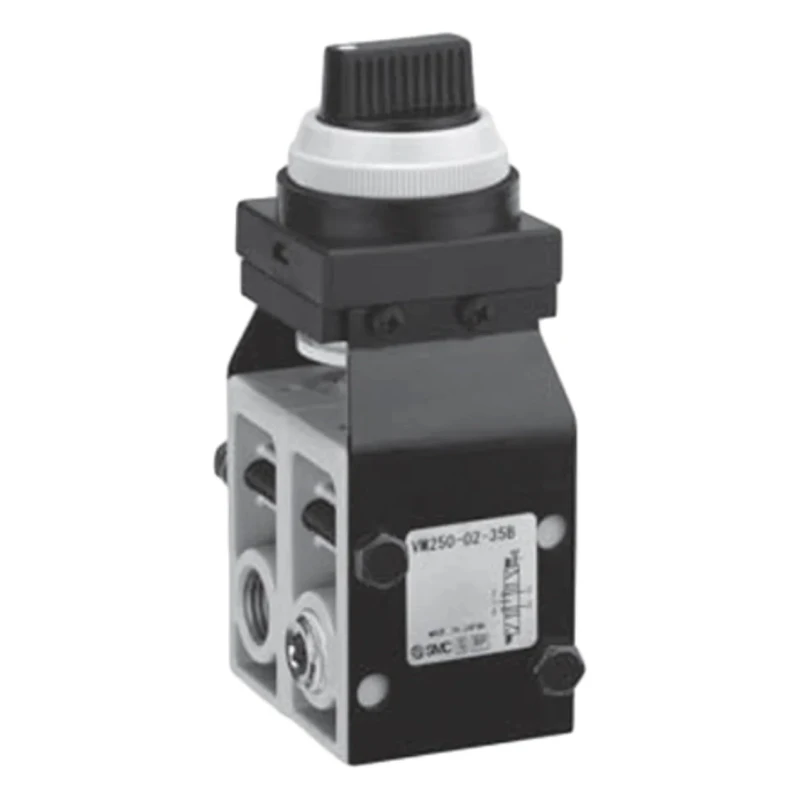

SMC Twist Selector Pneumatic Manual Control Valve VM200 Series G 1/4 Rc, NPT Thread, 3 Position, 5 Ports VM250-F02-35BA



Category Pneumatic Manual Control Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Zinc Die Cast Alloy
Maximum Operating Pressure	1 Mpa
Model	VM250-F02-35BA
Series	VM200
Number Of Ports	5
Maximum Operating Temperature	+60°C
Thread Size	1/4
Number of Positions	3
Port Size	G 1/4
Minimum Operating Temperature	-5°C
Maximum Flow Rate	1088L/min
Control Mechanism	Twist Selector (3 Position)
Connection Thread Standard	Rc, NPT
Valve Function	Pneumatic Relay
Control Button/Switch Colour	Black
2/3 Port Mechanical ValveBrand	SMC
SMC Twist Selector Mechanical Valve VM200 Series, G 1/4, 1/4Brand	SMC

Key Features

The valve features a three-position twist selector mechanism for precise airflow control.
It supports a maximum operating pressure of 1 MPa and a maximum flow rate of 1088 L/min.
The connection thread standards are Rc and NPT with a port size of G 1/4 and 5-port configuration.
The body is made from durable zinc die cast alloy ensuring long-lasting use.
Designed for air and inert gases, it operates safely within -5 °C to +60 °C temperature range.
The valve includes a mechanical spring return to guarantee responsive and reliable operation.
It is optimized for pneumatic relay functions, suitable for industrial automation and precise movement control.

Product Description

SMC VM250-F02-35BA is a premium pneumatic manual control valve from the VM200 series featuring a three-position twist selector control mechanism for accurate regulation of airflow in pneumatic systems. It combines durable zinc die cast alloy construction with robust mechanical design to provide reliable operation in demanding industrial environments.

This valve accommodates 1/4 inch thread size ports with Rc and NPT standards and includes five ports for versatile connectivity options. The valve supports a maximum operating pressure of 1 MPa and a flow rate of up to 1088 liters per minute, making it ideal for efficient air or inert gas control in automation systems.

The operating temperature range spans from -5 °C to +60 °C, enabling use in diverse industrial settings without performance loss. Direct piloting and mechanical spring return features ensure responsive actuation and consistent valve positioning for reliable pneumatic relay operation.

Typical applications include pneumatic control systems for industrial automation, machinery air management, robotic motion control, and assembly line production enhancements. Its twist selector enables simplified user control across three distinct positions, ensuring precise adjustment in complex pneumatic circuits.

The valve features a three-position twist selector mechanism for precise airflow control. It supports a maximum operating pressure of 1 MPa and a maximum flow rate of 1088 L/min. The connection thread standards are Rc and NPT with a port size of G 1/4 and 5-port configuration.

The body is made from durable zinc die cast alloy ensuring long-lasting use. Designed for air and inert gases, it operates safely within -5 °C to +60 °C temperature range. The valve includes a mechanical spring return to guarantee responsive and reliable operation.

It is optimized for pneumatic relay functions, suitable for industrial automation and precise movement control.

SMC pneumatic valves are known for their robustness and reliability, integrating seamlessly in various industrial, manufacturing, laboratory, and HVAC applications. Explore the growing catalog of Pneumatic Manual Control Valves and related SMC products on EnvMart for quality and performance assurance.
