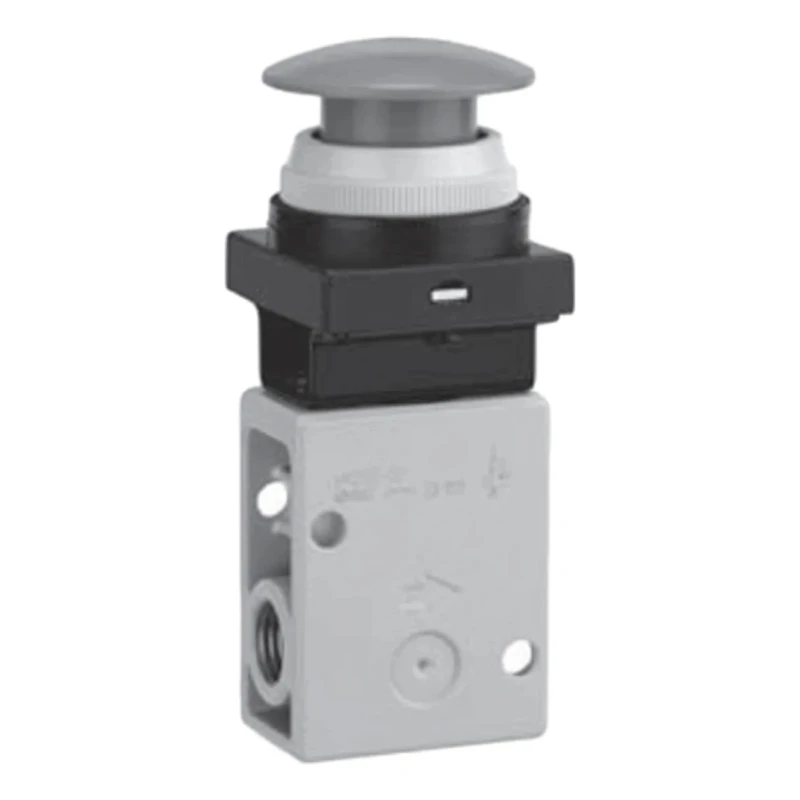

SMC Push Button Mushroom Pneumatic Manual Control Valve VM200 Series, R 1/4, 1 MPa, 1088 L/min, Black VM230-02-30BA



Category Pneumatic Manual Control Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	1 Mpa
Model	VM230-02-30BA
Series	VM200
Number Of Ports	3
Maximum Operating Temperature	+60°C
Thread Size	1/4
Number of Positions	2
Port Size	R 1/4
Minimum Operating Temperature	-5°C
Maximum Flow Rate	1088L/min
Control Mechanism	Push Button (Mushroom)
Connection Thread Standard	R
Valve Function	Pneumatic Relay
Control Button/Switch Colour	Black

Key Features

Constructed for high flow rate applications with a maximum flow of 1088 L/min.
Operates at a maximum pressure of 1 MPa suitable for demanding pneumatic controls.
Features a black push button mushroom control button for clear identification.
Supports 3 ports and 2 positions for versatile pneumatic relay functions.
Engineered to withstand operating temperatures from -5°C to +60°C.
Offers R 1/4 port size with R connection thread standard for compatibility.
Suitable for use in pneumatic control panels and position confirmation systems.

Product Description

SMC VM230-02-30BA push button mushroom Pneumatic Manual Control Valve from the VM200 series features a robust construction designed to deliver large flow capacity and resist harsh industrial environments. It is equipped with a black mushroom-style push button to enable effective pneumatic relay control with 3 ports and 2 positions. The valve supports vacuum applications and can be mounted on the side or bottom, providing flexibility in installation.

This pneumatic control valve is engineered to operate safely within a wide ambient temperature range of -5°C to +60°C and supports a maximum operating pressure of 1 MPa. The 1/4-inch R-threaded port size provides industry-standard connectivity, making it ideal for integration in pneumatic control panels used in manufacturing, automation, and factory automation applications.

The large maximum flow rate of 1088 L/min ensures efficient pneumatic signal control for workpiece positioning and other pneumatic relay functions. Constructed with a poppet type valve mechanism, the VM230-02-30BA assures durability and reliable switching performance in demanding industrial, laboratory, and HVAC pneumatic systems.

Additional product features include the VM200 series designation, no specific standards or approvals, and country of origin: Japan. It is designed for new installation and replacement in industrial pneumatic valve setups.

Max Flow Rate: 1088 L/min. Max Operating Pressure: 1 MPa. Temperature Range: -5°C to +60°C. 3 Ports, 2 Positions Pneumatic Relay Valve. Black Push Button Mushroom Control.

This product enhances pneumatic control efficiency and is suitable for industrial, laboratory, HVAC, and automation manufacturing environments. Explore more pneumatic valves and control components in the Industrial Valves category at EnvMart.
