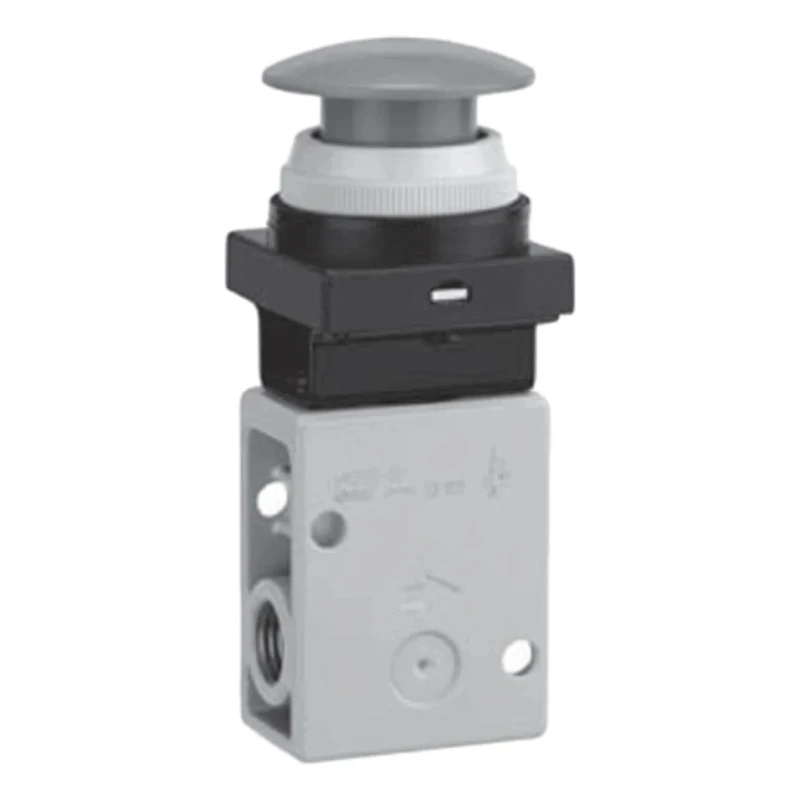

SMC Pneumatic Manual Control Valve Push Button (Mushroom) VM200 Series Rc, NPT R 1/4, 1 MPa, Zinc Die Cast VM230-02-30RA



Category Pneumatic Manual Control Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Zinc Die Cast Alloy
Maximum Operating Pressure	1 Mpa
Model	VM230-02-30RA
Series	VM200
Number Of Ports	3
Maximum Operating Temperature	+60°C
Thread Size	1/4
Port Type	Side, Bottom
Number of Positions	2
Port Size	R 1/4
Minimum Operating Temperature	-5°C
Maximum Flow Rate	1088L/min
Control Mechanism	Push Button (Mushroom)
Connection Thread Standard	Rc, NPT
Valve Function	Pneumatic Relay
Control Button/Switch Colour	Red

Key Features

Constructed with zinc die cast alloy body for high durability.
Features push button (mushroom) control mechanism with red button color for easy identification.
Supports maximum operating pressure up to 1 MPa.
Equipped with Rc and NPT R 1/4 inch connection thread standards and side/bottom port types.
Offers a maximum flow rate of 1088 L/min suitable for diverse pneumatic systems.
Operates within a temperature range of -5°C to +60°C.
Comprises 3 ports and 2 positions with pneumatic relay valve function.
Suitable for vacuum applications and available with mounting options on side or bottom.

Product Description

SMC VM230-02-30RA Pneumatic Manual Control Valve Push Button (Mushroom) from the VM200 Series features a zinc die cast alloy body engineered for durability in industrial pneumatic systems. This valve provides a robust solution for manual pneumatic control with a conveniently colored red mushroom push button for quick visual identification in control panels.

The valve supports a maximum operating pressure of 1 MPa and a substantial flow rate up to 1088 L/min, making it ideal for demanding pneumatic operations. Connection options include Rc and NPT R 1/4 inch thread standards with both side and bottom port placements, enhancing installation flexibility.

Designed to operate reliably within temperature ranges from -5°C to +60°C, this valve incorporates a pneumatic relay function with 3 ports and 2 positions, suitable for controlling air flow and pneumatic signals. Its poppet type construction aids in vacuum applications and extends operational versatility.

Available mounting options on side or bottom support various panel and system configurations. Originating from Japan, the VM230-02-30RA meets industrial expectations for quality pneumatic valve components.

Constructed with zinc die cast alloy body for high durability. Features push button (mushroom) control mechanism with red button color for easy identification. Supports maximum operating pressure up to 1 MPa. Equipped with Rc and NPT R 1/4 inch connection thread standards and side/bottom port types.

Offers a maximum flow rate of 1088 L/min suitable for diverse pneumatic systems. Operates within a temperature range of -5°C to +60°C. Comprises 3 ports and 2 positions with pneumatic relay valve function. Suitable for vacuum applications and available with side or bottom mounting options.

Manufactured in Japan ensuring quality and reliability.

This valve is suited for use in industrial pneumatic systems, mechanical fluid power, automation control panels, and manufacturing setups requiring manual pneumatic valve control. Browse more Pneumatic Manual Control Valves and related pneumatic valves on EnvMart for a comprehensive industrial valve solution.
