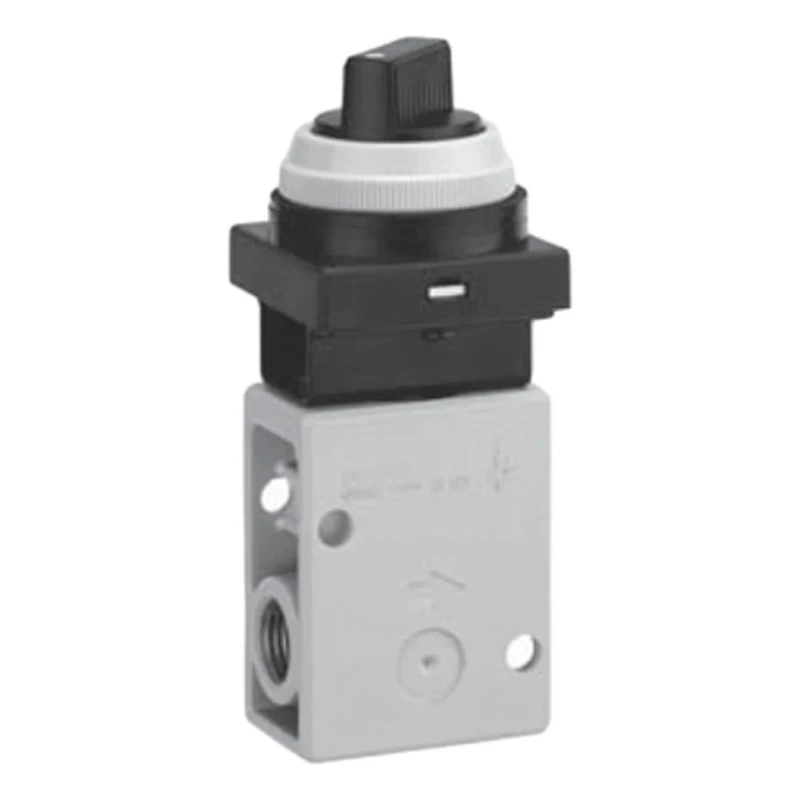

SMC Pneumatic Manual Control Valve Twist Selector 2 Position VM230-02-34GA

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Manual Control Valve Twist Selector 2 Position VM230-02-34GA



Category Pneumatic Manual Control Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	1 Mpa
Height	102.1mm
Length	40mm
Model	VM230-02-34GA
Width	25mm
Series	VM200
Number Of Ports	3
Maximum Operating Temperature	+60°C
Thread Size	1/4
Number of Positions	2
Port Size	R 1/4
Minimum Operating Temperature	-5°C
Maximum Flow Rate	1088L/min
Control Mechanism	Twist Selector (2 Position)
Connection Thread Standard	R
Valve Function	Pneumatic Relay
Control Button/Switch Colour	Green

Key Features

The valve uses a twist selector control mechanism with two positions.
It features an R 1/4 connection thread standard compatible with pneumatic systems.
Maximum operating pressure is 1 Mpa, suitable for industrial pneumatic applications.
It operates between temperatures of -5°C and +60°C, supporting reliable performance.
The valve is constructed as a 3-port, 2-position poppet type with green control button.
Its compact dimensions of 102.1 mm height, 40 mm length, and 25 mm width fit varied setups.
Designed for side or bottom mounting, ideal for pneumatic control panels and workpiece position confirmation.
Manufactured in Japan to maintain quality standards and durability.

Product Description

SMC VM230-02-34GA is a pneumatic manual control valve from the VM200 series featuring a twist selector with two positions, designed for precise pneumatic relay control with a maximum flow rate of 1088 L/min. It operates at pressures up to 1 Mpa and supports temperatures ranging from -5°C to +60°C, ensuring robust functionality within typical industrial pneumatic environments.

This 3-port, 2-position valve utilizes a poppet type construction and is equipped with an R 1/4 connection thread standard compatible with pneumatic systems. The valve features a green control button and is suitable for both side and bottom mounting, making it adaptable to various pneumatic control panel designs.

The compact and durable design with dimensions of 102.1 mm height, 40 mm length, and 25 mm width enables installation in confined spaces. Its ability to withstand harsh conditions and confirm workpiece positioning through pneumatic signals makes it ideal for industrial, manufacturing, hydraulic, and automation applications.

Manufactured in Japan, the VM230-02-34GA meets strict quality and performance criteria despite the lack of specific standards/approvals. It is suited for use in industrial, laboratory, and HVAC pneumatic systems, enhancing control reliability.

The valve offers twist selector pneumatic manual control with 2 selectable positions. It accommodates R 1/4 size ports using R thread standard connections. Supports maximum operating pressure of 1 Mpa for demanding applications.

Operates reliably between -5°C and +60°C operating temperatures. Compact dimensions facilitate mounting flexibility in control panels. The unit includes a green control button for clear operation indication. Designed as a 3-port valve with a poppet type construction for performance.

Manufactured in Japan for assured build quality and longevity.

This SMC Pneumatic Manual Control Valve is essential for pneumatic control panels, automation equipment, and industrial processes requiring reliable position confirmation and pneumatic relay functions. Explore EnvMart’s pneumatic valve range to find complementary components for efficient system integration.
