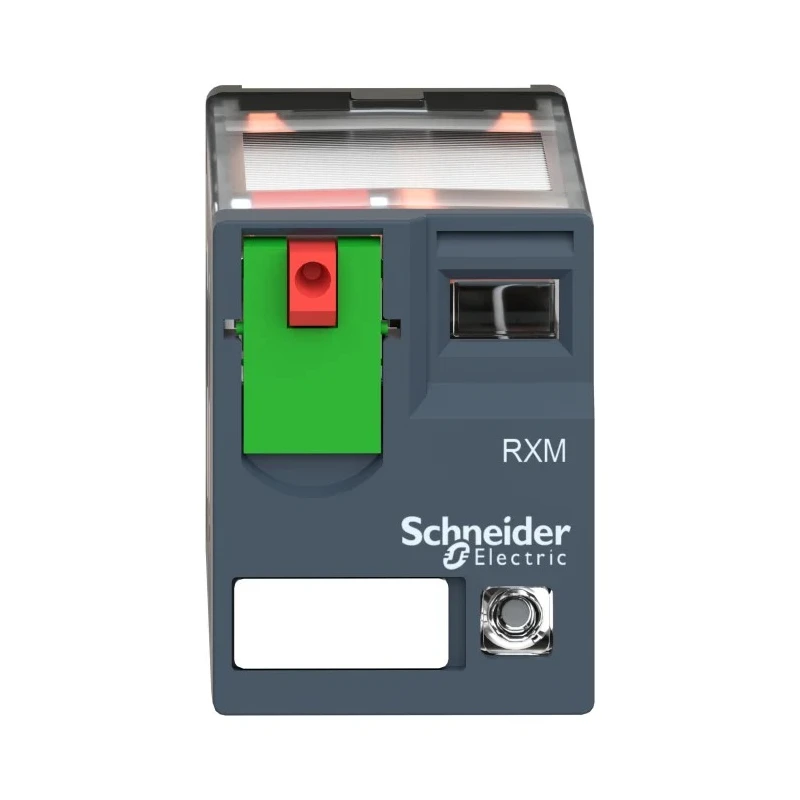

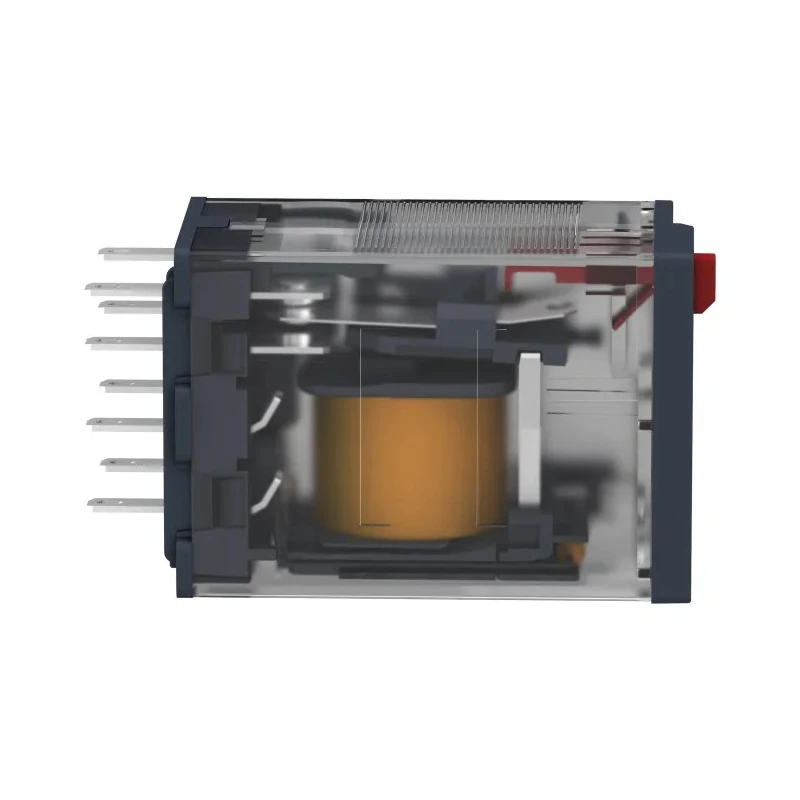

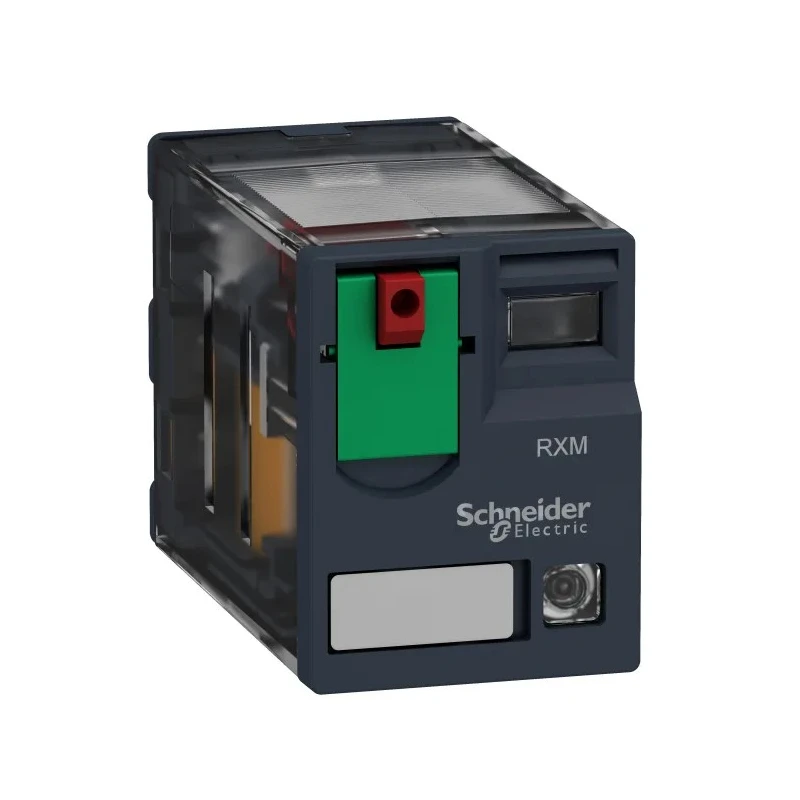

Schneider Electric Power Relay 24V AC Coil 12A Switching Current DPDT RXM2AB2B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM2AB2B7 |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 180Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- Compact miniature relay with a plug-in terminal type for easy installation.
- Operates efficiently at coil power of 1.2W with coil resistance of 180Ω.
- Supports switching AC voltage up to 250V AC with a switching current of 12A.
- Designed for industrial environments with operating temperature range from -40°C to 55°C.
- Silver alloy contact material ensures high conductivity and durability.
- Complies with CE and CSA standards for safety and quality assurance.
Product Description
Schneider Electric RXM2AB2B7 power relay is a compact and robust miniature relay with a 24V AC coil and 12A switching current, designed primarily for industrial applications such as machine automation, building equipment, and HVAC systems.
This non-latching relay features a DPDT contact configuration, making it suitable for switching a variety of circuits. It is equipped with plug-in terminals for straightforward mounting and integration into existing systems. The relay coil operates at a power consumption of 1.2W with a coil resistance of 180Ω, providing energy efficiency in its operation.
The relay supports a maximum switching AC voltage of 250V and current up to 12A. It is engineered to perform reliably within a temperature range of -40°C to 55°C, allowing it to function in varied climatic conditions. Silver alloy contacts enhance electrical conductivity and extend service life, crucial for industrial reliability. The product meets CE and CSA safety standards, underscoring its quality and compliance with international norms.
With dimensions of 21mm in length, 47.7mm in width, and 27mm in height, this miniature relay is designed for compact installations, particularly in control panels and enclosures where space is limited. Its design incorporates both a mechanical status indicator and a test button to facilitate easy configuration and troubleshooting.
Compact and robust miniature relay with LED indicator and test button. Plug-in type terminals for easy and secure installation. Suitable for push-button applications and industrial switching. Wide operating temperature range from -40°C to 55°C.
High switching capacity of 12A at 250V AC. Silver alloy contacts for enhanced durability and conductivity. Certified to CE and CSA standards ensuring safety and reliability.
This power relay is ideal for industrial automation, HVAC equipment, building control systems, and manufacturing machinery where reliable switching is essential. Schneider Electric's Harmony Relay RXM series integrates seamlessly into various applications requiring efficient electrical switching components.
Explore a wide range of Power Relays and industrial electrical components at EnvMart for your industrial and commercial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a maximum switching current of 12A.
This model operates with a coil voltage of 24V AC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The dimensions are 21mm in length, 47.7mm in width, and 27mm in height.
It operates efficiently within a temperature range of -40°C to 55°C.
This relay is equipped with plug-in type terminals for easy installation.
The coil power consumption is 1.2W.
The contacts are made of silver alloy, which enhances conductivity and durability.
It complies with CE and CSA standards for safety and quality assurance.
The maximum switching AC voltage supported by this relay is 250V AC.
Yes, it includes a mechanical status indicator and a test button for easy configuration and troubleshooting.
It is suitable for industrial applications such as machine automation, building equipment, and HVAC systems.
