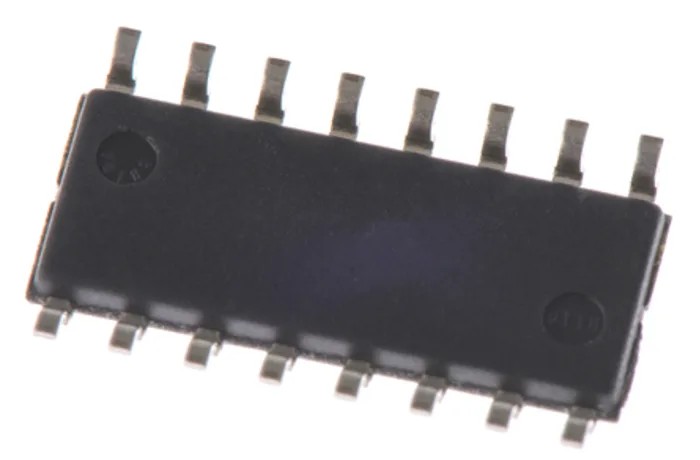

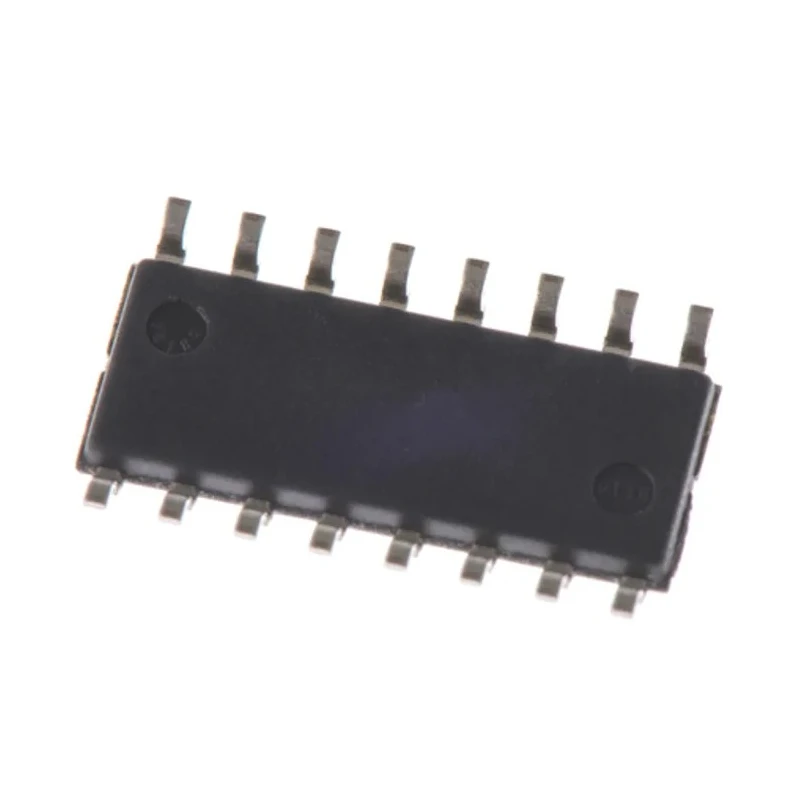

STMicroelectronics 2-Channel Line Transceiver TTL/CMOS 16-Pin SOIC ST232ABDR
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | ST232ABDR |
| Width | 6.6mm |
| Mount Type | Surface |
| Output type | TTL/CMOS |
| Series | ST232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Standards/Approvals | EIA/TIA-232, V.28 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | 1mA |
| Maximum Propagation Delay Time @ CL | 3.5μs |
| Supply Current | 1.5mA |
| Maximum Low Level Output Current | 3.2mA |
Key Features
- Operates with 2 independent channels supporting line transceiver functions.
- Compatible with TTL and CMOS logic families for versatile interfacing.
- Packaged in a 16-pin SOIC surface mount for compact PCB integration.
- Operates within a supply voltage range of 4.5V to 5.5V enabling stable power usage.
- Features a low supply current of 1.5mA for energy-efficient performance.
- Delivers a maximum propagation delay time of 3.5 microseconds, ensuring fast signal transmission.
- Supports operating temperature range from -40°C to 85°C for industrial robustness.
- Complies with EIA/TIA-232 and V.28 standards guaranteeing compatibility with RS-232 communication protocols.
Product Description
STMicroelectronics ST232ABDR is a 2-channel line transceiver designed for TTL/CMOS logic signal interfacing, housed in a 16-pin SOIC surface mount package. With a minimum supply voltage of 4.5V and maximum of 5.5V, it operates efficiently with a low current consumption of 1.5mA, suitable for embedded communication applications and electronic device integration.
Its maximum propagation delay of 3.5 microseconds allows for timely data transmission in serial interface circuits. The device supports operating temperatures from -40°C to 85°C, making it ideal for industrial and commercial environments requiring reliable performance under varying thermal conditions.
Conforming to EIA/TIA-232 and V.28 standards, the ST232ABDR ensures compatibility with RS-232 communication protocols widely used in computer and communication systems. The 16-pin SOIC package facilitates compact layout and surface mount technology on printed circuit boards.
This line transceiver features two independent channels, single-ended input types, and supports TTL/CMOS output logic levels, allowing it to interface effectively in digital signaling applications. Its maximum high-level output current is 1mA, while the maximum low-level output current is 3.2mA, supporting adequate drive strength for line communication.
Manufactured in Morocco, the ST232ABDR demonstrates STMicroelectronics' commitment to quality and durability. Applications include embedded computing systems, instrumentation, industrial control equipment, and communication interface modules.
Operates with 2 independent channels supporting line transceiver functions. Compatible with TTL and CMOS logic families for versatile interfacing. Packaged in a 16-pin SOIC surface mount for compact PCB integration. Operates within a supply voltage range of 4.5V to 5.5V enabling stable power usage.
Features a low supply current of 1.5mA for energy-efficient performance. Delivers a maximum propagation delay time of 3.5 microseconds, ensuring fast signal transmission. Supports operating temperature range from -40°C to 85°C for industrial robustness.
Complies with EIA/TIA-232 and V.28 standards guaranteeing compatibility with RS-232 communication protocols. Manufactured in Morocco with high-quality process control to ensure product reliability. Browse EnvMart categories for more semiconductor and Line Transceiver ICs to find compatible components for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.5V to 5.5V, enabling stable power usage.
The maximum propagation delay time is 3.5 microseconds, ensuring fast signal transmission.
It supports an operating temperature range from -40°C to 85°C, making it suitable for industrial applications.
This line transceiver features two independent channels for line transceiver functions.
The ST232ABDR is compatible with TTL and CMOS logic families, allowing versatile interfacing.
The maximum high-level output current is 1mA, suitable for line communication.
It is packaged in a 16-pin SOIC surface mount, which facilitates compact PCB integration.
The device supports single-ended input types, making it effective for digital signaling applications.
It features a low supply current of 1.5mA for energy-efficient performance.
The ST232ABDR complies with EIA/TIA-232 and V.28 standards, ensuring compatibility with RS-232 communication protocols.
The dimensions are 10mm in length, 6.6mm in width, and 1.75mm in height.
This model is manufactured in Morocco, reflecting the company's commitment to quality.
