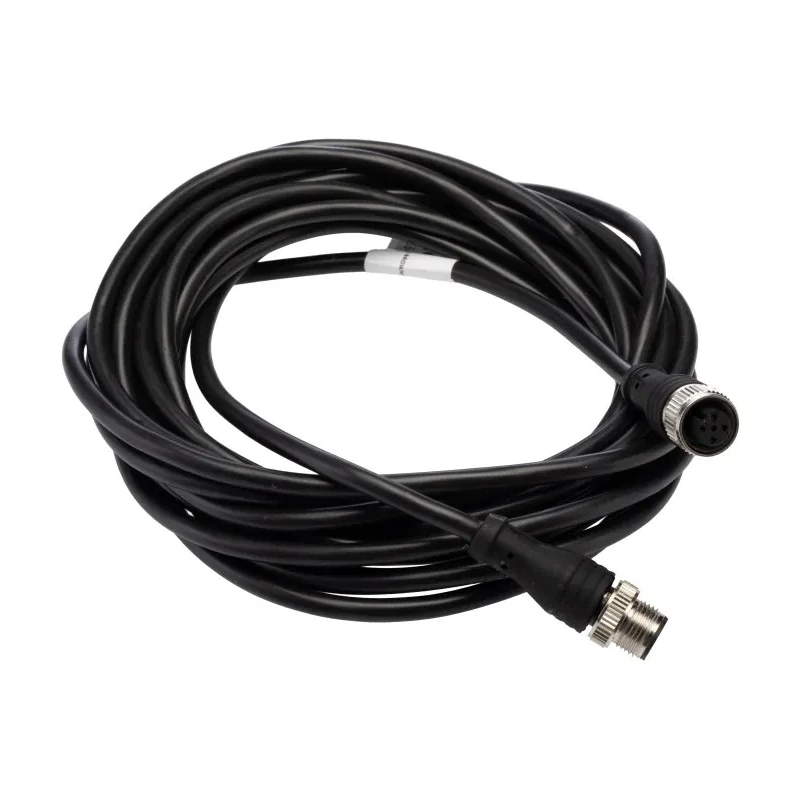

RS PRO Sensor Actuator Cable Female 5 Way Straight to Male 5 Way Straight, 5 m Length, 60V, IP67 877-1104

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Sensor Actuator Cable Female 5 Way Straight to Male 5 Way Straight, 5 m Length, 60V, IP67 877-1104

Name: RS PRO Sensor Actuator Cable Female 5 Way Straight to Male 5 Way Straight, 5 m Length, 60V, IP67 877-1104
Brand: RS PRO
SKU: 384019
Price: 25.35 USD
Availability: InStock



Category Sensor & Actuator Cable Brand RS PRO Condition New

Specifications

Country of Origin	India
Voltage	60V
Brand	RS PRO
Model	877-1104
IP Rating	IP67
Cable Length	5m
Series	RS PRO
Jacket Material	Polyvinyl Chloride
Connector Type A	Straight
Connector Gender A	Female
Jacket Colour	Black
Number of Contacts A	5
Connector Gender B	Male
Alpha Wire Sensor Actuator Cable, 3mBrand	Alpha Wire
Phoenix Contact, 3mBrand	Phoenix Contact

Key Features

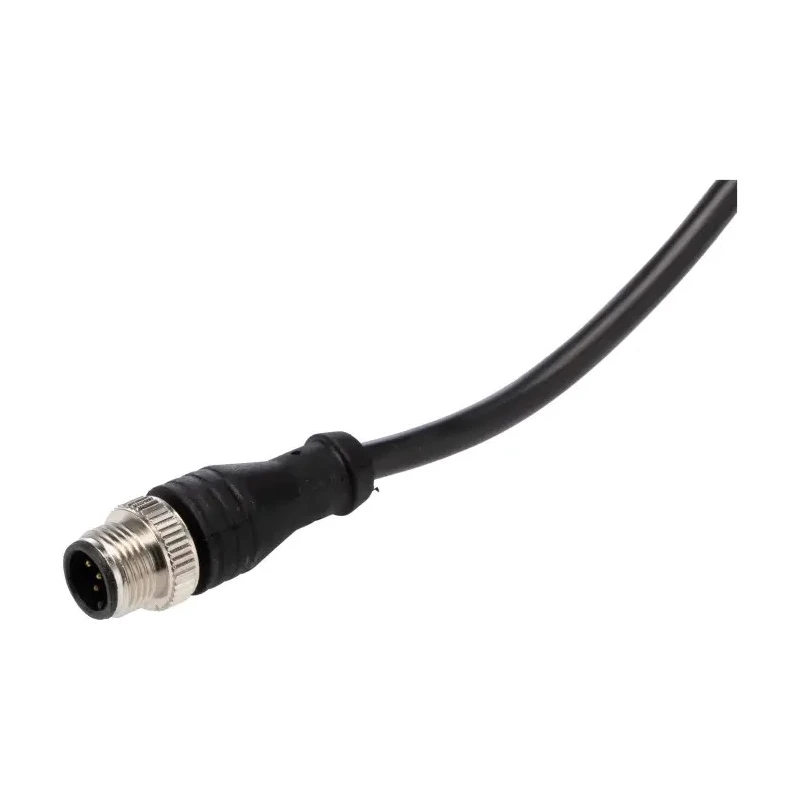

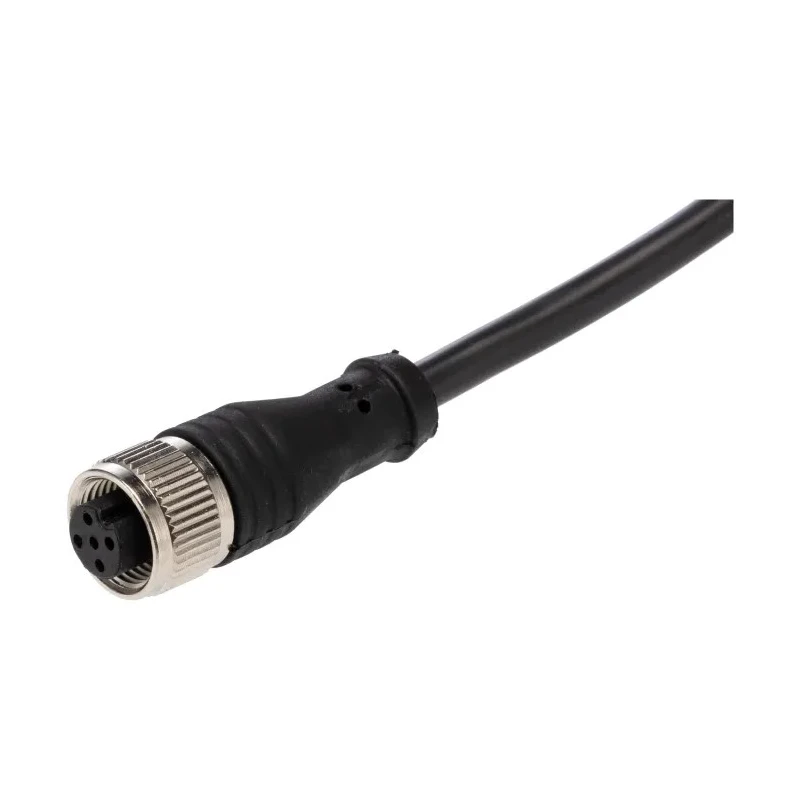

The cable features a female straight M12 connector and a male straight M12 connector.
The cable jacket is made of durable polyvinyl chloride in black color.
The cable has a 5-core configuration with gold-plated contacts for corrosion resistance.
It is rated IP67, allowing submersion in water up to 1 meter for 30 minutes.
The cable operates reliably between -25°C and +75°C temperature range.
Nickel-plated brass coupling nuts provide vibration resistance and secure connection.
Neoprene O-ring seals protect against liquid ingress.
The cable has a 0.34 mm² cross-sectional area and AWG 22 rating.

Product Description

RS PRO 877-1104 Sensor Actuator Cable Female 5 Way Straight to Male 5 Way Straight is a high-quality cable assembly designed for robust data transfer in industrial automation environments. This 5-metre long cable features straight M12 connectors at both ends, with one being female and the other male. The cable jacket is made of durable polyvinyl chloride, providing excellent mechanical protection.

The cable is constructed to operate safely at voltages up to 60 V and withstand operating temperatures from -25°C to +75°C. Its IP67 rating ensures it is waterproof and dust-tight, suitable for industrial applications exposed to moisture and contaminants.

Nickel-plated brass coupling nuts offer secure connections resistant to vibration and corrosion, while gold-plated contacts enhance corrosion resistance further. The neoprene O-ring provides a reliable seal against liquid ingress, enhancing the cable's durability.

This unshielded 5-core cable with a conductor cross-section of 0.34 mm² and AWG 22 rating is optimized for use with sensors and actuators in environments requiring data integrity and harsh chemical resistance. It complies with electrostatic discharge standards, preventing equipment damage.

The cable assembly includes one female and one male straight M12 connector. The jacket material is polyvinyl chloride with a black coloration. IP67 waterproof rating for temporary submersion. Operating temperature range: -25°C to +75°C.

Voltage rating of 60 volts for safe operation. Corrosion-resistant nickel-plated brass coupling nuts and gold-plated contacts. Neoprene O-ring sealing for liquid protection. 5-core cable configuration with 0.34 mm² cross-sectional area and AWG 22 rating.

This sensor actuator cable is ideal for industrial automation, process control, and commercial electronics applications requiring reliable and secure sensor connectivity. It is manufactured in India and forms part of the trusted RS PRO product range, known for its stringent quality standards and robust design.
