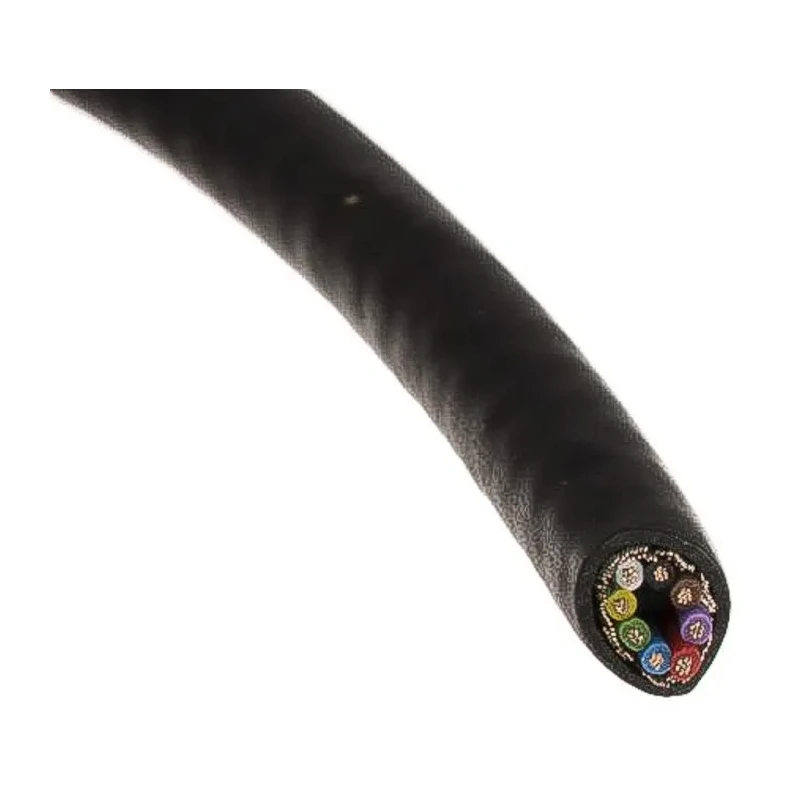

Alpha Wire Xtra-Guard 2 Performance Control Cable 8 Cores 0.35mm² 22 AWG Screened Armoured Black Polyvinyl 30 m 25198 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 25198 BK005 |
| Cable Length | 30m |
| Series | Xtra-Guard 2 Performance Cable |
| Outside diameter | 6.07mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Black |
| American Wire Gauge | 22AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 0.35mm² |
Key Features
- Heavy-duty construction with abrasion resistant polyurethane jacket for extended durability.
- Features screened and armoured design for enhanced EMI protection and mechanical strength.
- Rated for 300V with a temperature range from -30°C to 90°C.
- Contains 8 colour coded tin copper cores with 7 strands each of 0.25mm diameter.
- Black polyvinyl chloride jacket offers excellent UV and chemical resistance.
- Suitable for industrial applications like CNC machines, automotive plants, and petrochemical plants.
- Certified to UL, CSA, and CE standards with low flammability and low smoke zero halogen properties.
Product Description
Alpha Wire 25198 BK005 Xtra-Guard 2 Performance Control Cable is engineered for industrial settings requiring rugged, abrasion resistant wiring solutions. It features 8 colour-coded cores, each conductor made from tin copper wire with 7 strands of 0.25mm, packed in a screened and armoured configuration to deliver superior electromagnetic interference (EMI) protection.
The cable is sheathed in a black polyvinyl chloride jacket renowned for its excellent chemical, oil, solvent resistance, and outstanding UV stability. This heavy-duty polyurethane jacket provides abrasion and tear resistance three times greater than standard PVC cables, allowing the cable to withstand mechanical abuse often encountered in harsh industrial environments.
Operating at 300 volts and designed for temperature tolerances ranging from -30°C minimum to 90°C maximum, this cable is ideal for applications such as CNC machinery, automotive manufacturing plants, military ground support systems, packaging equipment, petrochemical operations, and geophysical instrumentation.
Meeting stringent industrial safety and quality approvals including UL AWM 20668 VW-1, CSA AWM I/II A/B FT-1, and CE compliance, this cable exhibits low flammability and low smoke zero halogen (LSZH) fire behavior, reducing hazards in fire situations.
Heavy-duty polyurethane jacket resists abrasion, tear, oil, and UV exposure. Screened with Supra-Shield triple layer foil and tinned copper braid for excellent EMI performance. Contains 8 cores of tin copper wire conductors with 22 AWG gauge, each core composed of 7 strands of 0.25mm.
Operating voltage up to 300V with wide temperature range (-30°C to 90°C). Suitable for industrial automation, automotive, packaging, petrochemical, military, and geophysical equipment. Compliance with UL, CSA, and CE standards ensures reliability and safety.
Black polyvinyl chloride outer jacket providing chemical resistance and durability.
Alpha Wire's Xtra-Guard 2 provides a durable and versatile solution for protection against mechanical and environmental stresses, making it an essential cable for demanding industrial control systems. Explore more in our Electronics & Electricals category for high-quality control and industrial cables.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for a maximum operating voltage of 300V.
It operates within a temperature range of -30°C to 90°C.
This cable contains 8 colour-coded cores.
The conductors are 22 AWG in size.
It features a black polyvinyl chloride jacket and tin copper wire conductors.
The outside diameter of the cable is 6.07mm.
Yes, it has excellent UV resistance due to its polyvinyl chloride jacket.
It is suitable for industrial applications such as CNC machines, automotive plants, and petrochemical operations.
It is certified to UL, CSA, and CE standards.
Each conductor consists of 7 strands of 0.25mm in diameter.
The cable is screened with a Supra-Shield triple layer foil and tinned copper braid for enhanced EMI protection.
The cable length is 30 meters.
