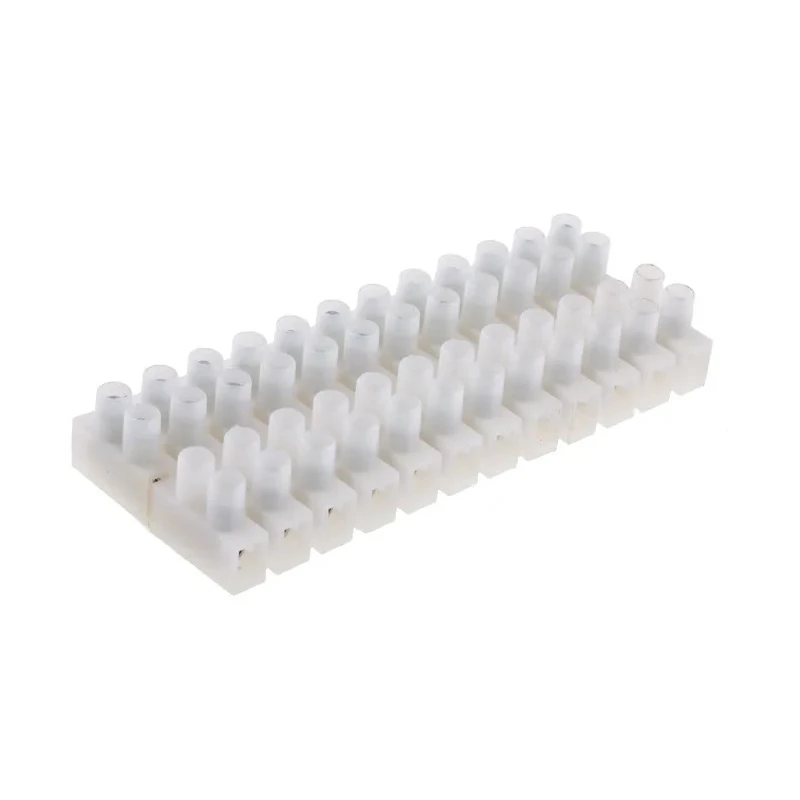

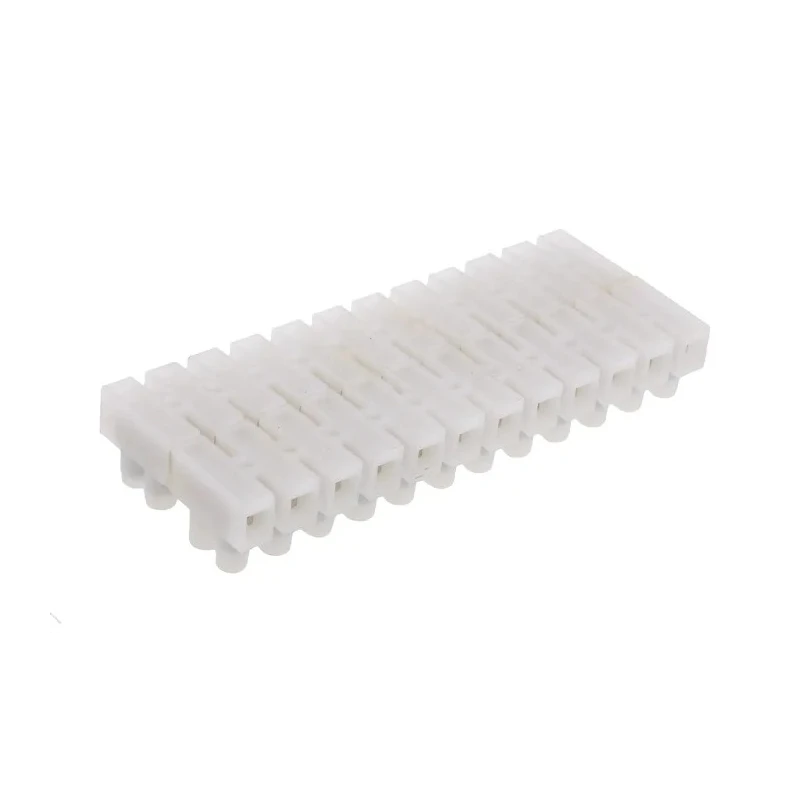

RS PRO Non-Fused Terminal Block 12-Way 14AWG Wire 20A Screw Termination 450V Polyamide 66 865-9821

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Non-Fused Terminal Block 12-Way 14AWG Wire 20A Screw Termination 450V Polyamide 66 865-9821

Name: RS PRO Non-Fused Terminal Block 12-Way 14AWG Wire 20A Screw Termination 450V Polyamide 66 865-9821
Brand: RS PRO
SKU: 382945
Price: 20.22 USD
Availability: InStock



Category Terminal Blocks Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	450V
Brand	RS PRO
Material	Polyamide 66
Colour	Natural
Current	20A
Model	865-9821
Number Of Ways	12
Gender	Male/Female
Mount Type	Direct
Contact Material	Brass
Series	RS PRO
Termination Type	Screw
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Wire size	14AWG
Pitch	7.2mm
Standards/Approvals	UL94-V2
Contact Plating	Nickel
Cable CSA	2.5mm²
Standards and Approvals	VDE
RS PRO Non-Fused Terminal Block, 12-Way, 10A, Screw Down TerminationBrand	RS PRO

Key Features

Constructed from flame retardant polyamide 66 material for safety and durability.
Features nickel plated brass contacts for excellent corrosion resistance.
Equipped with galvanised steel captive and raised screws for secure and easy wiring.
Operates reliably in temperature ranges from -40°C to 105°C.
Designed for direct mount installation with 7.2mm pitch between contacts.
Suitable for industrial and electronic applications requiring non-fused terminal blocks.
Natural color housing for clear wire identification.
Complies with UL94-V2 and VDE standards for quality and safety.

Product Description

RS PRO 865-9821 Non-Fused Terminal Block 12-Way 14AWG Wire 20A Screw Termination 450V is manufactured from flame retardant polyamide 66 ensuring high durability and performance. It features nickel-plated brass contacts that provide excellent wear and corrosion resistance, ensuring longevity even in demanding industrial environments. The terminal block is engineered to safely operate within a wide temperature range from -40°C to 105°C, suitable for harsh conditions.

This plug-in terminal block is designed with two rows of 12 contacts making a total of 24 contact points, allowing for complex wiring needs. Its galvanised steel captive and raised screws prevent full screw removal, simplifying wiring while enhancing safety and reliability. With a contact pitch of 7.2mm, it supports 14AWG wire (2.5mm² CSA) and a current capacity of 20A under a voltage rating of 450V.

The natural color housing aids in easy wire identification during installation and maintenance. It is designed for direct mount applications and supports both male and female contacts for versatile connectivity options. The terminal block conforms to the UL94-V2 flame retardant standard and complies with VDE electrical standards, assuring safety and quality.

Ideal for use in industrial, electronic component assemblies, power connectors, and automation systems, this RS PRO terminal block combines durability with user-friendly features to enhance electrical connectivity and safety.

Constructed from flame retardant polyamide 66 material ensuring durability and safety. Nickel plated brass terminal inserts offer excellent corrosion resistance. Galvanised steel captive and raised screws prevent screw loss and improve wiring efficiency.

Supports high temperature operations up to 105°C. Features 12 ways with male/female contacts for versatile wiring configurations. Suitable for direct mount installation with a 7.2mm pitch spacing. Designed for 14AWG wire size and 20A current capacity at 450V operation.

Complies with UL94-V2 and VDE standards ensuring product safety and reliability. Explore more electrical connectors and Terminal Blocks in the Electronics & Electricals category on EnvMart for professional quality and comprehensive product solutions.
