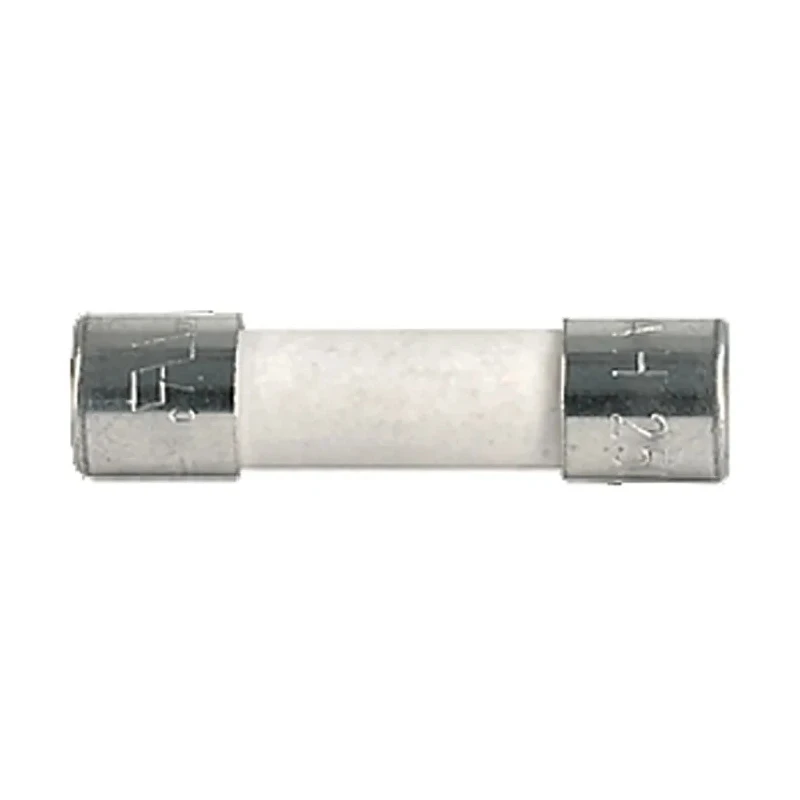

Schurter 16A Fast Acting Ceramic Cartridge Fuse 5 x 20 mm 250V ac SP 5X20 Series 0001.1016

Free Delivery in India | Lowest Global Shipping Charges

Schurter 16A Fast Acting Ceramic Cartridge Fuse 5 x 20 mm 250V ac SP 5X20 Series 0001.1016

Name: Schurter 16A Fast Acting Ceramic Cartridge Fuse 5 x 20 mm 250V ac SP 5X20 Series 0001.1016
Brand: Schurter
SKU: 382925
Price: 0.46 USD
Availability: InStock



Category Cartridge Fuses Brand Schurter Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Diameter	5mm
Brand	Schurter
Body Material	Ceramic
Overall Length	20mm
Current Rating	16A
Series	SP 5X20
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-55°C
Standards/Approvals	UL 248-14
Fuse Characteristics	Fast Acting
Fuse Size	5 x 20 mm

Key Features

The fuse features a ceramic body for enhanced durability and heat resistance.
It operates reliably within temperature ranges from -55°C to +125°C.
The fuse has nickel plated copper alloy endcaps ensuring good conductivity.
It is designed for high breaking capacity and excellent mechanical and vibration resistance.
Typical applications include short-circuit protection of semiconductors such as thyristors, diodes, and triacs.
Recommends open type fuse holders when used above 6.3A to avoid nuisance tripping.
Mounting style is suitable for holders or clips with cylindrical shape.

Product Description

Schurter 0001.1016 ceramic cartridge fuse is a 16A fast acting fuse with a 5 x 20 mm size and a voltage rating of 250V ac, designed for reliable electrical protection. The fuse body is made from ceramic, providing excellent insulation, heat resistance, and mechanical robustness, suitable for demanding industrial and electrical applications.

It operates effectively within a temperature range of -55°C to +125°C, ensuring stable performance in varied environments. The fuse features nickel plated copper alloy endcaps for superior electrical conductivity and mechanical robustness.

The Schurter SP 5X20 series fuse offers very high breaking capacity and good resistance to vibration, making it ideal for protecting sensitive semiconductor devices including thyristors, diodes, and triacs against short circuits.

For currents above 6.3A, the use of open type fuse holders is advised to reduce the risk of nuisance tripping near full rated current. The fuse is cylindrical in shape and mounts on holders or clips compatible with standard cartridge fuse sizes.

The fuse features a ceramic body for enhanced durability and heat resistance. It operates reliably within temperature ranges from -55°C to +125°C. The fuse has nickel plated copper alloy endcaps ensuring good conductivity.

It is designed for high breaking capacity and excellent mechanical and vibration resistance. Typical applications include short-circuit protection of semiconductors such as thyristors, diodes, and triacs. Recommends open type fuse holders when used above 6.3A to avoid nuisance tripping.

Mounting style is suitable for holders or clips with cylindrical shape. This ceramic cartridge fuse is suitable for use in industrial equipment, electrical panels, automation devices, and electronics requiring reliable short-circuit protection.
