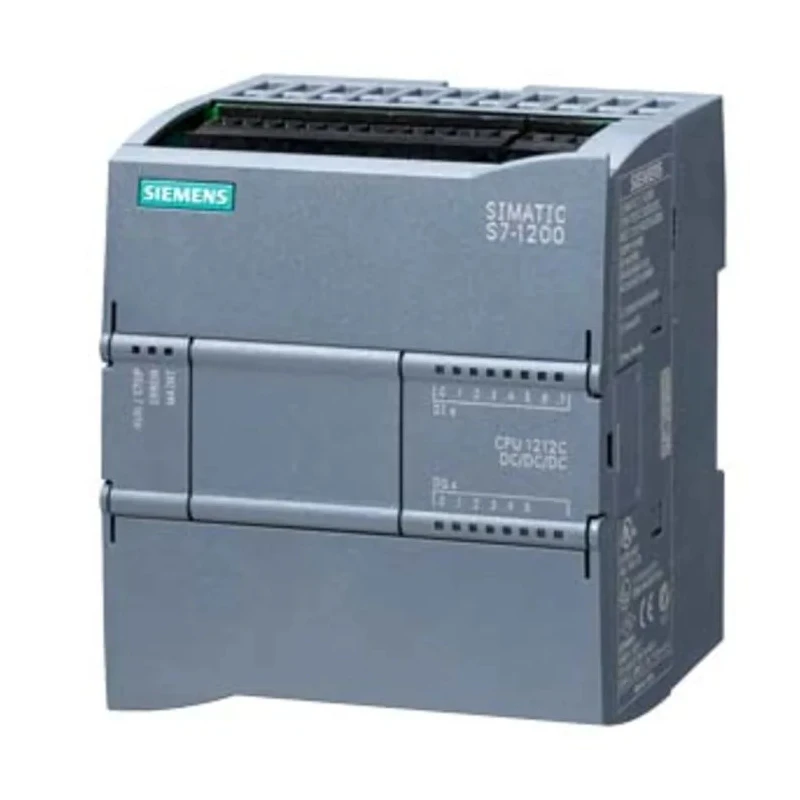

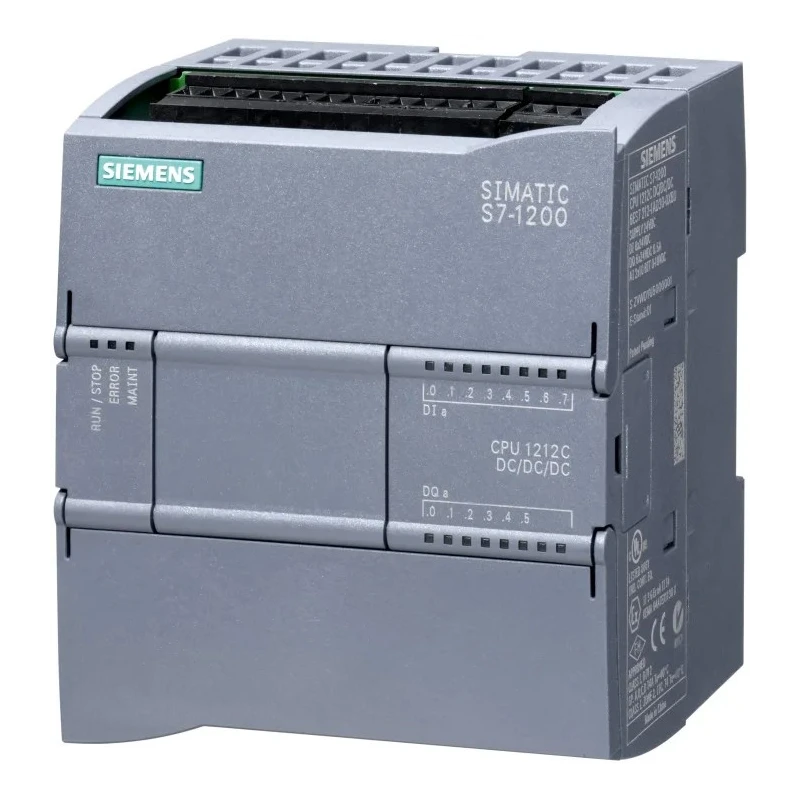

Siemens SIMATIC S7-1200 Series PLC CPU 8-Input Analogue Digital Input 6 Outputs Digital Transistor 6ES7212-1AE40-0XB0
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Length | 100mm |
| Model | 6ES7212-1AE40-0XB0 |
| Depth | 75mm |
| Width | 90mm |
| Mount Type | DIN Rail, Wall Mount |
| Number of inputs | 8 |
| Output type | Digital Transistor |
| Series | SIMATIC S7-1200 |
| Output Current | 500mA |
| Input Type | Analogue, Digital |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 6 |
| Program Capacity | 50kB |
| Supply Voltage | 20.4, 28.8V dc |
| Standards/Approvals | UL, RCM, KC, FM, cULus, CE |
| Better World Claim | Saves Energy |
| Number of Communication Ports | 1 |
| Communication Port Type | Ethernet, Profinet |
| Programming Language Used | SCL, Ladder Diagram, FBD |
Key Features
- Operates with supply voltage of 20.4 to 28.8 V DC for stable power supply.
- Equipped with analogue and digital input capabilities for flexible sensor integration.
- Supports diverse programming languages including SCL, Ladder Diagram, and FBD for versatile automation control.
- Features integrated real-time clock and battery backup for reliable operation and task synchronization.
- Mountable on DIN rail or wall, providing flexible installation options.
- Communication via standard Ethernet and Profinet interface ensures seamless integration into networks.
- Capable of operating in harsh environments with temperature range from -20°C to 60°C.
- Program memory capacity of 50 kB with 1 MB CPU memory for complex automation tasks.
Product Description
Siemens 6ES7212-1AE40-0XB0 SIMATIC S7-1200 Series PLC CPU is a high-performance industrial automation controller designed for precise control and monitoring tasks. Operating at supply voltages between 20.4 and 28.8 V DC, this PLC CPU supports both analogue and digital inputs, providing versatile feedback and control signals integration.
This PLC CPU is ideal for applications in large-scale industrial automation, automotive manufacturing, robotics systems, and other commercial settings requiring reliable programmable logic control. It features six digital transistor outputs with an output current of 500mA, enabling robust hardware control.
To ensure flexible integration and programming, the CPU supports multiple programming languages including Structured Control Language (SCL), Ladder Diagram (LAD), and Function Block Diagram (FBD). The device also includes a real-time clock for precise task scheduling and battery backup for data retention during power outages.
Installation is straightforward with options for either DIN rail or wall mounting, accommodating various setup requirements. Its communication is streamlined via a single Ethernet Profinet port, widely recognized and used across automation environments.
Designed to withstand challenging industrial conditions, the PLC CPU operates within a temperature range from -20°C up to 60°C. Its compact physical size (100 mm length by 90 mm width and 75 mm depth) fits easily into control panels and industrial cabinets.
Operate efficiently in temperatures from -20°C to +60°C. Supports analogue and digital input types for versatile applications. Provides 6 digital transistor outputs for control signal reliability. Flexible mounting: DIN rail or wall mount.
50 kB program capacity coupled with 1 MB CPU memory. Single communication port supporting Ethernet and Profinet protocols. Integrated real-time clock and battery backup included.
Siemens is a leading brand in industrial automation, and this PLC CPU from the SIMATIC S7-1200 series delivers reliable, energy-saving operation. It is an ideal choice for engineers seeking efficient process control and integration within modern automation systems.
Explore more Siemens automation products and leverage EnvMart’s comprehensive catalog for industrial-grade electronics and electrical solutions.
