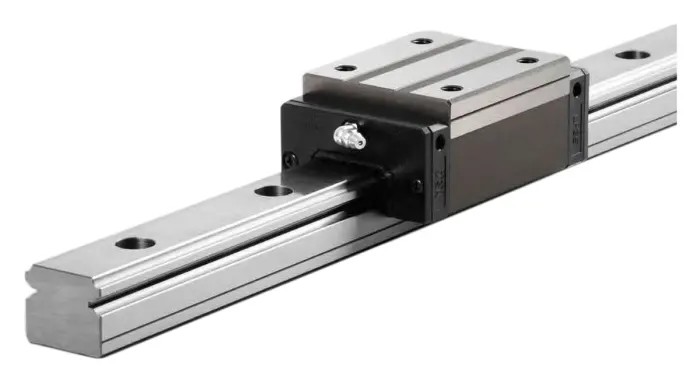

NSK N1H Series Linear Guide Rail 30 mm Width 1000 mm Length Carbon Steel Material N1H301000LCN-PCZ

Free Delivery in India | Lowest Global Shipping Charges

NSK N1H Series Linear Guide Rail 30 mm Width 1000 mm Length Carbon Steel Material N1H301000LCN-PCZ



Category Linear Guide Rail Brand NSK Condition New

Specifications

Country of Origin	Korea
Brand	NSK
Material	Carbon Steel
Model	N1H301000LCN-PCZ
Series	N1H
Static Load Rating	51500N
Dynamic Load Rating	32.5kN
Rail Width	30mm
Rail Length	1000mm
NSK LH Series, L1H 30 1000, Linear Guide Rail 28mm width 1000mm LengthBrand	NSK

Key Features

Redesigned NH series for improved dynamic load rating and service life.
Rail width of 30 mm suitable for various precision linear motion applications.
Constructed from carbon steel for strength and wear resistance.
Dynamic load rating of 32.5 kN for high load bearing capacity.
Static load rating of 51,500 N ensuring stability under stationary load.
Compatible with existing LS and LH series components for easy replacement.
Redesigned ball recirculation path reduces noise by up to 3 dB.
Ideal for machine tools, robotics, semiconductor production, and automation systems.

Product Description

The NSK N1H301000LCN-PCZ linear guide rail, part of the N1H series, features a 30 mm rail width and 1000 mm rail length, constructed from durable carbon steel. It delivers a dynamic load rating of 32.5 kN and a static load rating of 51,500 N, designed to handle heavy loads in precision linear motion applications.

This linear guide rail belongs to NSK's NH series, which represents an enhancement over older LS and LH series, offering 1.3 times greater dynamic load rating and an improved groove design that doubles life expectancy by increasing the contact area between ball and rail. These advancements extend maintenance intervals and boost productivity in industrial environments.

The NH series retains identical installation dimensions with the LS and LH series, ensuring backward compatibility with existing components. The ball recirculation path has been redesigned to reduce noise generation by up to 3 dB, making it suitable for high-speed applications.

Typical industrial uses include machine tools, robotics, semiconductor and automotive production lines, CT scanners, measuring instruments, automation, and train platform doors. NSK's optional K1 lubrication system allows maintenance-free operation up to 40,000 km, employing a blend of mineral oil and polyolefin resin that works regardless of orientation and is ideal where grease application is difficult or contamination is a concern.

Redesigned NH series with enhanced dynamic load rating and life expectancy. 30 mm wide carbon steel rail for strength and durability. High static load rating providing stability under stationary conditions. Backward compatible with LS and LH series installation dimensions.

Noise reduction through improved ball recirculation design. Versatile applications in machine tools, robotics, semiconductor, and automation. K1 lubrication system option for long term maintenance-free use.

Choose the NSK N1H301000LCN-PCZ Linear Guide Rail for reliable performance in demanding industrial and manufacturing applications. Explore more linear motion components and related NSK products on EnvMart for comprehensive automation solutions.
