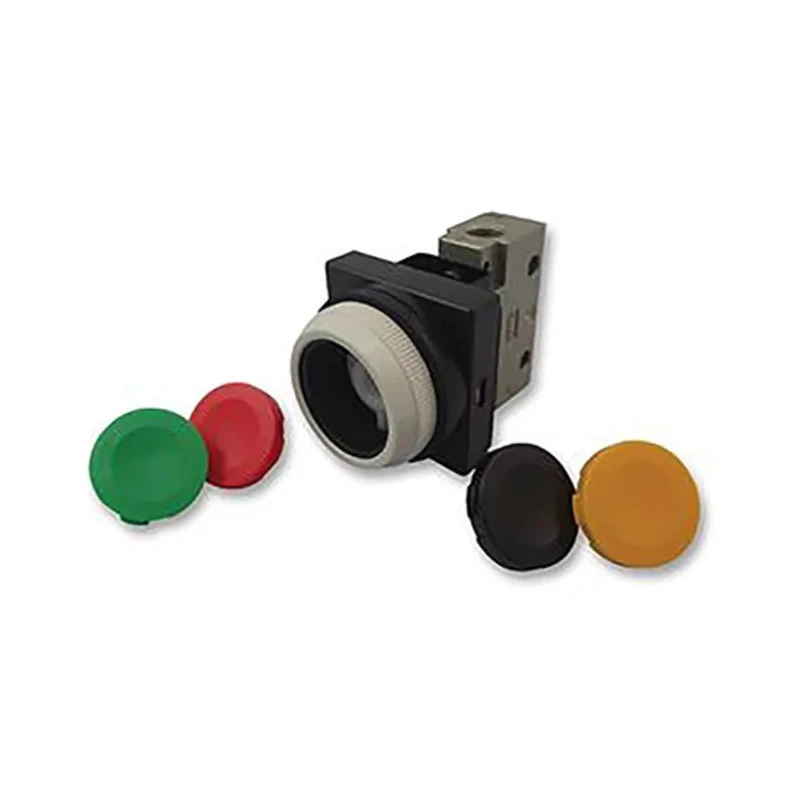

SMC Push Button Mechanical Valve VM100 Series, 1/8 in NPT Port Size, Zinc Die Cast Alloy Body, 1 MPa Pressure, III B Model



Category Pneumatic Manual Control Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Zinc Die Cast Alloy
Maximum Operating Pressure	1 Mpa
Model	VM100
Series	VM100
Maximum Operating Temperature	+60°C
Thread Size	1/8
Port Type	Side
Number of Positions	3
Port Size	1/8 in NPT
Minimum Operating Temperature	-5°C
Maximum Flow Rate	144L/min
Control Mechanism	Push Button
Standards/Approvals	RoHS
Connection Thread Standard	NPT
Valve Function	2/2 Way
Control Button/Switch Colour	Red

Key Features

The valve features a push-button control mechanism with a red actuator button for easy manual operation.
Constructed with a durable zinc die-cast alloy body providing corrosion resistance.
Operates at a maximum pressure of 1 MPa and flow rate of 144 L/min for medium-pressure applications.
Designed for side port installation, compatible with 1/8 NPT threaded piping connections.
Suitable for operating temperatures between -5°C and +60°C, reliable in varied ambient conditions.
The valve function is 2/2 way with a mechanical spring return to the closed position after actuation.
Ideal for small pneumatic control panels, valve islands, and emergency stop applications.
Lightweight at approximately 0.118 kg for easy mounting and retrofit.

Product Description

SMC VM120-N01-30RA Push Button Mechanical Valve VM100 Series, featuring a 1/8 inch NPT port size and zinc die-cast alloy body, is engineered for pneumatic manual control applications in industrial environments. Designed for air and inert gas systems, this valve provides precise manual actuation with a red push-button control and mechanical spring return for reliable valve closure.

Its compact design allows side-ported installation where space constraints exist, with standard NPT 1/8 thread connections simplifying pipe fitting compatibility. The valve supports a maximum operating pressure of 1 MPa and a flow rate of 144 L/min, making it suitable for medium-pressure air systems and inert gases.

The operational temperature range from -5°C to +60°C ensures functionality across diverse industrial conditions. With three positions and a 2/2 way valve function, this valve can efficiently control pneumatic flows for safety stops, local shut-off tasks, or in conjunction with pneumatic actuators requiring mechanical piloting.

Manufactured in Japan, the robust zinc die-cast alloy body provides corrosion resistance and durability essential for intensive industrial use. The valve's light weight of approximately 0.118 kg facilitates easy installation and retrofit in existing systems.

The valve uses a push-button actuator for straightforward manual control. Side port connection design suits compact pneumatic panels or valve islands. Compatible with compressed air and inert gases; corrosive or liquid media are unsuitable.

Mechanical spring ensures valve returns to closed position reliably after use. Red control button provides visual indication and user-friendly interface. Ideal for emergency stop functions and local shut-off duties in industrial automation.

Body material zinc die-cast alloy offers excellent corrosion resistance and durability. Compact and lightweight design supports easy handling and installation in pneumatic systems.

This SMC Pneumatic Manual Control Valve is an essential component in pneumatic circuits used in industrial, manufacturing, laboratory, HVAC, and automated system applications. Its reliable performance and ease of manual operation ensure safety and control in compressed air and inert gas environments.
