Banner Diffuse Photoelectric Sensor Block Sensor 15 mm NPN/PNP IP67
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Banner |
| Response time | 700μs |
| Light Source | LED |
| Detection range | 15 mm |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Thermoplastic Elastomer |
| Output type | NPN/PNP |
| Series | Q12 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 20mA |
| DetectIon Type | Diffuse |
| Terminal type | Cable |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | IEC |
| Sensor Style | Block |
Key Features
- Compact ultraminiature housing measuring 22x8x12 mm ensures installation in confined spaces.
- Durable thermoplastic elastomer housing provides enhanced durability and shielding.
- Equipped with LED light source and offers a fast response time of 700 microseconds.
- Designed for industrial environments with IP67 protection against dust and moisture.
- Operates reliably between -20°C to 55°C temperature range.
- Output type supports both NPN and PNP transistor configurations.
- Maximum DC voltage of 30V and maximum current handling of 20mA.
- Mounting via screw method for secure and stable installation.
Product Description

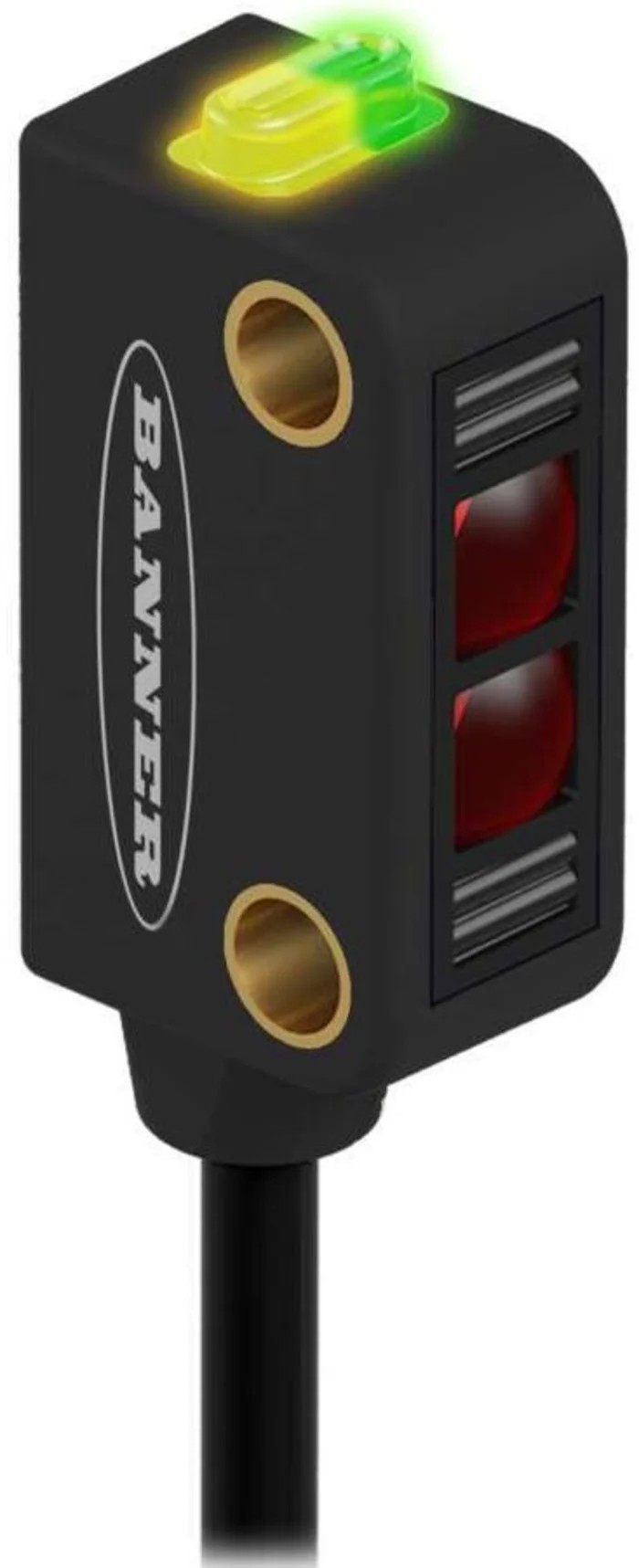

Banner Q12AB6FF15 diffuse photoelectric sensor is a block sensor well-suited for automation and control gear applications requiring precise object detection within a 15 mm range. It features a compact housing of dimensions 22x8x12 mm constructed from thermoplastic elastomer, yielding durability and reliable shielding.
This photoelectric sensor operates using an LED light source with diffuse detection technology, enabling it to detect the presence or absence of objects without requiring reflective targets. The sensor supports bipolar output configuration (NPN/PNP) to integrate seamlessly with diverse industrial control systems.
Rated at IP67, this sensor offers superior resistance to dust and water ingress, making it ideal for harsh or demanding industrial environments. It can function effectively across a temperature spectrum from -20°C up to 55°C without degradation in performance.
The sensor is designed to operate safely at a maximum DC voltage of 30V and a maximum current of 20mA, ensuring compatibility with a wide range of electrical control circuits. It mounts securely via screw installation, facilitating straightforward setup and maintenance.
Certified to IEC standards, the Q12 series from Banner maintains a consistent quality benchmark suited for industrial automation, manufacturing, laboratory instrumentation, material handling, and various other industrial sectors.
Compact ultraminiature housing measuring 22x8x12 mm ensures installation in confined spaces. Durable thermoplastic elastomer housing provides enhanced durability and shielding. Equipped with LED light source and offers a fast response time of 700 microseconds.
Designed for industrial environments with IP67 protection against dust and moisture. Operates reliably between -20°C to 55°C temperature range. Output type supports both NPN and PNP transistor configurations. Maximum DC voltage of 30V and maximum current handling of 20mA.
Mounting via screw method for secure and stable installation. Complies with IEC standards ensuring reliable and safe performance. Manufactured in the United States.
This product is ideal for industrial automation, electrical engineering, manufacturing processes, and quality control systems requiring accurate and fast object detection. The Banner Q12AB6FF15 sensor series has established itself as a trusted component in precision detection and process reliability.
Explore the Banner Photoelectric Sensor range on EnvMart for advanced sensing solutions designed for various industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this photoelectric sensor is 15 mm, allowing it to effectively detect the presence or absence of objects within that distance.
This model has compact dimensions of 22 mm x 8 mm x 12 mm, making it suitable for installation in confined spaces.
The maximum operating temperature for this sensor is 55°C, allowing it to function effectively in various industrial environments.
It supports both NPN and PNP transistor output configurations, providing flexibility for integration with different control systems.
The sensor offers a fast response time of 700 microseconds, which is beneficial for applications requiring quick detection.
This model has an IP67 rating, providing excellent protection against dust and moisture ingress, making it suitable for harsh environments.
The minimum operating temperature for this sensor is -20°C, ensuring reliable performance in colder conditions.
It is designed for screw mounting, which ensures a secure and stable installation in various applications.
The sensor is equipped with an LED light source, which is essential for its diffuse detection technology.
The housing is made from thermoplastic elastomer, which provides durability and reliable shielding for the sensor.
This photoelectric sensor complies with IEC standards, ensuring it meets recognized quality benchmarks for industrial applications.
The maximum current handling capability of this sensor is 20 mA, allowing it to work with a variety of electrical control circuits.
