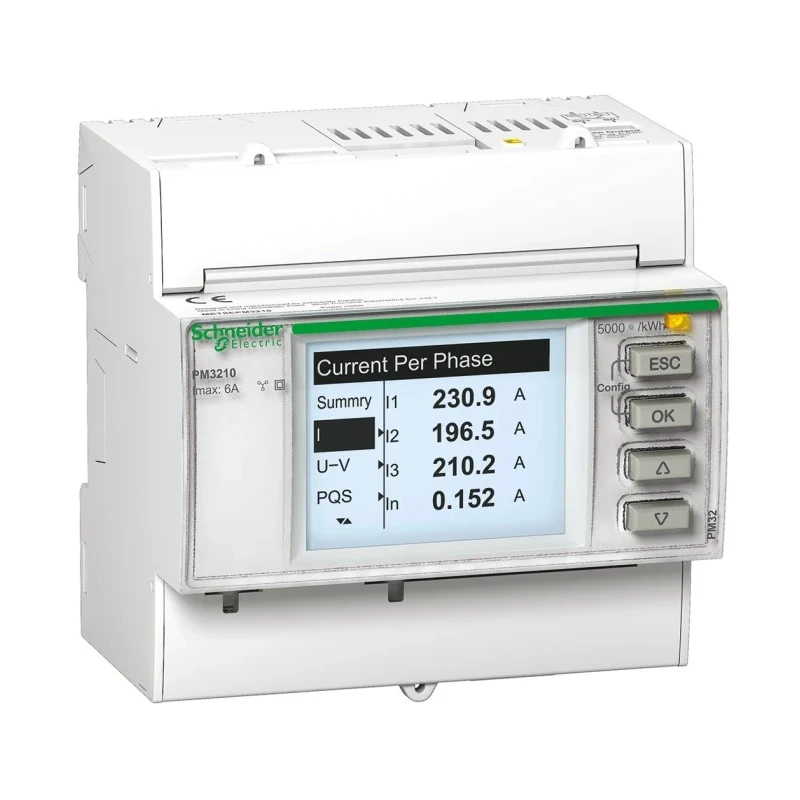

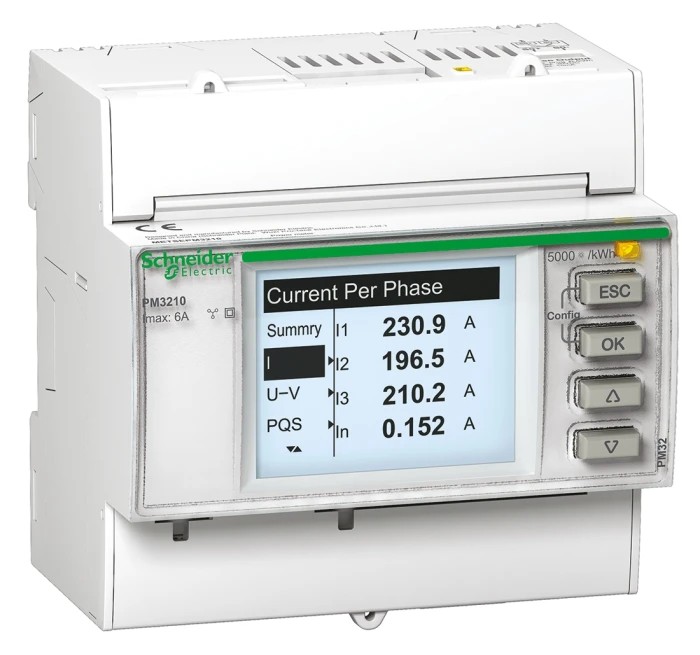

Schneider Electric 1, 3 Phase LCD Energy Meter PM3210 METSEPM3210
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Schneider Electric |
| Model | METSEPM3210 |
| Depth | 70mm |
| Series | PM3200 |
| Maximum Operating Temperature | 70°C |
| Meter Accuracy | ±0.3 % rdg + 0.5 Digits |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Number of Phases | 1, 3 |
| Standards/Approvals | RoHS |
Key Features
- Compact size and DIN rail mounting suitable for small electrical cabinets.
- Supports 1 and 3-phase systems with a clear LCD display.
- Measures electrical parameters including I, In, U, V, PQS, E, PF, Hz, and THD.
- Features power/current demand, peak demand, and min/max values tracking.
- Provides 5 timestamped alarms for event monitoring.
- Includes kWh pulse output for energy monitoring.
- Operates reliably in temperatures from -25°C to 70°C.
- RoHS compliant ensuring environmental safety.
Product Description
Schneider Electric METSEPM3210 is a 1 and 3 phase LCD Energy Meter designed for precise measurement of electrical parameters and energy consumption. It is part of the PM3200 series and supports advanced energy monitoring in compact form factor with DIN rail mounting suitable for small electrical panels.
This energy meter supports measurement of current (I), nominal current (In), voltage (U, V), power quality status (PQS), energy (E), power factor (PF), frequency (Hz), and total harmonic distortion (THD). It features power and current demand, peak demand, along with min and max recorded values, providing comprehensive energy usage data.
Equipped with an intuitive LCD display, the meter allows easy navigation through important parameters for effective monitoring. It includes 5 timestamped alarms for event tracking and a kWh pulse output useful for data acquisition systems.
The device operates reliably between -25°C and 70°C, is RoHS compliant, and is built for industrial, commercial, and utility-scale electrical energy management. The product is manufactured in China with quality control aligned to industry standards.
Compact and space-saving DIN rail mounting. Wide temperature operation range from -25°C to 70°C. Advanced electrical parameter measurement with ±0.3% reading accuracy plus 0.5 digits. Pulse output and timestamped alarms for detailed energy event logging.
Suitable for single and three-phase electrical systems. Robust design complying with RoHS standards.
This Schneider Electric PM3210 energy meter provides essential data for industrial process control, energy monitoring, and automation systems. It is widely used in manufacturing, water treatment, and commercial electrical installations to optimize energy consumption and reliability.
Explore more Schneider Electric Energy Meters and related automation and control gear at EnvMart for enhanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This energy meter can measure current (I), nominal current (In), voltage (U, V), power quality status (PQS), energy (E), power factor (PF), frequency (Hz), and total harmonic distortion (THD).
The meter has an accuracy of ±0.3% of the reading plus 0.5 digits, ensuring precise measurements.
It operates reliably in temperatures ranging from -25°C to 70°C.
It features 5 timestamped alarms for event tracking, allowing for detailed monitoring of energy usage events.
This unit is equipped with an LCD display for easy navigation and monitoring of electrical parameters.
Yes, it supports both 1-phase and 3-phase electrical systems, making it versatile for various applications.
The depth of this energy meter is 70mm, suitable for compact installations.
The Schneider Electric PM3210 is manufactured in China.
The maximum operating temperature for the PM3210 is 70°C.
This energy meter is RoHS compliant, ensuring it meets environmental safety standards.
It includes a kWh pulse output, which is useful for data acquisition systems and energy monitoring.
This model is part of the PM3200 series of energy meters from Schneider Electric.
