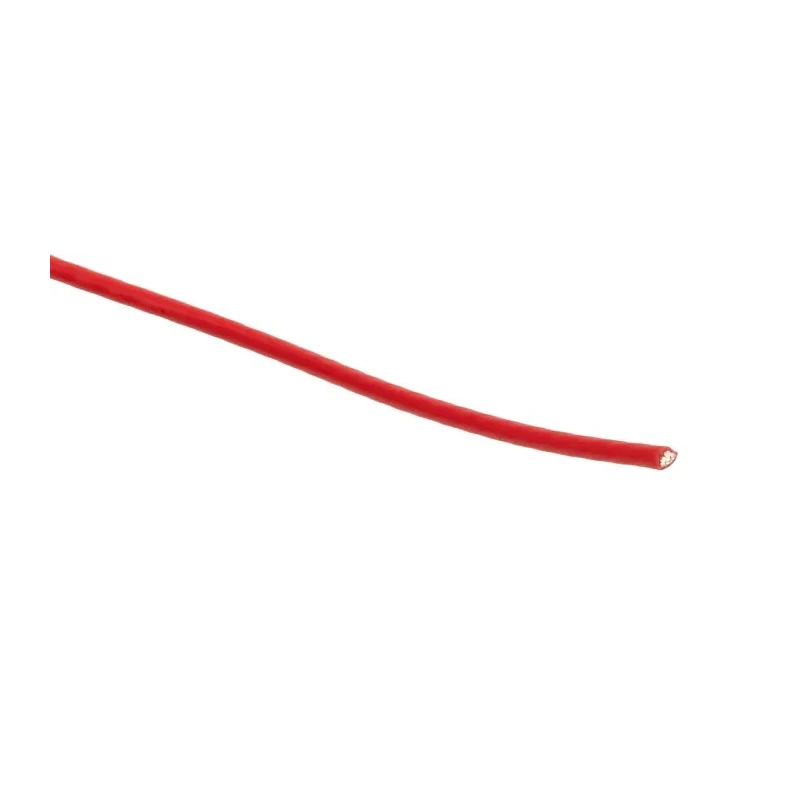

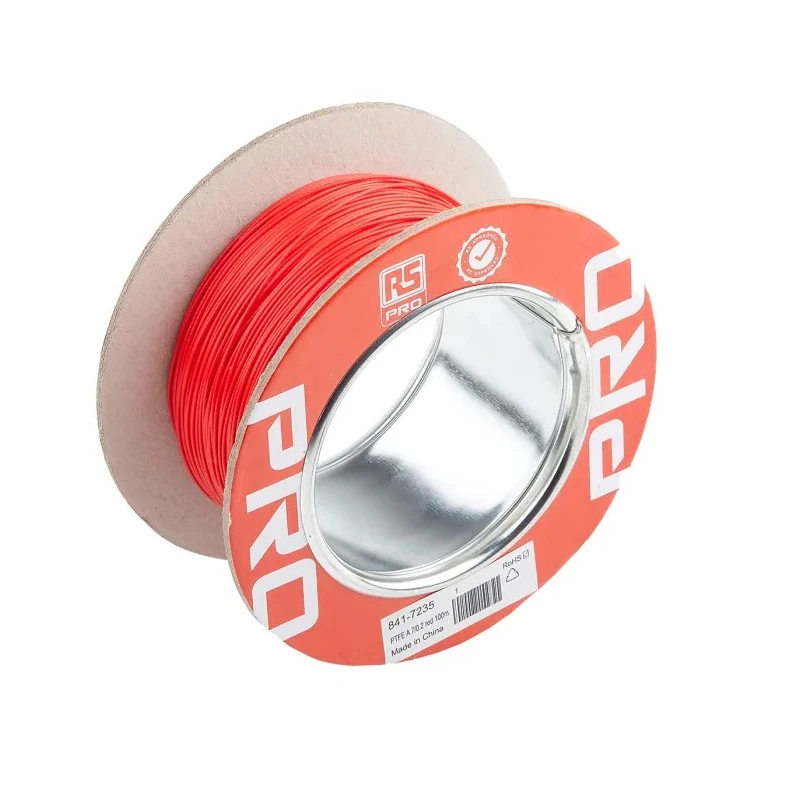

RS PRO Red 0.22 mm² 24 AWG Hook Up Wire 7/0.2 mm Core Strands 100 m PTFE Insulation 300V 200°C 841-7235

RS PRO 841-7235 Hook Up Wire offers a durable and reliable solution for electrical wiring needs in harsh environments. The 0.22 mm² cross sectional area wire consists of seven fine 0.2 mm silver-plated copper strands, delivering excellent electrical conductivity and resistance to corrosion. Its polytetrafluoroethylene (PTFE) insulation provides superior dielectric properties and outstanding resistance to chemicals, oils, acids, and UV exposure.

Designed to withstand operating temperatures from -75°C up to 200°C and voltages up to 300 volts, this Hook Up Wire is ideal for use in construction sites, automotive engines, aerospace, laboratories, and other challenging industrial environments. The flame retardant, low smoke, and halogen free jacket increases safety and reduces toxic emissions in the event of a fire.

This wire meets the BS 3G 210:1996 standards, ensuring high-quality performance and compliance. The compact diameter of 0.95 mm facilitates easy routing in tight spaces. The 100-meter length reel makes it convenient for extended wiring applications.

The conductor is silver-plated copper for enhanced conductivity and corrosion resistance. The PTFE jacket material is flame retardant, low smoke, and halogen free for safety in harsh conditions. Operating temperature range from -75°C to 200°C covers a wide variety of environments.

Electrical rating of 300 volts suits many industrial and laboratory applications. Meets BS 3G 210:1996 for assured quality and performance. Compact outer diameter of 0.95 mm allows flexible installation in constrained areas.

Seven strands of 0.2 mm diameter make a flexible and robust core conductor. Type A connector wire sub type is suitable for equipment wiring. The 100-meter length ensures suitability for large or multiple projects.

This RS PRO harsh environment wire is engineered to provide dependable service where contamination, temperature extremes, and mechanical demands challenge typical wiring. It is heavily used in industrial, HVAC, automotive, aerospace, laboratory, and commercial settings.
