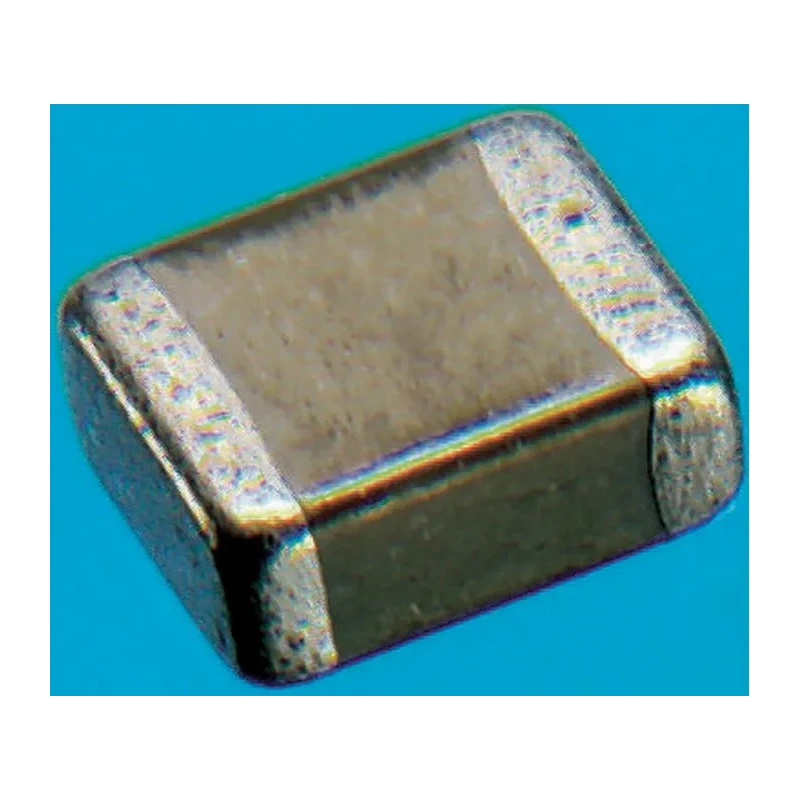

KEMET 470 pF Multilayer Ceramic Capacitor, 2kV DC, ±5% Tolerance, Surface Mount, 1812 Case C1812X471JGGACTU

Free Delivery in India | Lowest Global Shipping Charges

KEMET 470 pF Multilayer Ceramic Capacitor, 2kV DC, ±5% Tolerance, Surface Mount, 1812 Case C1812X471JGGACTU

Name: KEMET 470 pF Multilayer Ceramic Capacitor, 2kV DC, ±5% Tolerance, Surface Mount, 1812 Case C1812X471JGGACTU
Brand: KEMET
SKU: 380624
Price: 0.83 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Voltage	2kV dc
Brand	KEMET
Height	1.6mm
Length	4.5mm
Model	C1812X471JGGACTU
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Construction	Stacked
Series	X FT-CAP
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	470pF
Minimum Operating Temperature	-55°C
Package/Case	1812
Dielectric	C0G
Automotive Standard	AEC-Q200

Key Features

This capacitor features a stacked construction with a reliable C0G dielectric.
It comes in an 1812 package size and is supplied on tape and reel for automated assembly.
Mount type is surface mount with solder termination ensuring strong mechanical and electrical performance.
Complies with automotive standard AEC-Q200, ensuring robust performance in automotive and industrial applications.
The capacitor operates reliably within a temperature range from -55°C to 125°C.
Features flexible termination system that minimizes board flex stress to reduce mechanical failures.
Its low ESR and ESL ensure high ripple current capability and thermal stability.
Typical applications include power supplies, telecom equipment, automotive electronics, industrial and medical control systems.

Product Description

KEMET C1812X471JGGACTU is a 470 pF multilayer ceramic capacitor designed for surface mounting in electronic circuits requiring high reliability and performance. Rated at 2kV DC voltage with a capacitance tolerance of ±5%, it suits applications demanding precise and stable capacitance.

The capacitor features a stacked construction and uses a C0G dielectric, known for excellent temperature stability and low losses. Its flexible termination system incorporates silver epoxy between the base metal and nickel barrier layers, minimizing board flex stress and reducing the incidence of flex cracks, which can cause reliability issues such as low insulation resistance or short circuits.

Housed in an 1812 package case, it measures 4.5 mm in length, 3.2 mm in width, and 1.6 mm in height. The component is supplied on tape and reel packaging, enabling efficient automated placement on PCBs. It is fully compliant with automotive standard AEC-Q200 as well as IPC-7351, J-STD-020, EIA 481, EIA 556, and EIA 624 standards, making it suitable for automotive, industrial, and medical control applications.

This MLCC capacitor operates over a wide temperature range from -55°C to 125°C, providing high thermal stability, low equivalent series resistance (ESR), and low equivalent series inductance (ESL). These features ensure excellent ripple current handling capability and reliable performance in telemetry, power supplies, LCD backlighting, HID lighting, LAN/WAN interfaces, and analog or digital modems.

The C1812X471JGGACTU capacitor's robust construction also makes it ideal for use in harsh environments typical of automotive and industrial sectors, delivering durability and longevity with reduced failure rates.

This set contains one KEMET 470 pF Multilayer Ceramic Capacitor, model C1812X471JGGACTU. Explore more Multilayer Ceramic Capacitors in the Electronics & Electricals category on EnvMart.
