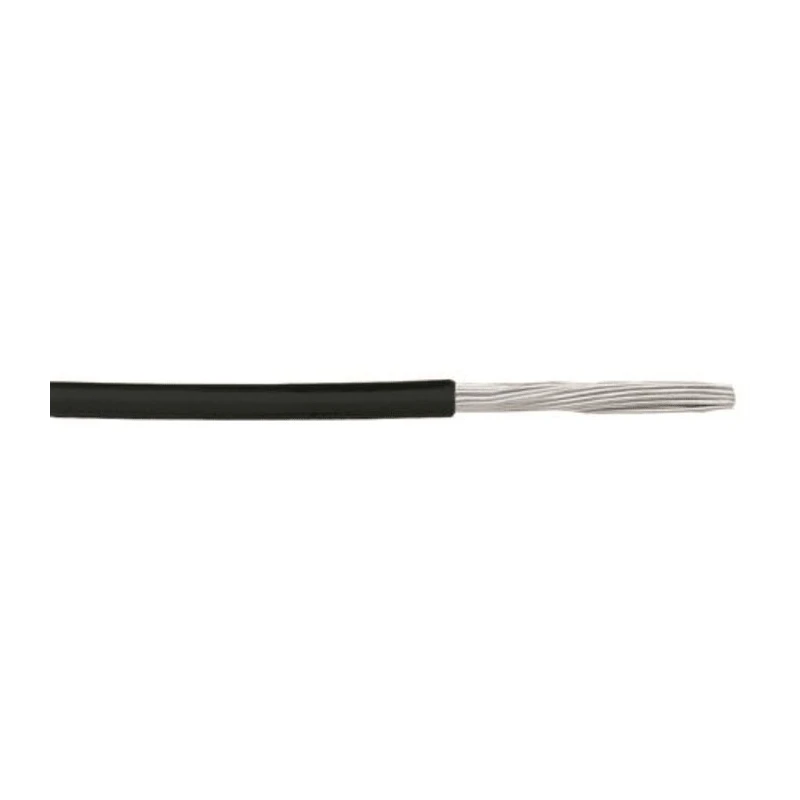

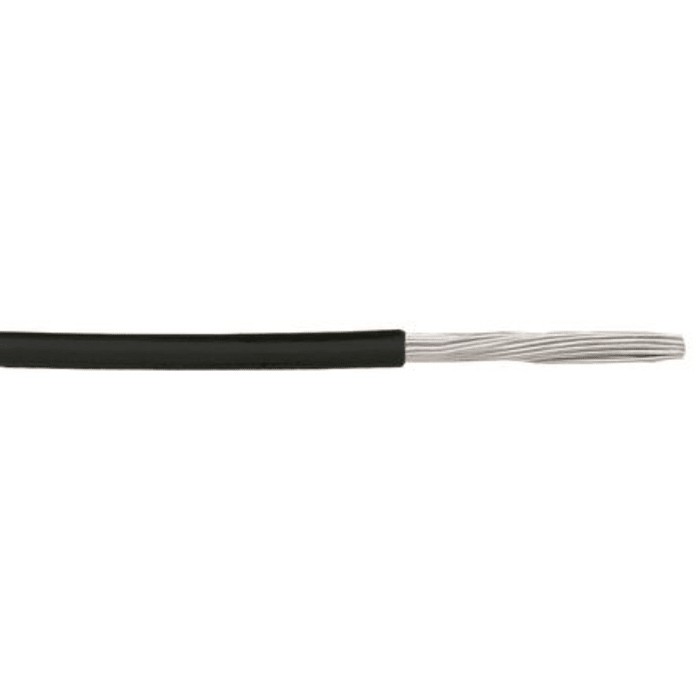

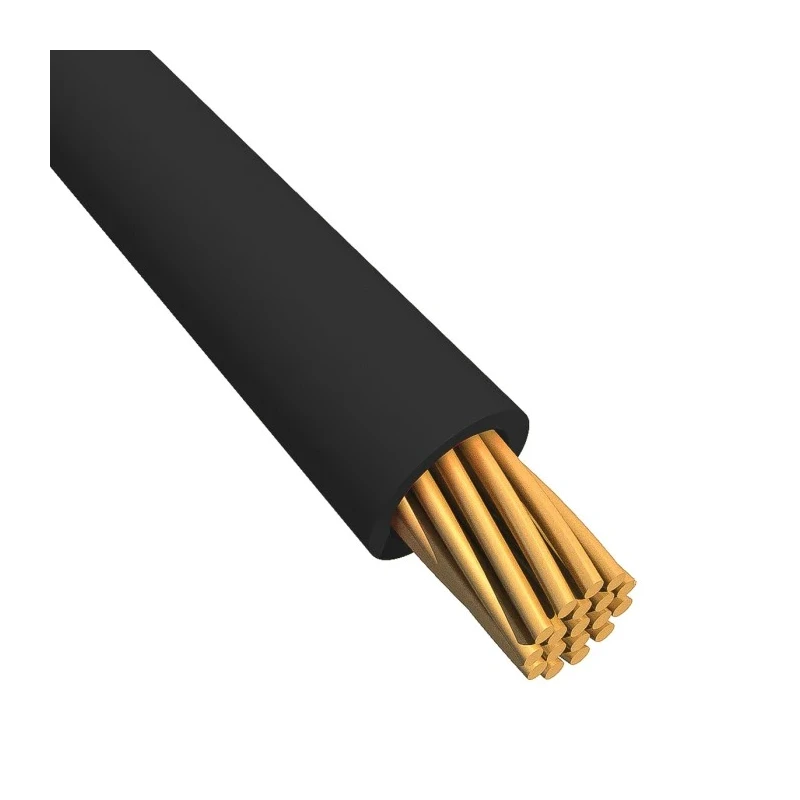

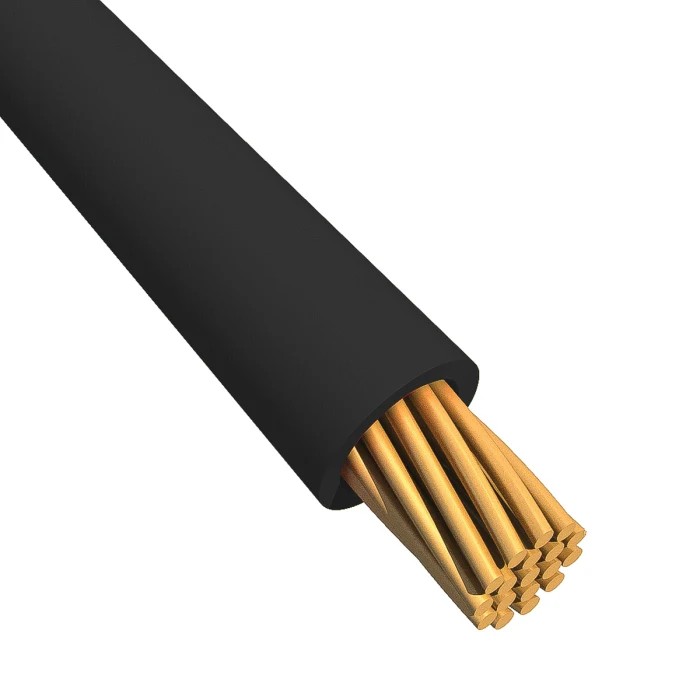

Alpha Wire Ecogen Ecowire Series Black 2.1 mm² Hook Up Wire, 14 AWG, 2.08 mm Core Strands, 30 m, MPPE, 6717S BK005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Series Black 2.1 mm² Hook Up Wire, 14 AWG, 2.08 mm Core Strands, 30 m, MPPE, 6717S BK005

Name: Alpha Wire Ecogen Ecowire Series Black 2.1 mm² Hook Up Wire, 14 AWG, 2.08 mm Core Strands, 30 m, MPPE, 6717S BK005
Brand: ALPHA WIRE
SKU: 380341
Price: 95.04 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
CROSS SECTIONAL AREA	2.1mm²
Model	6717S BK005
Cable Length	30m
Series	Ecogen Ecowire
Outside diameter	2.18mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Sub Type	Standard EcoWire
Minimum Operating Temperature	-40°C
Jacket Material	MPPE
Standards/Approvals	CE, CSA, UL
Jacket Colour	Black
Fire Behaviour	Flame Retardant, Halogen Free, Heavy Metal, Low Smoke Halogen Free, REACH compliant, RoHS Compliant
American Wire Gauge	14AWG
Number of Strands	1
Core Strands	1 x 2.08mm
Size of Strands	2.08mm

Key Features

The EcoWire series features improved environmental sustainability with fully recyclable MPPE insulation.
Its flame retardant, halogen free jacket meets UL VW-1 flame rating and RoHS compliance standards.
The conductor is made of high-quality copper with a single 2.08 mm strand size.
Designed for 600 V operating voltage and temperatures ranging from -40°C to 105°C.
Reduction in diameter and weight compared to traditional PVC insulated wires.
Flame behavior ensures enhanced safety with low smoke and heavy metal free composition.
Suitable for applications in control panels, automotive wiring, electronic equipment, and appliances.
The 30 meter cable length is ideal for small to medium wiring projects.

Product Description

Alpha Wire 6717S BK005 EcoWire Series Black Hook Up Wire is a 2.1 mm² (14 AWG) single core cable featuring a black MPPE jacket and copper conductor with 2.08 mm core strands. This 30 meter long Hook Up Wire is engineered for industrial and commercial electrical wiring applications requiring high dielectric strength and environmental sustainability.

The EcoWire series represents Alpha Wire's advancement in eco-friendly wiring solutions by utilizing modified polyphenylene ether (MPPE) insulation that is fully recyclable, lightweight, and thinner than conventional PVC insulation, delivering comparable electrical performance with reduced environmental impact.

The jacket material offers flame retardant protection conforming to UL VW-1 rating, halogen free, low smoke emission, and heavy metal free properties alongside compliance with RoHS, REACH, CE, CSA, and UL safety standards. This makes it suitable for use in harsh and regulated environments.

The conductor is high-purity copper with a single strand constructed at 2.08 mm diameter, designed to carry nominal operating voltages up to 600 V with maximum operating temperature of 105°C and minimum operating temperature of -40°C. These ratings make the wire ideal for use in control panels, automotive wiring harnesses, meters, ovens, computers, electronic devices, business machines, and household appliances.

The reduction in jacket diameter by up to 45% compared to PVC reduces space requirements and weight by up to 40%, facilitating easier handling and installation. The EcoWire Plus variant (not this model) offers superior resistance to oils and chemicals for specialized use cases.

Fully recyclable MPPE insulation reduces environmental footprint. Flame retardant and halogen free jacket ensures safety and compliance. Copper conductor with 2.08 mm single core strand offers reliable conductivity. Rated for 600 V operation with temperature range from -40°C to 105°C.

Compact diameter and light weight improve installation efficiency. Certified to CE, CSA, UL standards supporting global applications.

The 30 meter length supply reel meets typical wiring requirements for industrial automation, HVAC control, and electronic manufacturing applications. Compatibility with Alpha Wire’s FIT heat-shrink tubing and wire management systems offers integrated installation solutions.

Explore the Alpha Wire EcoWire range and related Wires & Cables categories at EnvMart for efficient, eco-friendly wiring solutions engineered for performance and safety.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The cross-sectional area of this hook up wire is 2.1 mm², which corresponds to a 14 AWG rating.

The maximum operating temperature for this model is 105°C.

This wire features MPPE insulation, which is fully recyclable and offers improved environmental sustainability compared to traditional PVC insulation.

This hook up wire is rated for a maximum operating voltage of 600 V.

The outside diameter of this wire is 2.18 mm.

This wire complies with several safety standards including CE, CSA, and UL.

The length of this hook up wire is 30 meters.

The conductor of this wire is made of high-purity copper.

Yes, this wire is suitable for automotive wiring harnesses as well as other applications like control panels and electronic devices.

The minimum operating temperature for this model is -40°C.

Yes, this wire is flame retardant, halogen free, and emits low smoke, making it safer in case of fire.

The conductor has a single strand constructed at a diameter of 2.08 mm.
