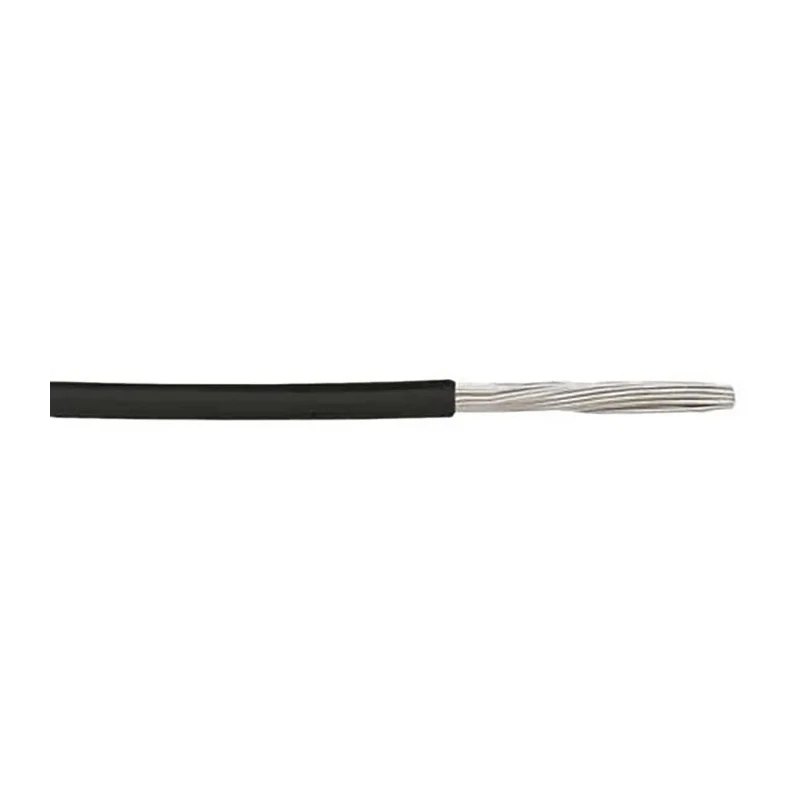

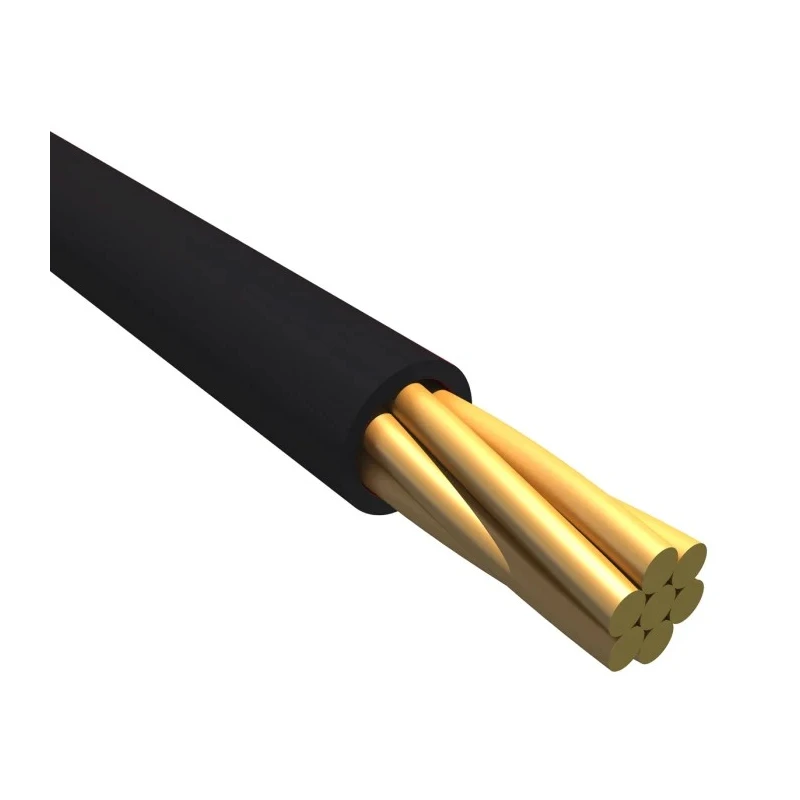

RS PRO Ecogen Ecowire Plus Series Black 0.08 mm² Hook Up Wire, 28 AWG, 7/0.12 mm Core Strands, 305 m, MPPE 6820 BK001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.08mm² |
| Model | 6820 BK001 |
| Cable Length | 305m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 0.79mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.031 Inch (0.79 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 28 AWG (0.09mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke |
| American Wire Gauge | 28AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.12mm |
| Size of Strands | 0.12mm |
| Stranding | 7/36 (7 x 0.12) |
Key Features
- Constructed with copper conductor strands providing excellent electrical conductivity.
- Black MPPE jacket offers flame retardant, halogen free, and low smoke properties.
- Wire suitable for voltage rating of 300 V and temperature range from -40°C to 110°C.
- Designed for demanding environments with enhanced fluid resistance and reduced wall thickness.
- Complies with CE, ISO 6722, RoHS, and REACH standards for safety and environmental compliance.
- EcoWire Plus insulation is lightweight, tough, and easily recyclable without hazardous materials.
- Ideal for solar, transportation, wind power, industrial, and medical wiring applications.
Product Description
Alpha Wire 6820 BK001 Ecogen Ecowire Plus Series Black 0.08 mm² Hook Up Wire is a premium quality, 28 AWG electrical wire with 7/0.12 mm stranded copper conductors and 305 meter length.

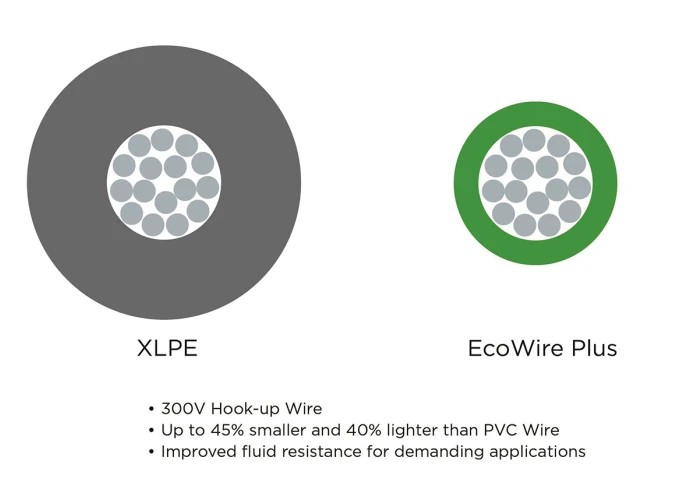

This hook-up wire features a modified polyphenylene ether (MPPE) insulation that provides superior dielectric strength with reduced wall thickness, making it lighter and tougher than traditional PVC insulated wires.
The black jacket is flame retardant, halogen free, and low smoke producing, ensuring safety in industrial environments and compliance with strict environmental standards such as RoHS and REACH.
Rated for 300 V and capable of operating in temperatures from -40°C to +110°C, this wire is designed for demanding factory and industrial automation applications where fluid resistance is essential.
Compliant with CE and ISO 6722 standards, the Ecogen Ecowire Plus wire is 100% recyclable and free from hazardous heavy metals, helping manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.
Copper stranded conductor with 7 strands of 0.12 mm diameter. 305 meter length suitable for extensive wiring installations. MPPE insulation for enhanced mechanical and chemical resistance. Flame retardant, halogen free, low smoke for improved safety.
Wide temperature and voltage rating suitable for industrial use. Eco-friendly recyclable insulation material. Complies with ISO 6722 and other international standards.
This Alpha Wire Ecogen Ecowire Plus hook-up wire is ideal for use in solar power systems, transportation equipment, wind power installations, industrial machinery, and medical devices, offering reliable electrical performance and environmental sustainability.
Explore our full range of wires and cables in the Electronics & Electricals category at EnvMart for all your industrial wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hook-up wire has a voltage rating of 300 V.
It operates within a temperature range of -40°C to +110°C.
The wire has an outside diameter of 0.79 mm and a wire diameter of 0.031 inch (0.79 mm).
This model comes in a length of 305 meters.
The conductor is made of copper, specifically with 7 strands of 0.12 mm diameter.
It features modified polyphenylene ether (MPPE) insulation, which is lightweight and tough.
Yes, it complies with CE, ISO 6722, RoHS, and REACH standards for safety and environmental compliance.
The jacket is flame retardant, halogen free, and produces low smoke.
It is ideal for use in solar power systems, transportation equipment, wind power installations, industrial machinery, and medical devices.
The cross-sectional area of the wire is 0.08 mm².
The wire has 7 strands of 0.12 mm diameter each.
The insulation thickness is 0.008 inch (0.20 mm).
