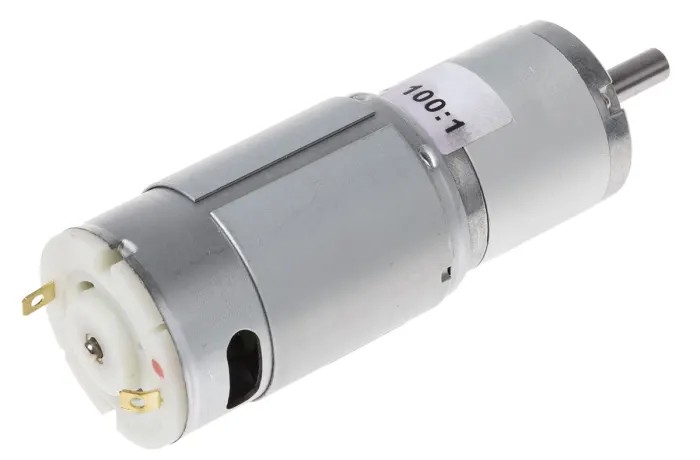

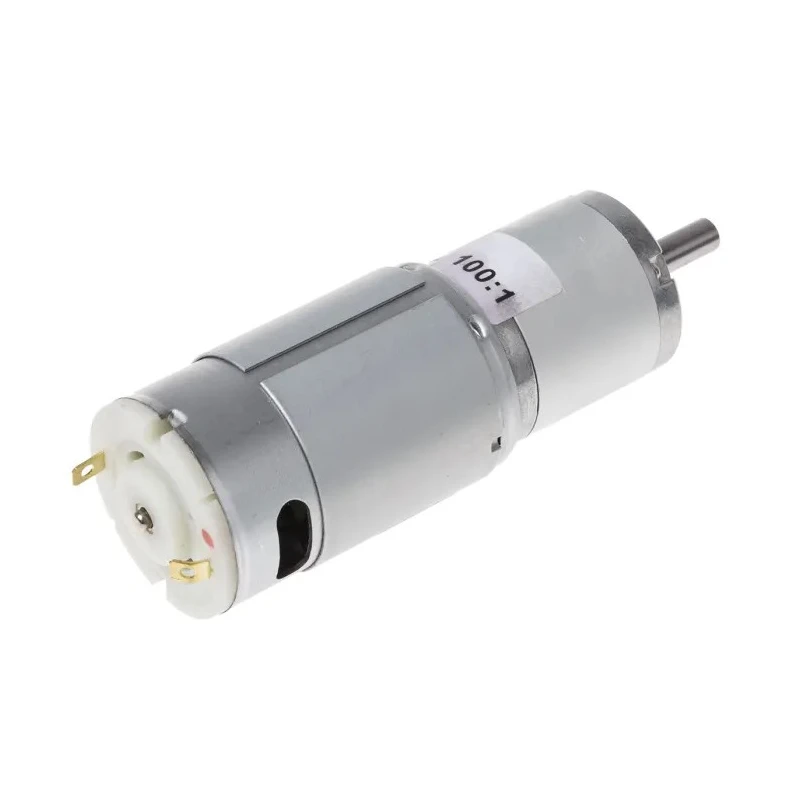

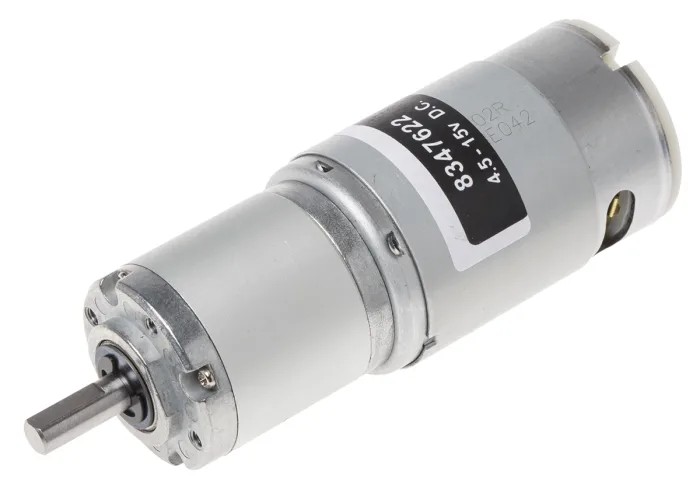

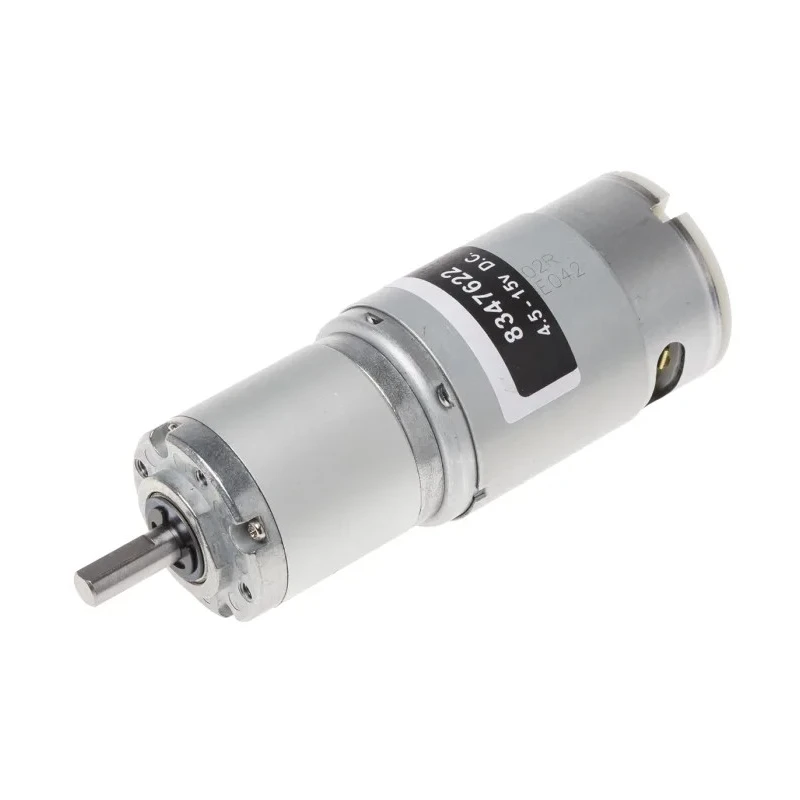

RS PRO Brushed Geared DC Geared Motor 12.8 W, 12V DC, 98 Ncm Torque, 71 RPM, 6 mm Shaft Diameter 834-7622
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Material | Metal |
| Operating Temperature Range | -10°C → +60°C |
| Length | 91.5mm |
| Model | 834-7622 |
| Depth | 37mm |
| Width | 37mm |
| Mount Type | Screw |
| Current Rating | 1.6A |
| Series | 942D |
| Power Rating | 12.8W |
| Sub Type | Brushed Geared |
| Output Speed | 71rpm |
| Shaft Diameter | 6mm |
| Shaft Length | 16.3mm |
| Supply Voltage | 12V dc |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 98Ncm |
| Gearhead Type | Planetary |
| Core Construction | Iron Core |
Key Features
- This DC geared motor has a 6 mm diameter shaft and 16.3 mm shaft length for versatile mounting.
- It provides a maximum output torque of 98 Ncm with a speed of 71 rpm suitable for precise speed control.
- Constructed with metal housing and an iron core for enhanced durability in heavy-duty environments.
- Featuring a planetary gearhead and screw mount type for secure installation.
- Designed for operating temperature range from -10°C to +60°C to withstand industrial conditions.
- Current rating of 1.6 A ensures efficient electrical performance.
- Compact dimensions of 91.5 mm length, 37 mm width, and 37 mm depth fit constrained spaces.
- Compliance with RoHS standards guarantees restriction of hazardous substances.
Product Description
The RS PRO 834-7622 Brushed Geared DC Geared Motor is engineered for demanding industrial applications requiring durable, efficient motor solutions. This motor operates on 12V DC supply voltage delivering 12.8 W power output that balances energy consumption and mechanical performance.
Designed with a 6 mm diameter metal shaft and 16.3 mm shaft length, it supports various coupling and mounting configurations. The planetary gearhead enhances torque delivery providing a maximum output torque of 98 Ncm at a controlled output speed of 71 rpm, ideal for automation and control tasks.
Construction features include a metal housing with iron core providing robustness and longevity in heavy-duty operational environments. The screw mount type allows stable and vibration-resistant installation in machinery assemblies.
This motor meets RoHS compliance requirements, ensuring environmentally friendly design by restricting hazardous substances. It is suitable for industrial temperature conditions ranging from -10°C to +60°C.
Typical industrial uses include automation equipment, conveyor systems, packaging machinery, and other applications where precise speed and torque control are critical. This DC geared motor has a 6 mm diameter shaft and 16.3 mm shaft length for versatile mounting.
It provides a maximum output torque of 98 Ncm with a speed of 71 rpm suitable for precise speed control. Constructed with metal housing and an iron core for enhanced durability in heavy-duty environments. Featuring a planetary gearhead and screw mount type for secure installation.
Designed for operating temperature range from -10°C to +60°C to withstand industrial conditions. Current rating of 1.6 A ensures efficient electrical performance. Compact dimensions of 91.5 mm length, 37 mm width, and 37 mm depth fit constrained spaces.
Compliance with RoHS standards guarantees restriction of hazardous substances. Select RS PRO DC Geared Motors on EnvMart for reliable industrial motor solutions optimized for automation, manufacturing, and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power output of 12.8 W.
It provides a maximum output torque of 98 Ncm.
The operating temperature range is from -10°C to +60°C.
The motor has dimensions of 91.5 mm in length, 37 mm in width, and 37 mm in depth.
This model features a planetary gearhead.
The shaft diameter is 6 mm and the shaft length is 16.3 mm.
The current rating is 1.6 A.
It features a screw mount type for secure installation.
Yes, it complies with RoHS standards, ensuring the restriction of hazardous substances.
The motor is constructed with a metal housing and an iron core.
It operates on a supply voltage of 12V DC.
This model is suitable for applications such as automation equipment, conveyor systems, and packaging machinery.
