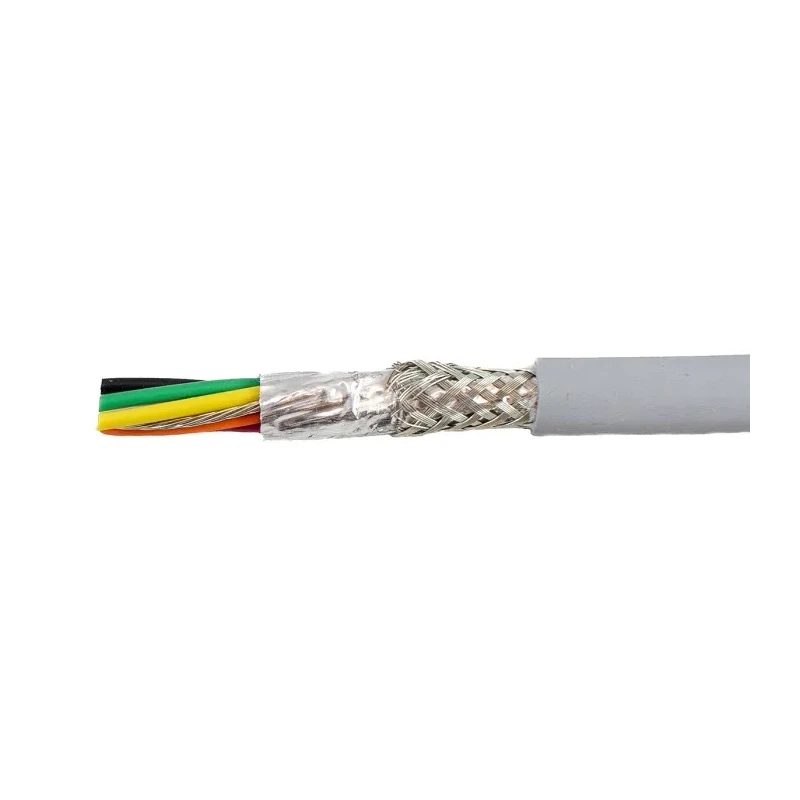

Alpha Wire Ecogen Ecocable Mini Control Cable, 6 Cores, 0.61mm² 20 AWG, Screened, 30 m, Grey Modified 78346 SL005

Alpha Wire 78346 SL005 Ecogen Ecocable Mini Control Cable is a high-quality screened multi-core cable featuring 6 tin copper wire conductors sized at 0.61 mm² (20 AWG), supporting industrial, electrical, and automation installations. The cable's grey modified polyphenylene ether (mPPE) jacket and insulation provide a low-profile, lightweight, and environmentally friendly solution, with 100% recyclability and halogen-free construction.

The conductor strands use 19 x 0.203 mm filaments which ensure electrical flexibility and strength. Designed for a nominal voltage rating of 300V, it performs consistently across a wide temperature range from -40°C up to 80°C, suitable for demanding industrial conditions.

This cable includes Supra-Shield Foil + Braid shielding using triple layers of aluminum/polyester/aluminum foil plus a tinned copper braid, delivering superior electromagnetic interference (EMI) suppression for sensitive communication and control systems. The outer diameter is 5.79 mm with an approximate jacket thickness of 0.38 mm, making it an optimized mini cable for space-constrained applications.

Alpha Wire’s Ecogen Ecocable Mini series offers excellent dielectric properties and mechanical robustness. The tin copper conductor material balances conductivity with corrosion resistance. The cable’s construction meets UL, CSA, and CE certifications, ensuring compliance with international safety and performance standards.

Typical applications include radio transmitters, electronic circuits, telecommunications, automation, studios, and usage in NFPA 79 compliant machinery wiring environments. The cable's specially engineered mPPE material reduces weight and thickness significantly compared to PVC equivalents, improving handling and installation efficiency.

Supplied in a 30 meter length, this cable is ideal for industrial automation, control, and communication wiring requiring screened protection in electrically noisy environments. Its environmentally conscious design makes it suitable for companies focusing on sustainable electrical components.

The cable has 6 cores with black, red, white, green, orange, and blue conductors. Constructed with tin-coated copper wire stranded in 19 strands of 0.203 mm diameter. Features a grey modified polyphenylene ether jacket and insulation, providing enhanced durability.

Rated for 300V and operates reliably from -40°C to 80°C temperature range. Screening is provided by Supra-Shield foil and braid shielding for excellent EMI performance. The cable is halogen free and 100% recyclable, supporting environmental safety.

Nominal diameter of the cable is 5.79 mm with a length of 30 meters. Certifications include UL, CSA, and CE standards. Explore the broad range of industrial Control Cables and automation components at EnvMart for comprehensive electrical solutions.
