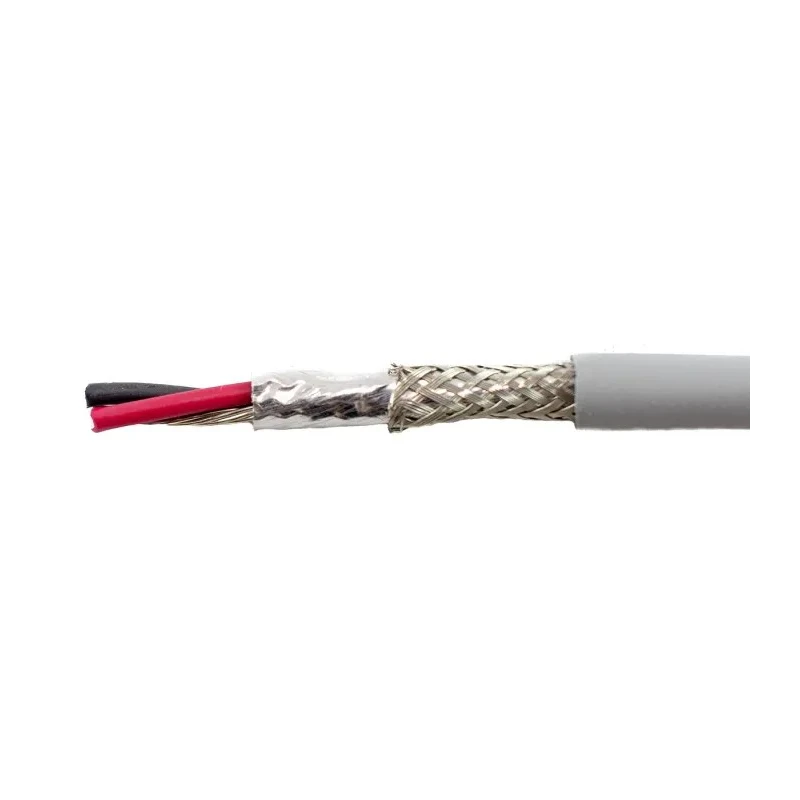

Alpha Wire Ecogen Ecocable Mini Control Cable 2 Cores 0.24mm² 24 AWG Screened 30 m Grey Modified Polyphenylene 78322 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78322 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.63mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.143 inch (3.63 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.127mm |
| Size of Strands | 0.127mm |
| Cable CSA | 0.24mm² |
| Conductors | 2, Black, Brown |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/36 |
Key Features
- Screened design with Supra-Shield foil and braid for excellent EMI performance.
- Constructed with tin copper wire conductors with 19 strands per core for flexibility.
- mPPE insulation and jacket ensure zero halogen content and low outgassing.
- Temperature rating from -40°C to +80°C for versatile environmental resilience.
- Suitable for use in telecommunications, automation, radio transmitters, and NFPA 79 applications.
- Lightweight and fully recyclable design with jacket thickness of 0.015 inch (0.38 mm).
- Nominal cable diameter is 3.63 mm with 24 American Wire Gauge size conductors.
- Compliant with UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, and RoHS standards.
Product Description
Alpha Wire 78322 SL005 Ecogen Ecocable Mini control cable is a high-quality screened 2-core cable with 0.24mm² (24 AWG) tin copper conductors. It features a modified polyphenylene ether (mPPE) jacket and insulation, providing a halogen-free, lightweight, and fully recyclable solution suitable for demanding industrial and electrical environments.
The cable’s Supra-Shield foil and braid construction delivers superior electromagnetic interference (EMI) protection, making it ideal for data communication in radio transmitters, electronic circuits, telecommunication systems, and automation setups. Its temperature range from -40°C to +80°C ensures reliable operation in extreme conditions.
The 30-meter length cable is designed with 19 strands per core, each strand measuring 0.127 mm diameter, ensuring flexibility and durability. The nominal diameter of 3.63 mm and light grey jacket color complement its practical installation and identification.
EcoCable Mini’s mPPE jacket material contributes to reduced wall thickness and lower weight compared to conventional cables with PVC insulation. This feature allows for easier handling and offers an environmentally friendly option with zero halogen and low outgassing properties.
Screened Supra-Shield foil and braid construction for enhanced EMI protection. Tin copper conductors with 19 strands for durability and flexibility. mPPE insulation and jacket deliver halogen-free, lightweight design. Operating temperature range from -40°C to +80°C for demanding applications.
Suitable for industrial machinery and NFPA 79 compliant applications. Nominal diameter 3.63 mm and jacket thickness 0.015 inch (0.38 mm). Standards certified: UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS.
This Alpha Wire Control Cable is engineered for reliable industrial automation, communication, and control systems requiring high-performance wiring solutions. It meets stringent safety and environmental regulations while providing excellent electrical characteristics.
Explore the full range of industrial wiring cables and components at EnvMart for dependable and certified solutions tailored to your technical needs and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this control cable is 80°C.
The nominal diameter of this model is 3.63 mm.
It uses modified polyphenylene ether (mPPE) for its insulation and jacket, which is halogen-free.
This control cable has 2 cores.
The voltage rating of this cable is 300V.
It complies with UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, and RoHS standards.
The length of this control cable is 30 meters.
Each core of the cable contains 19 strands.
The conductors are made of tin copper wire.
The jacket thickness of this cable is 0.015 inch (0.38 mm).
The minimum operating temperature for this cable is -40°C.
This control cable is suitable for telecommunications, automation, radio transmitters, and NFPA 79 applications.
