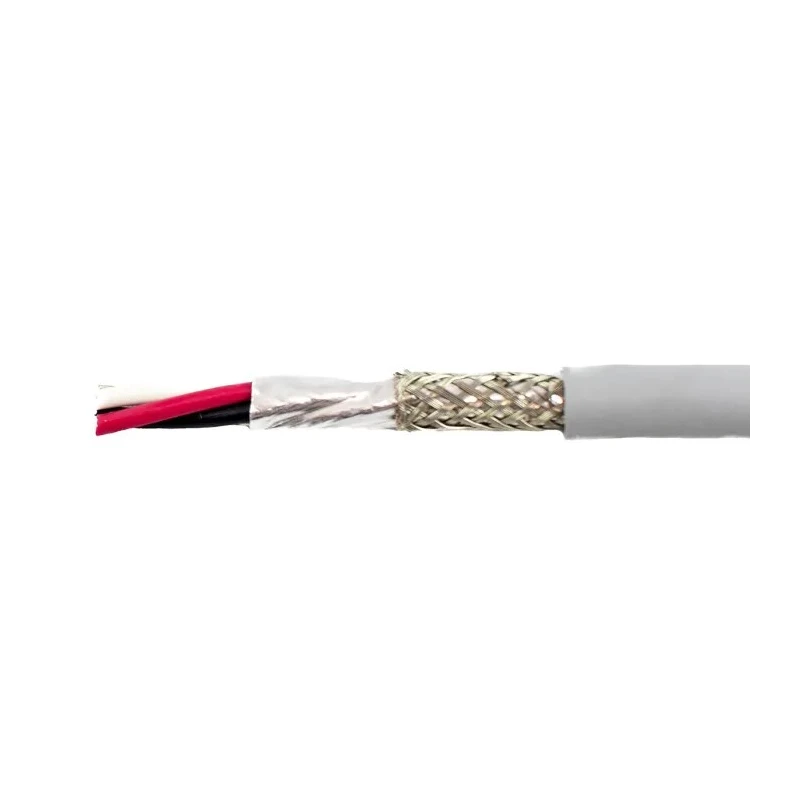

Alpha Wire Ecogen Ecocable Mini Control Cable 3 Cores 0.09mm² 28 AWG Screened 30 m Grey Modified Polyphenylene 78303 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78303 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.3mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.130 inch (3.30 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 28AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.079mm |
| Size of Strands | 0.079mm |
| Cable CSA | 0.09mm² |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/40 |
Key Features
- Designed for industrial control applications with 3 color-coded black, brown, and red cores.
- Constructed with tinned copper conductors to enhance corrosion resistance.
- Features a screened design combining Supra-Shield foil and braid for excellent EMI/RFI reduction.
- Operates reliably within a temperature range of -40°C to +80°C.
- Jacket and insulation made from durable, halogen-free modified polyphenylene ether material.
- Cable diameter is 3.3 mm with a 0.015 inch jacket thickness ensuring flexibility and protection.
- Suitable for industrial automation, telecommunication, and electronic circuit installations.
- Complies with UL, CSA, and CE standards ensuring safety and reliability.
Product Description
Alpha Wire 78303 SL005 Ecogen Ecocable Mini Control Cable is a high-performance screened control cable designed for industrial, automation, and telecommunication applications. It consists of 3 cores with a conductor size of 0.09mm² (28 AWG) and is 30 meters in length. The cable jacket and insulation use modified polyphenylene ether, providing a strong, lightweight, halogen-free jacket that withstands temperatures from -40°C to 80°C.
The cable incorporates a Supra-Shield foil and braid shield made from tinned copper, which offers superior electromagnetic interference (EMI) protection. Its stranded tinned copper conductors ensure excellent conductivity and corrosion resistance. The grey jacket color and precise dimensions (3.3 mm diameter, 0.015 inch thick jacket) enable easy identification and handling in complex installations.
This control cable is suitable for use in harsh environments and complies with rigorous standards including UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, and RoHS. Its eco-friendly composition allows it to be fully recycled, reducing environmental impact. The product is ideal for communication cables, radio transmitters, automation systems, electronic circuits, and NFPA 79 compliant industrial machinery safeguards.
Designed for industrial control applications with 3 color-coded black, brown, and red cores. Constructed with tinned copper conductors to enhance corrosion resistance. Features a screened design combining Supra-Shield foil and braid for excellent EMI/RFI reduction.
Operates reliably within a temperature range of -40°C to +80°C. Jacket and insulation made from durable, halogen-free modified polyphenylene ether material. Cable diameter is 3.3 mm with a 0.015 inch jacket thickness ensuring flexibility and protection.
Suitable for industrial automation, telecommunication, and electronic circuit installations. Complies with UL, CSA, and CE standards ensuring safety and reliability. Eco-friendly design made with 100% recyclable materials and low outgassing properties.
Choose Alpha Wire Ecogen Ecocable Mini for reliable, lightweight, and eco-conscious Control Cable applications in electrical power, manufacturing, and industrial automation sectors. Explore more cables and wires in EnvMart's Electrical and Automation Cables category for tailored solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The control cable has a conductor size of 0.09mm², which is equivalent to 28 AWG.
It operates reliably within a maximum temperature range of 80°C.
The jacket and insulation are made from modified polyphenylene ether, which is halogen-free.
This control cable is 30 meters in length.
It features 3 cores, which are color-coded black, brown, and red.
The outside diameter of the cable is 3.3 mm.
The cable features a screened design that combines Supra-Shield foil and braid for excellent EMI/RFI reduction.
It complies with UL, CSA, and CE standards, ensuring safety and reliability.
The minimum operating temperature is -40°C.
The voltage rating for this model is 300V.
Each conductor consists of 19 strands of tinned copper wire.
This model is suitable for industrial automation, telecommunication, and electronic circuit installations.
