Alpha Wire Ecogen Ecocable Mini Screened Control Cable, 2 Cores, 0.09mm² (28 AWG), 300 V, 30 m Length, Grey 78302 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78302 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.18mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.125 inch (3.18 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CSA, UL, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 28AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.079mm |
| Size of Strands | 0.079mm |
| Cable CSA | 0.09mm² |
| Conductors | 2, Black, Brown |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/40 |
Key Features
- The cable is screened with Supra-Shield foil and braid for enhanced EMI protection.
- It uses tinned copper multi-strand conductors with 19 strands per core for flexibility.
- The modified polyphenylene ether (mPPE) jacket is halogen-free and offers excellent chemical and thermal resistance.
- The cable operates reliably from -40°C to 80°C, suitable for diverse industrial environments.
- The compact design provides a nominal outside diameter of 3.18 mm with a lightweight, recyclable construction.
- It complies with CSA, UL, and CE standards ensuring safety and quality.
- Suitable for communication, automation, electronic circuits, and industrial machinery applications.
Product Description
Alpha Wire 78302 SL005 Ecogen Ecocable Mini screened control cable is a high-performance electrical cable with 2 cores of 0.09mm² (28 AWG) tinned copper wire, protected with a grey modified polyphenylene ether jacket for exceptional durability and environmental resistance. Designed to withstand voltages up to 300 V, it extends over 30 meters in length, making it ideal for industrial, automation, and communication applications.

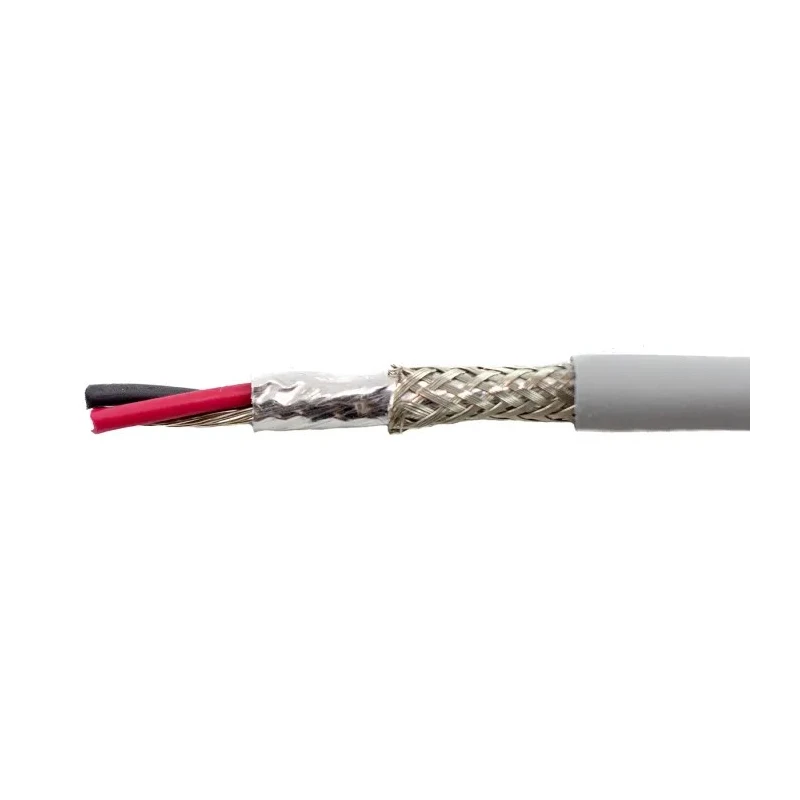

The cable features a Supra-Shield® foil plus braid screened construction, combining aluminium/polyester/aluminium foil with a tinned copper braid that significantly reduces electromagnetic interference (EMI). This shielding system ensures signal integrity in electrically noisy environments common in manufacturing and control systems.
The tinned copper conductors consist of 19 strands each of 0.079 mm diameter providing excellent flexibility and conductivity. The mPPE jacket and insulation are halogen-free, 100% recyclable, and significantly lighter and thinner than traditional PVC cables, offering environmental benefits alongside technical excellence.
Operating temperature ranges between -40°C and 80°C allow this cable to be used in demanding industrial and electronic environments. It meets stringent CSA, UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, and RoHS certifications, ensuring compliance with international safety and environmental standards.
This Ecogen Ecocable Mini cable is suitable for signal transmission in radio transmitters, telecommunication devices, automation equipment, studios, and NFPA 79 compliant industrial machinery, providing reliable performance even under harsh conditions.
The cable is constructed with 2 tinned copper conductors, each with 19 strands of 0.079mm diameter. mPPE insulation and jacket deliver halogen-free, lightweight, and recyclable properties. Screened with Supra-Shield foil and braid for superior EMI protection.
Temperature rating from -40°C to 80°C supports varied industrial use. Nominal outside diameter of 3.18 mm with a jacket thickness of 0.38 mm. Complies with global standards CSA, UL, CE, and RoHS. Intended for automation, communication, and industrial control applications.
Explore a wide range of Control Cables and wiring solutions on EnvMart for reliable electrical and automation performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a maximum voltage rating of 300 V, making it suitable for various industrial applications.
It operates reliably within a temperature range of -40°C to 80°C, making it suitable for diverse industrial environments.
This control cable features 2 cores, each made of tinned copper wire.
The nominal outside diameter of this cable is 3.18 mm, providing a compact design for installation.
The cable is constructed with tinned copper conductors and features a modified polyphenylene ether (mPPE) jacket, which is halogen-free and recyclable.
It complies with CSA, UL, CE, and RoHS standards, ensuring safety and quality in its applications.
The cable is screened with a Supra-Shield foil and braid, which provides enhanced electromagnetic interference (EMI) protection.
Each conductor consists of 19 strands of 0.079 mm diameter, providing flexibility and conductivity.
The cable extends over a length of 30 meters, suitable for various installation needs.
It is suitable for communication, automation, electronic circuits, and industrial machinery applications.
The jacket thickness of this cable is 0.38 mm, contributing to its lightweight design.
This control cable has an American Wire Gauge (AWG) rating of 28 AWG, indicating its wire size.
