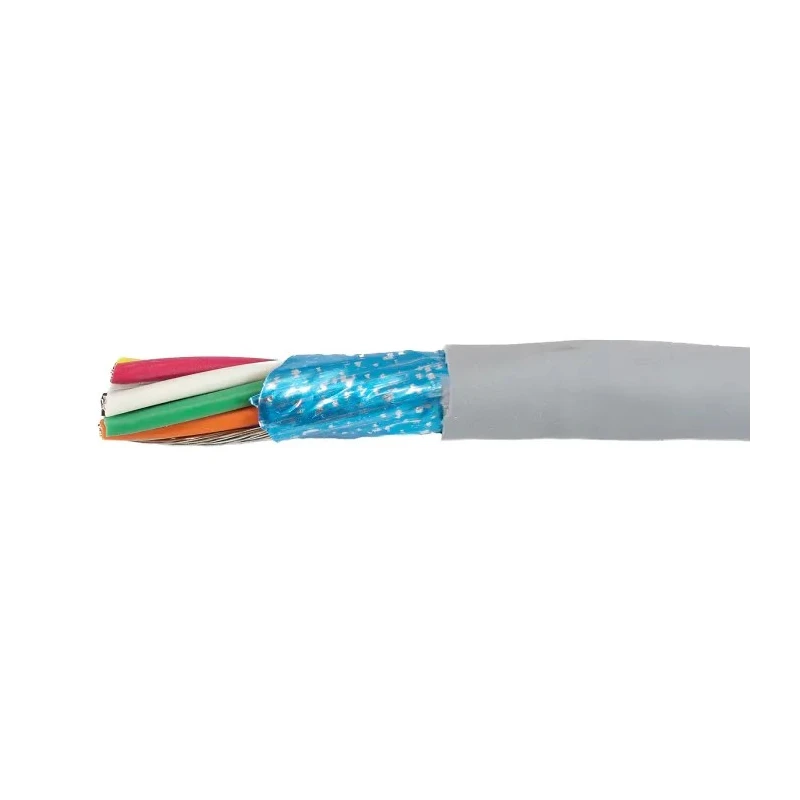

Alpha Wire Ecogen Ecocable Mini Control Cable 8 Cores 0.24mm² 24 AWG Screened 30m Grey Modified Polyphenylene 78128 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78128 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.27mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.168 inch (4.27 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.127mm |
| Size of Strands | 0.127mm |
| Cable CSA | 0.24mm² |
| Conductors | 8, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/36 |
Key Features
- EcoCable Mini range with 300 V foil shield delivering reliable signal integrity.
- Constructed with tin copper wire and screened aluminium/polyester foil shield.
- Operating temperature range from -40°C to 80°C for varied industrial environments.
- Halogen free, made with modified polyphenylene ether for lightweight and recycling benefits.
- Nominal diameter 4.27 mm and jacket thickness of 0.38 mm ensuring compact design.
- Stranding of 19 strands per conductor with 24 AWG American Wire Gauge size.
- Suitable for communication, automation, electronic circuits, and NFPA 79 industrial machinery standards.
- Compliant with UL, CSA, CE standards and RoHS, REACH environmental directives.
Product Description
Alpha Wire 78128 SL005 Ecogen Ecocable Mini Control Cable is a high-performance screened control cable featuring 8 cores with 0.24mm² (24 AWG) stranded tinned copper conductors. The cable is shielded with an aluminium/polyester foil shield combined with a tin copper drain wire to provide resistance against electromagnetic interference (EMI), ensuring robust data communication and control signal transmission in industrial, automation, and electronic equipment applications.
This cable is jacketed in grey modified polyphenylene ether (mPPE), a halogen-free thermoplastic that is lighter, thinner, and fully recyclable compared to traditional PVC cables. The mPPE jacket and insulation allow for a compact diameter of 4.27 mm and a jacket thickness of 0.38 mm, contributing to easier cable management in space-restricted environments.
Designed for reliable operation at voltages up to 300 V, and temperature extremes ranging from -40°C to +80°C, this screened control cable suits industrial automation, telecommunication, radio transmitters, studios, and electronic circuits. The cable complies with UL AWM 21460, UL VW-1, CSA I A/B FT1, CE requirements, and environmental standards including RoHS and REACH.
The construction features 19 strands of 0.127 mm diameter wire per conductor, providing excellent flexibility and conductivity. The 30 meter length makes it ideal for extensive control wiring applications.
EcoCable Mini 300 V foil shielded multiconductor control cable with 8 colour-coded cores. Stranded tinned copper conductors with 24 AWG size and 19 strands improve flexibility and corrosion resistance. Grey mPPE jacket provides environmental and mechanical protection while being halogen free.
Wide temperature rating from -40°C to +80°C ensures suitability for harsh industrial conditions. Certified compliant with UL, CSA, CE, RoHS, REACH, and NFPA 79 standards. Compact outside diameter of 4.27 mm and light weight facilitates easy installation.
Alpha Wire's Ecogen Ecocable Mini Control Cable is an optimal choice for industrial communication and control wiring where weight, space, and environmental compliance are key considerations. Searching for high-quality Control Cables at EnvMart ensures secure and durable installations in electrical, automation, and manufacturing sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this control cable is 80°C.
The nominal diameter of the cable is 4.27 mm.
This model features 8 cores.
The voltage rating of this control cable is 300 V.
The cable is constructed with tinned copper wire and has a jacket made of modified polyphenylene ether (mPPE).
The cable length of this model is 30 meters.
This cable is shielded with an aluminium/polyester foil shield to provide resistance against electromagnetic interference (EMI).
The jacket thickness of this cable is 0.38 mm.
Yes, this cable complies with UL, CSA, CE standards, as well as RoHS and REACH environmental directives.
The minimum operating temperature for this cable is -40°C.
Each conductor contains 19 strands of 0.127 mm diameter wire.
This control cable is suitable for communication, automation, electronic circuits, and NFPA 79 industrial machinery standards.
