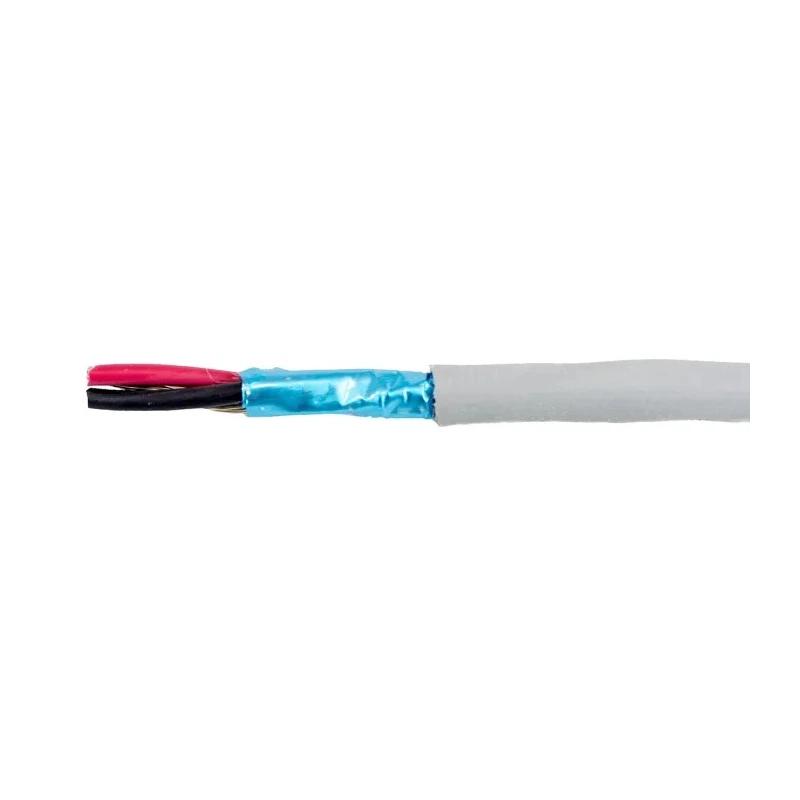

Alpha Wire Ecogen Ecocable Mini Screened Control Cable, 2 Cores, 0.09mm² 28 AWG, 300V, 30m, Grey Modified 78102 SL005

Alpha Wire 78102 SL005 Ecogen Ecocable Mini screened control cable is a high-performance electrical cable designed for varied industrial and communication applications. Featuring 2 cores of stranded tin copper wire with 28 AWG (0.09mm²) gauge, it supports nominal voltages of up to 300V and offers a cable length of 30 meters.

The cable uses a modified polyphenylene ether (mPPE) jacket in grey, which is halogen free and designed to provide a lightweight, thinner alternative to conventional PVC jackets. This material delivers excellent dielectric properties, resulting in reduced cable diameter and weight, with a specific gravity of only 1.03.

With an operating temperature range from -40°C to +80°C, this cable is suitable for harsh industrial environments. The conductors are stranded with 19 strands of 0.079 mm diameter wire providing flexibility and high reliability. The cable assembly includes a foil shield made of aluminum/polyester with tinned copper drain wires, enhancing resistance against electromagnetic interference (EMI).

Alpha Wire's EcoCable Mini range is fully recyclable and meets several international standards including CE, UL (AWM 21460, VW-1), and CSA I A/B FT1, ensuring both safety and compliance. The cable is also zero halogen, reducing toxic emissions in case of fire, aligning with environmentally friendly specifications.

This product is ideal for use in industrial automation, telecommunications equipment, radio transmitters, electronic circuits, studios, and conforms to NFPA 79 standards for machine safety and fire hazards.

Key technical highlights include a nominal diameter of 2.49 mm, jacket thickness of 0.38 mm, insulation thickness of 0.18 mm, and stranded conductor construction with 19 strands per core.

Alpha Wire products are well-regarded for their quality and durability in rigorous industrial and laboratory environments. The cable features a modified polyphenylene ether grey jacket which is halogen free and environmentally friendly.

Stranded tin copper wire conductors provide flexible and reliable electrical conduction. The mPPE insulation and jacket enable a lightweight and smaller cable compared to PVC equivalents. Rated for temperatures ranging from -40°C to +80°C suitable for industrial environments.

Screened with aluminum/polyester foil and tinned copper wire to resist electromagnetic interference. Complies with CE, UL, and CSA standards ensuring safety and quality. The cable is 100% recyclable and has low outgassing properties ideal for environmentally conscious applications.

Designed for use in automation, telecommunications, radio transmitters, studios, and NFPA 79 compliant industrial machinery. Explore the wide range of Control Cables and industrial wiring solutions at EnvMart for professional and commercial applications.
