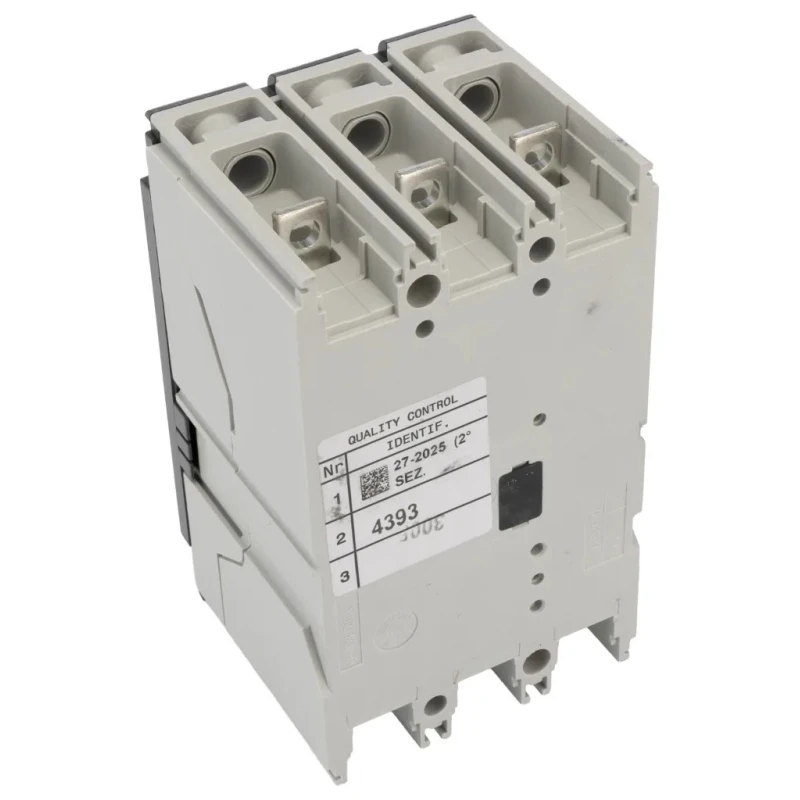

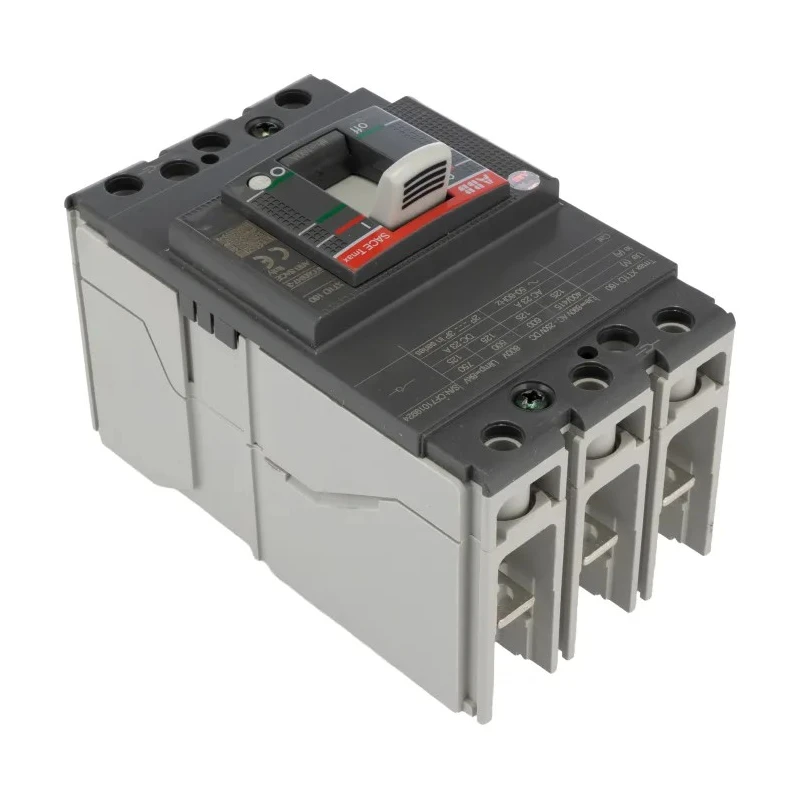

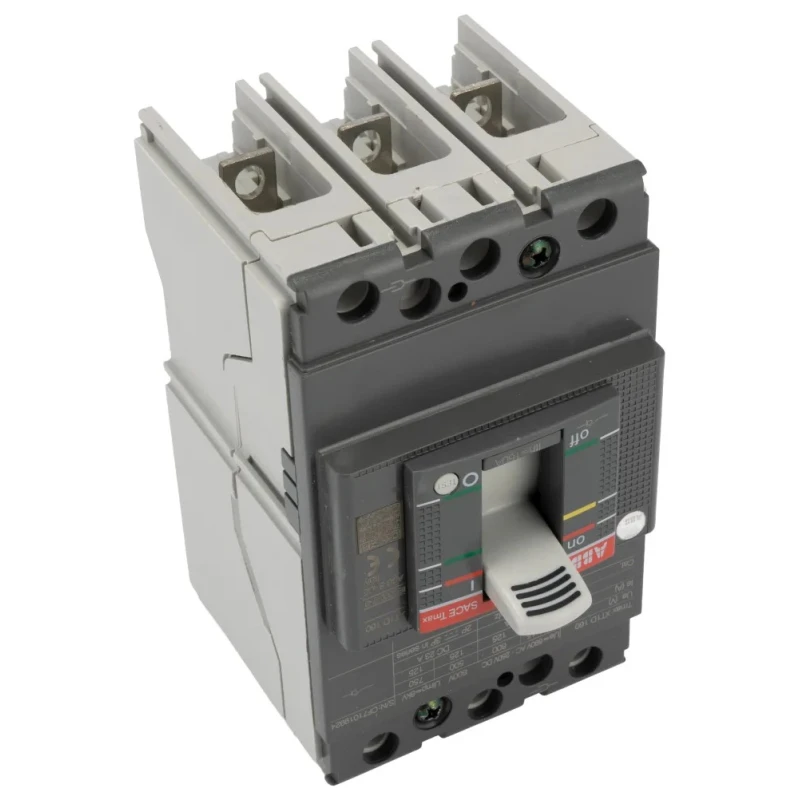

ABB Protecta XT1D Molded Case Circuit Breaker 3-Pole 250A, Breaking Capacity 36 kA, DIN Rail XT1D

Free Delivery in India | Lowest Global Shipping Charges

ABB Protecta XT1D Molded Case Circuit Breaker 3-Pole 250A, Breaking Capacity 36 kA, DIN Rail XT1D



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	Protecta
Brand	ABB
Height	130mm
Model	XT1D
Depth	70mm
Width	130mm
Mount Type	DIN Rail
Current Rating	250A
Series	XT1D
Breaking Capacity	36kA
Number of Poles	3
Standards/Approvals	CE
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Better World Claim	Designed for Disassembly

Key Features

High breaking capacity of 36 kA ensures efficient fault current interruption.
Rated for 690V AC and 500V DC for versatile electrical applications.
Toggle switch reset actuator allows easy operation after trips.
Type D tripping characteristic offers protection against overloads with high inrush currents.
Bolted terminal connections provide secure and reliable electrical contact.
Compact dimensions of 130mm width, 130mm height, and 70mm depth for flexible installation.
Suitable for power distribution in commercial and industrial environments.
Ideal for motor control and automated system safety applications.

Product Description

ABB Protecta XT1D Molded Case Circuit Breaker 3-Pole 250A, model XT1D, is a robust and reliable solution engineered to provide exceptional circuit protection in demanding industrial and commercial electrical systems. Rated for a breaking capacity of 36 kA, this MCCB is capable of safely interrupting fault currents, protecting wiring and equipment from damage during electrical faults.

The breaker supports both AC and DC applications with ratings of 690V AC and 500V DC, making it versatile for diverse setups. Its compact form factor, measuring 130mm in width and height, with a depth of 70mm, allows seamless integration in control panels using DIN rail mounting systems.

Equipped with a user-friendly toggle switch reset actuator, the device enables quick restoration of power after trips, minimizing downtime. The Type D tripping characteristic is specially designed to withstand high starting currents typical in motor and heavy machinery applications, reducing nuisance trips without compromising overload protection.

Bolted terminal connections ensure secure and stable electrical contacts, enhancing the reliability and safety of installations. This circuit breaker is compliant with CE standards and incorporates sustainability principles, including design for disassembly, supporting environmentally responsible practices.

Its application range includes power distribution in commercial facilities, motor control circuits in industrial environments, and automated systems that require reliable protection against overloads and faults.

High breaking capacity of 36 kA for reliable fault interruption. Rated for 690V AC and 500V DC for versatile use cases. Toggle switch reset actuator for operational convenience. Type D tripping characteristic to handle high inrush currents.

Bolted terminal connections to ensure secure electrical contact. Compact dimensions suitable for DIN rail mounting. CE certified and designed for sustainable disassembly. Ideal for power distribution, motor control, and automated safety.

Explore the ABB Protecta series and related circuit breakers on EnvMart for advanced electrical protection solutions designed for industrial, commercial, and manufacturing applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The breaking capacity of the ABB Protecta XT1D circuit breaker is 36 kA, allowing it to safely interrupt fault currents.

This model is rated for 690V AC and 500V DC, making it suitable for a variety of electrical applications.

The XT1D circuit breaker has 3 poles, providing effective circuit protection in three-phase systems.

The dimensions of this circuit breaker are 130mm in width, 130mm in height, and 70mm in depth, allowing for flexible installation.

This model uses DIN rail mounting, facilitating easy integration into control panels.

The toggle switch reset actuator allows for easy operation and quick restoration of power after trips, reducing downtime.

It features a Type D tripping characteristic, which is designed to handle high inrush currents typically found in motor applications.

The circuit breaker is compliant with CE standards, ensuring it meets necessary safety and performance regulations.

The current rating of this circuit breaker is 250A, suitable for various electrical loads.

It uses bolted terminal connections, providing secure and reliable electrical contact.

This circuit breaker is suitable for power distribution in commercial facilities, motor control circuits, and automated systems requiring reliable protection.

The ABB Protecta XT1D is manufactured in India, reflecting its origin in industrial electrical solutions.
