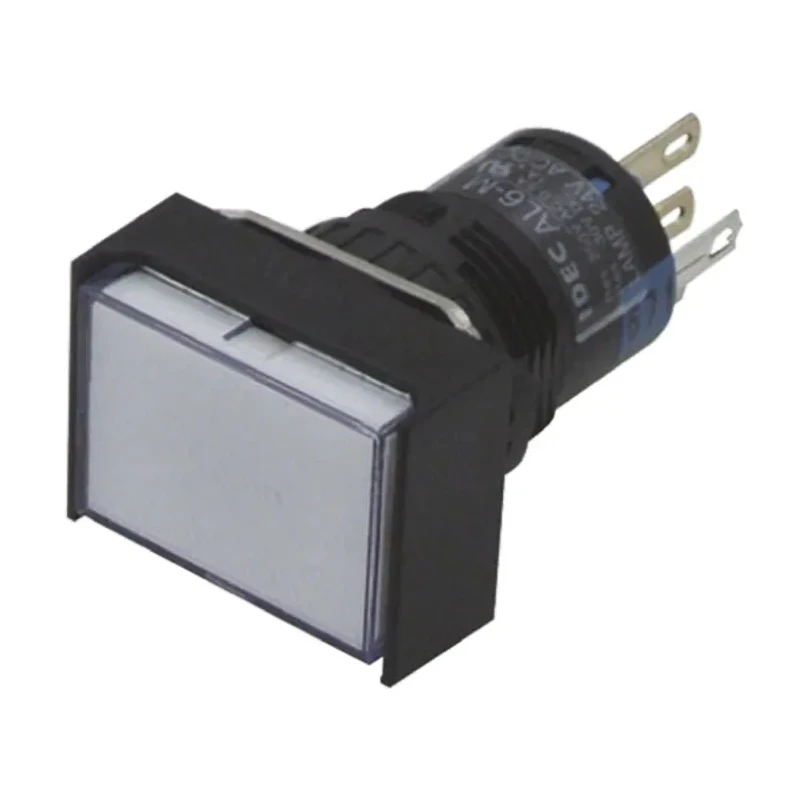

Idec AL Series Illuminated Push Button Switch, Momentary, Panel Mount, 16 mm Cutout, SPDT, White LED, IP65, 24 V AL6H-M14P-W

Idec AL6H-M14P-W is a high-quality illuminated Push Button Switch from the AL Series designed for panel mount applications. It features a momentary switch operation with a single pole double throw (SPDT) contact configuration, making it suitable for precise control and signaling in automation systems. The switch has a compact 16 mm panel cutout size which is ideal where space is restricted.

The actuator is green with a white LED illumination, providing clear visual feedback. Rated for 24 V dc and 250 V ac contact voltages with a maximum contact current of 1 ampere, this switch can be used in a variety of industrial environments.

Its IP65 rating ensures dust-tight and water-resistant operation, suitable for rugged industrial and manufacturing use cases including control panels, machinery, and HVAC systems. The operating temperature range from -25°C to 120°C allows use in both cold storage and high-temperature environments.

Physical dimensions are 33.5 mm in height, 24 mm in length, and 18 mm in width, enabling easy integration in compact panels. The switch includes quick connect and solder tag terminals to facilitate quick and reliable wiring connections.

This Idec AL Series switch is CSA and UL certified, ensuring compliance with international safety and quality standards. Its snap-action mechanism and illuminated feature make it ideal for PLC inputs, logic level switching, and applications requiring clear operator interface feedback.

Features a green actuator with white LED illumination. Momentary switch operation with SPDT contact configuration. 16 mm panel cutout size for space-saving installation. IP65 rated for dust and water resistance in industrial environments.

Operating temperature range of -25°C to 120°C. Contact ratings of 24 V dc and 250 V ac at 1 ampere current. Quick connect and solder tag terminals for ease of wiring. Compact dimensions: 33.5 mm height, 24 mm length, 18 mm width.

CSA and UL certified for safety and quality assurance. Ideal for control panels, machinery, PLC inputs, and automation use. Explore more high-quality switch options and industrial automation components on EnvMart to support your electrical and control system requirements.
