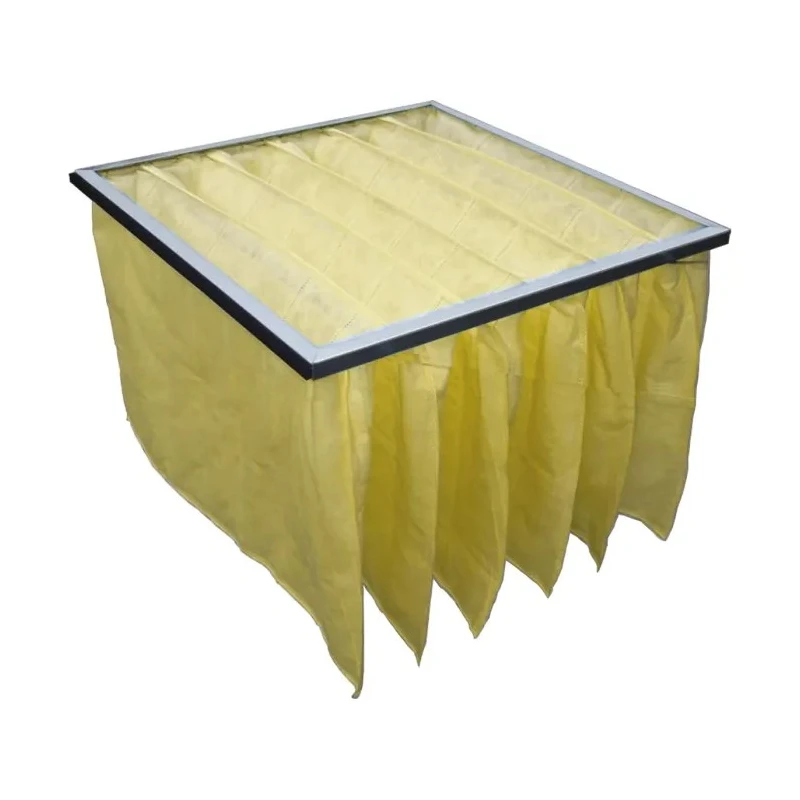

RS PRO Polypropylene Bag Filter F8 Grade 14 MERV Rating Yellow with 4 Pockets and Dimensions 287mm x 592mm x 500mm 827-9737

RS PRO 827-9737 Polypropylene Bag Filter is a high-efficiency HVAC air filter manufactured using 100% polypropylene synthetic electrostatically charged media mounted into a galvanised steel header frame measuring 287 mm width, 592 mm height, and 500 mm depth. This filter is designed for low-cost fine filtration applications.

The hydrophobic polypropylene media enables reliable performance even in damp atmosphere conditions. Safety is enhanced by rolled steel edges on the frames to prevent damage during installation and handling. The filter features an additional built-in pre-filter layer, delivering extended filter life by providing triple-filtration. Ultrasonically welded seams ensure the pockets are leak-free for consistent and efficient filtration.

This bag filter is rated F8 grade with a MERV rating of 14, achieving an average efficiency of 90% at 0.4 micron particle size according to the ASHRAE 52.2 testing standard. It supports a maximum airflow of 69.46 m³/h, initial pressure drop of 110 Pa, and a final pressure drop of 350 Pa, making it suitable for various HVAC applications including commercial and industrial settings.

The filter is colored yellow for easy identification and fabricated with galvanised steel for a robust frame. It complies with international standards including RoHS, ISO, and BS EN ensuring environmental compliance and quality assurance.

Typical use cases for the RS PRO Polypropylene Bag Filter include air conditioning systems, heating ventilation setups, and thermal management solutions in industrial, laboratory, and commercial environments where efficient air filtration is critical.

Constructed with 100% polypropylene synthetic electrostatically charged media. Hydrophobic media supports damp atmosphere operations. Galvanised steel frame with rolled steel safety edges. Includes an extra pre-filter layer for longer service life.

Ultrasonically welded seams eliminate filter leaks. Rated F8 grade with MERV 14 efficiency. Yellow color for easy identification. Dimensions: 287 mm width, 592 mm height, 500 mm depth. Explore more quality HVAC Air Filters and filtration products at EnvMart for reliable and efficient environmental control solutions.
