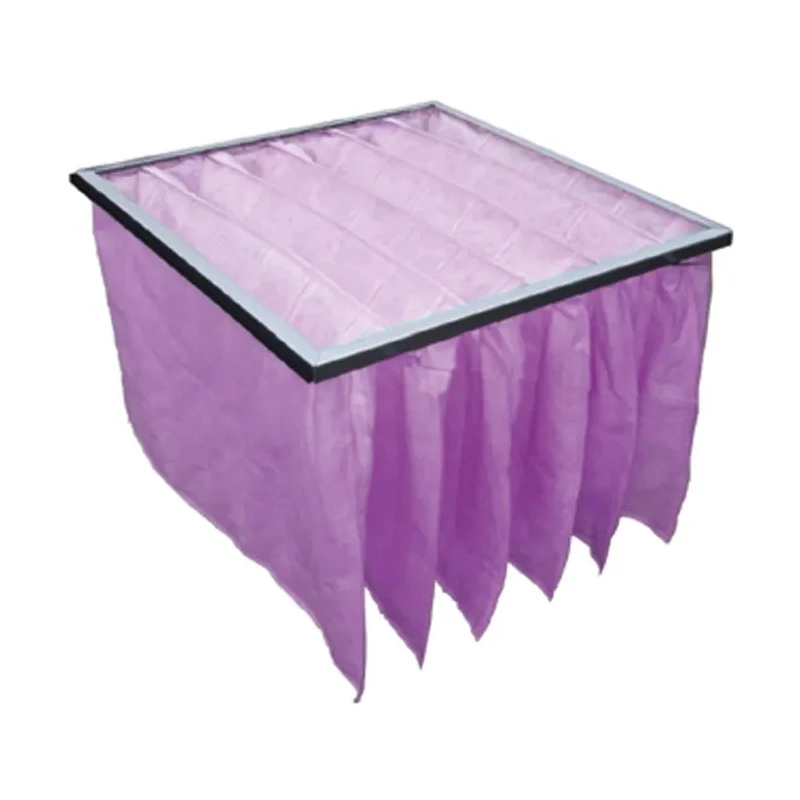

RS PRO Polypropylene Bag Filter F7 Grade 13 MERV Rating 287 mm x 592 mm x 500 mm 827-9728

RS PRO 827-9728 Polypropylene Bag Filter is designed for fine filtration applications in HVAC systems requiring low-cost, efficient air quality management. This bag filter features an F7 grade filter media combined with a 13 MERV rating to achieve fine particulate removal with 80% efficiency at 0.4 micron particle size, as per ASHRAE 52.2 test standards.

The filter media is made from 100% polypropylene synthetic material, which is electrostatically charged and hydrophobic, ensuring optimal filtration performance even in humid or damp conditions. The media is mounted within a robust galvanised steel frame that incorporates rolled safety edges to protect and prolong filter integrity during installation and use.

Its four ultrasonically welded pockets create leak-free filtration zones, preventing bypass and ensuring maximum capture of dust and airborne contaminants. The unique triple filtration layering and an embedded pre-filter extend the filter lifespan, reducing maintenance frequency and associated costs.

The RS Ecoflow bag filter series offers a maximum air flow of 69.46 cubic meters per hour, making it suitable for commercial and industrial HVAC applications. The filter's initial pressure drop is low at 105 Pascals, with final pressure drop measured at 350 Pascals, balancing filtration efficiency with energy consumption.

Physical dimensions include an actual width of 287 mm, height of 592 mm, and depth of 500 mm, with nominal sizes slightly larger (304.8 mm x 609.6 mm x 508 mm) for fitting variances. The header frame thickness is 20 mm. The pink color coding facilitates quick identification and compliance with quality standards such as RoHS, ISO, and BS EN norms.

These features make the RS PRO 827-9728 bag filter ideal for industrial, commercial, HVAC air conditioning and heating applications, contributing to improved indoor air quality, protection of HVAC components, and regulatory compliance.

Constructed with 100% polypropylene electrostatically charged media for enhanced filtration efficiency. Features a galvanised steel header frame with rolled safety edges for durability and safe installation. Four ultrasonically welded leak-free pockets extend filter life and improve capture efficiency.

Designed for maximum air flow of 69.46 m³/h with initial and final pressure drops of 105 Pa and 350 Pa respectively. Hydrophobic polypropylene media ensures reliable performance in damp environments. Colour coded pink for easy identification and compliance with RoHS, ISO, and BS EN standards.

Dimensions: actual width 287 mm, height 592 mm, depth 500 mm; nominal size slightly larger for fitting. Rated at ASHRAE 52.2 standard with fine efficiency of 80% at 0.4 micron particle size. Includes an extra built-in pre-filter layer and triple filtration for extended service life.
