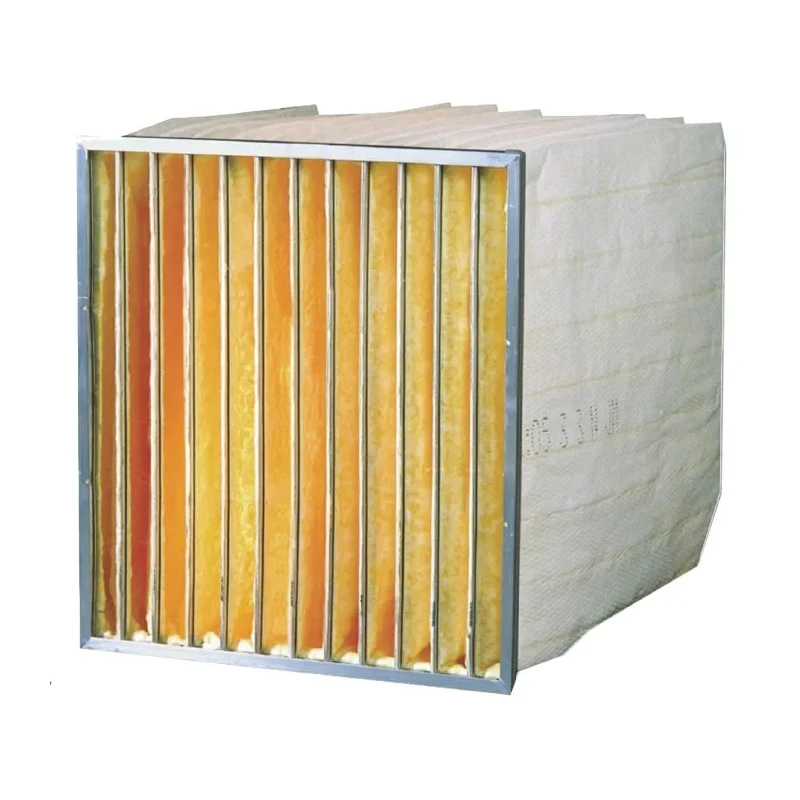

RS PRO Micro Glass Bag HVAC Air Filter F8 Grade 492mm Width 592mm Height 635mm Depth 827-9560

RS PRO 827-9560 Micro Glass Bag HVAC Air Filter F8 Grade measures 492 mm width, 592 mm height, and 635 mm depth. Designed for demanding HVAC applications, it ensures fine efficiency filtration performance with micro glass fiber media that effectively captures dust and soot particles.

This filter features a galvanized steel rigid header frame and collars that offer robust mechanical strength and long service life, especially suited for installation in sensitive environments such as hospitals, government buildings, laboratories, offices, theatres, and computer rooms.

The unit includes six conical-shaped pockets which are micro-stitched to open fully without contact, maximizing the media surface area of 4.8 square meters and enabling efficient airflow up to 2600 m³/h. Its F8 grade rating provides a minimum test efficiency of 75% @ 0.4 micron in accordance with BS EN 779:2012.

The filter dimensions correspond to nominal sizes of 508 mm width, 609.6 mm height, and 635 mm depth with 25 mm header size. A side gasket is standard for sealing, with additional gasket materials available separately for front or rear mounting frames.

Standards compliance includes ISO certification, BS EN designation, and RoHS compliance ensuring environmentally responsible manufacturing. The yellow color distinguishes the bag filter type, with galvanised steel used for case and header construction.

This product is ideal for multiple industrial and commercial HVAC systems requiring reliable air filtration to protect equipment and maintain air quality standards in critical indoor environments.

Constructed with micro glass fiber media providing fine filtration and durability. F8 filter grade rated for 75% minimum test efficiency at 0.4 micron particles. Galvanised steel header frame and collars enhance strength and longevity.

Features six conical-shaped pockets optimizing airflow and filter area of 4.8 square meters. Suitable for use in hospitals, laboratories, offices, theatres, and computer rooms. Compliant with ISO, BS EN, and RoHS standards ensuring quality and safety.

Maximum air flow capacity of 2600 cubic meters per hour for efficient performance. Initial pressure drop of 147 Pascals balances filtration and airflow resistance. Explore more HVAC Air Filters and related products at EnvMart for comprehensive filtration solutions.
