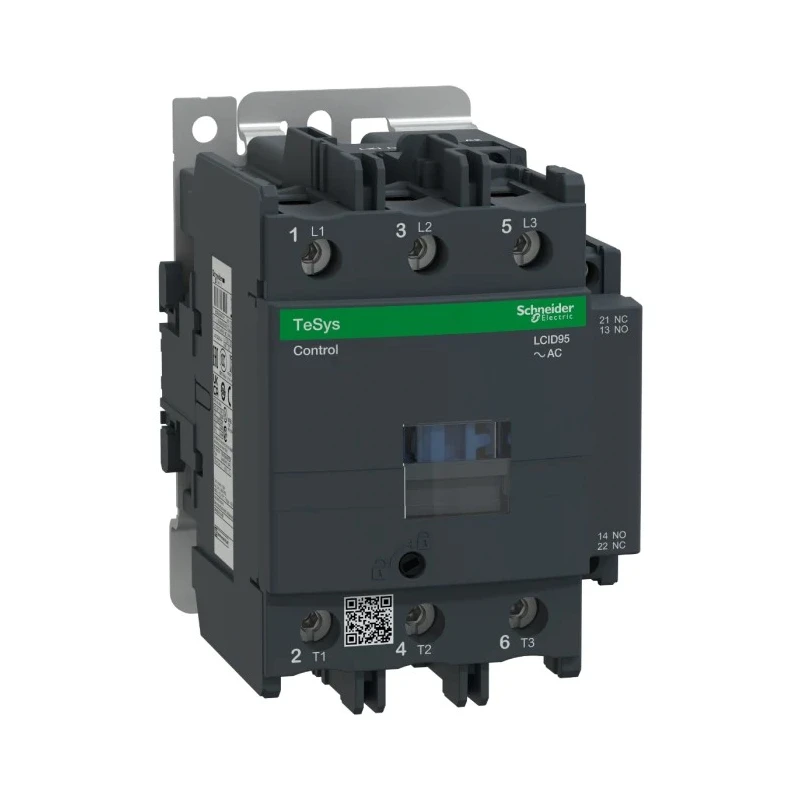

Schneider Electric TeSys LC1D Contactor, 3-Pole, 95A, 220V AC Coil, 7.2W Power Rating, 3 NO, 600V AC LC1D95M7
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D95M7 |
| Depth | 125mm |
| Width | 127mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 7.2W |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CCC, CSA, EAC, IEC, RoHS |
| Contact Voltage | 600V ac |
| Coil Voltage | 220V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 95A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 95A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Provides 3 normally open contacts for efficient switching.
- Operates with a coil voltage of 220V AC suitable for various industrial environments.
- Includes 1 normally open and 1 normally closed auxiliary contact as built-in standard.
- Compact design with dimensions 85mm length, 127mm width, and 125mm depth for easy DIN rail mounting.
- Rated for contact voltage 600V AC and operational current up to 95A.
- Operates reliably in temperatures ranging from -40°C to 70°C.
- Construction uses screw terminals for secure load and control connections.
- Certified to UL, CCC, CSA, EAC, IEC, and RoHS standards ensuring quality and safety.
Product Description
Schneider Electric LC1D95M7 TeSys Deca Contactor is a high-performance switching device designed for industrial motor control and resistive load applications. Featuring a 3-pole configuration with 3 normally open contacts rated at 95A, it operates efficiently using a 220V AC coil with a power rating of 7.2W at 50/60Hz frequency.
The device enables reliable motor starters with ratings up to 25HP for 200-208VAC, 30HP for 240VAC, and 60HP for 480-600VAC three-phase supplies. Its compact dimensions of 85mm length, 127mm width, and 125mm depth allow for easy DIN rail mounting or screw fixing in control panels.
Auxiliary contacts include one normally open and one normally closed, supporting additional control circuit flexibility. The contactor uses screw clamp terminals for both power and control connections, ensuring secure and vibration-resistant attachment.
Designed to operate in harsh industrial environments, it supports a temperature range from -40°C to 70°C and has operational rates up to 3600 cycles per hour, offering durability and dependable performance. It is certified to international standards including UL, CSA, IEC, CCC, EAC, and meets RoHS and REACh requirements as a Green Premium product.
This contactor is suitable for various applications including industrial motor control, HVAC systems, manufacturing automation, and other resistive load switching needs. Its robust construction and broad certification make it ideal for use in commercial, manufacturing, and electrical automation systems.
Provides 3 normally open contacts for reliable switching. Operates with a coil voltage of 220V AC at 7.2W power consumption. Includes 1 normally open and 1 normally closed auxiliary contact. Compact design with screw terminal connections.
Operates within a temperature range of -40°C to 70°C. Certified for UL, CCC, CSA, EAC, IEC, and is RoHS compliant. Suitable for motor control applications up to 95A and 600V AC contact voltage. Green Premium rated supporting sustainability and disassembly.
Supports operational cycles up to 3600 per hour ensuring long life. Mounts easily on DIN rails or by screws for flexible installation. Explore more Schneider Electric products and Contactors at EnvMart for reliable electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operational current for this model is 95A.
It operates with a coil voltage of 220V AC.
The contactor has dimensions of 85mm in length, 127mm in width, and 125mm in depth.
This model includes 1 normally open and 1 normally closed auxiliary contact.
The rated contact voltage is 600V AC.
It can operate reliably in temperatures ranging from -40°C to 70°C.
This contactor has a 3-pole configuration.
The power rating of the coil is 7.2W.
It can be mounted on DIN rails or fixed using screws.
It is certified to UL, CCC, CSA, EAC, IEC standards and is RoHS compliant.
This model is suitable for motor control and resistive load applications.
It supports operational rates of up to 3600 cycles per hour.
