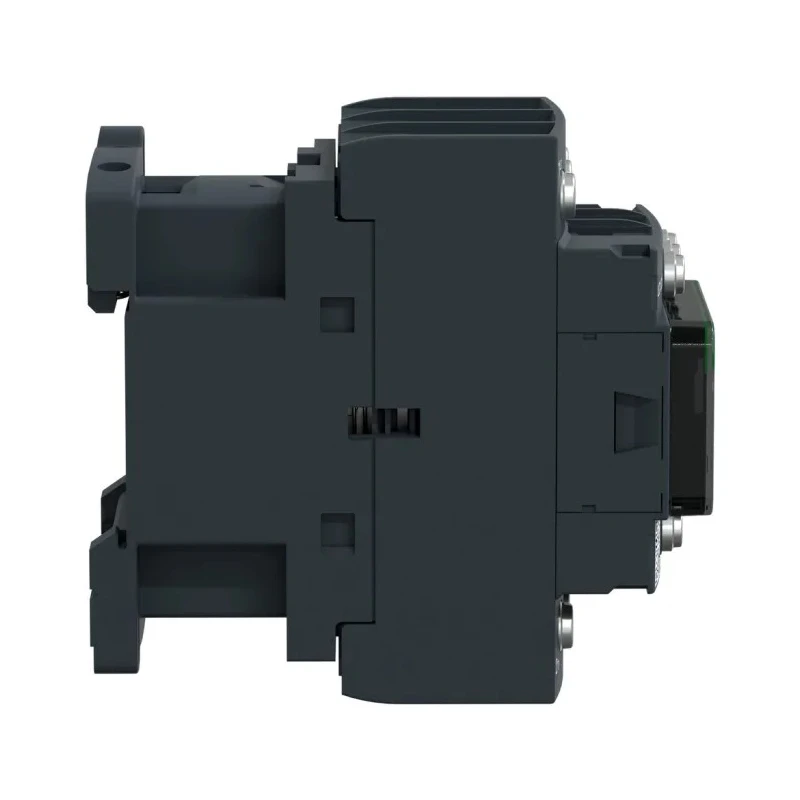

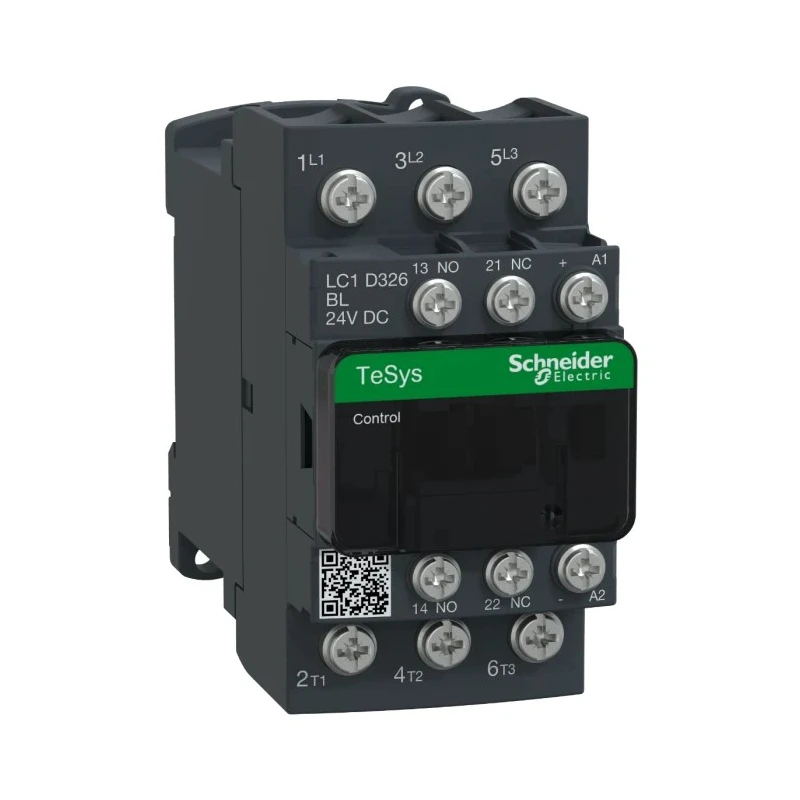

Schneider Electric LC1D326BL TeSys Deca 3-Pole Contactor, 24V DC Coil, 32 A, 15 kW, 3 NO Auxiliary Contacts, 690V AC
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 45mm |
| Model | LC1D326BL |
| Depth | 85mm |
| Width | 101mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Pole and Throw Configuration | 3P |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 24V DC low consumption coil with transient suppressor module.
- 3 NO main poles suitable for motor applications up to 32A and 690V AC.
- Includes 1 normally open and 1 normally closed auxiliary contacts, with NC mirror certification.
- Compact design with dimensions 45mm (L) x 101mm (W) x 85mm (D) for DIN rail mounting.
- Certifications include IEC, UL, CSA, CCC, EAC, and Marine standards compliance.
- Rated for operating temperatures from -5°C to 60°C suitable for industrial environments.
- Designed for operating rates up to 3600 cycles/hour ensuring durability and reliability.
- Ring-lug screw terminals provide secure electrical connections for load and auxiliary contacts.
Product Description
Schneider Electric LC1D326BL is a TeSys Deca 3-pole contactor designed for motor control applications with a low power consumption 24V DC coil featuring a transient suppressor module. It offers dependable switching for motor circuits up to 32A and 690V AC, with a power rating of 15 kW.
The contactor is equipped with three normally open main contacts and two built-in auxiliary contacts (1 NO + 1 NC), with the NC contact mirror certified to ensure safety and reliability. Its compact dimensions (45mm length, 101mm width, 85mm depth) suit DIN rail mounting or screw fixation, making it ideal for space-conscious industrial installations.
Certified to multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine certification, it complies with stringent quality and safety requirements. The contactor operates reliably over a temperature range from -5°C to 60°C and supports mechanical endurance for up to 3600 cycles per hour, ensuring long service life even in demanding industrial environments.
The robust lug ring terminals facilitate secure load and auxiliary connections. Suitable for a variety of industrial motor control applications, it can handle horsepowers ranging from 7.5 HP at 200-208 VAC to 30 HP at 600 VAC across three-phase systems.
Being a Green Premium certified product, it meets environmental standards for reduced hazardous substances in compliance with RoHS and REACh directives, making it a sustainable choice for modern electrical installations.
Low consumption 24 VDC coil with transient suppression. 3 NO main poles for reliable motor control switching. 1 NO + 1 NC auxiliary contacts with mirror certification on NC contact. Compact dimensions and DIN rail mountable design.
Certified for global standards including IEC, UL, CSA, CCC, EAC, and Marine. Operational temperature range from -5°C to 60°C for industrial usage. Durable for 3600 operating cycles per hour. Ring-lug screw terminals for electrical connections.
Power ratings up to 15 kW, suitable for various industrial motor sizes. Environmentally compliant Green Premium product under RoHS/REACh.
Used widely in industrial automation, electrical control circuits, motor starters, HVAC systems, and manufacturing equipment, the Schneider Electric LC1D326BL delivers high reliability and efficiency. Its extensive accessory compatibility enhances application flexibility.
Explore more Schneider Electric automation and control gear products on EnvMart for your industrial and commercial projects.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D326BL contactor has a power rating of 15 kW.
It can handle a maximum contact voltage of 690V AC.
This model uses a 24V DC coil with low consumption and includes a transient suppressor module.
The contactor has a contact current rating of 32A.
It includes two auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The dimensions are 45mm in length, 101mm in width, and 85mm in depth.
The operating temperature range is from -5°C to 60°C.
It uses lug ring terminals for secure electrical connections.
Yes, it is certified to multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine standards.
It is suitable for various industrial motor control applications, including HVAC systems and manufacturing equipment.
It is designed for operating rates of up to 3600 cycles per hour.
This model is designed for DIN rail mounting.
