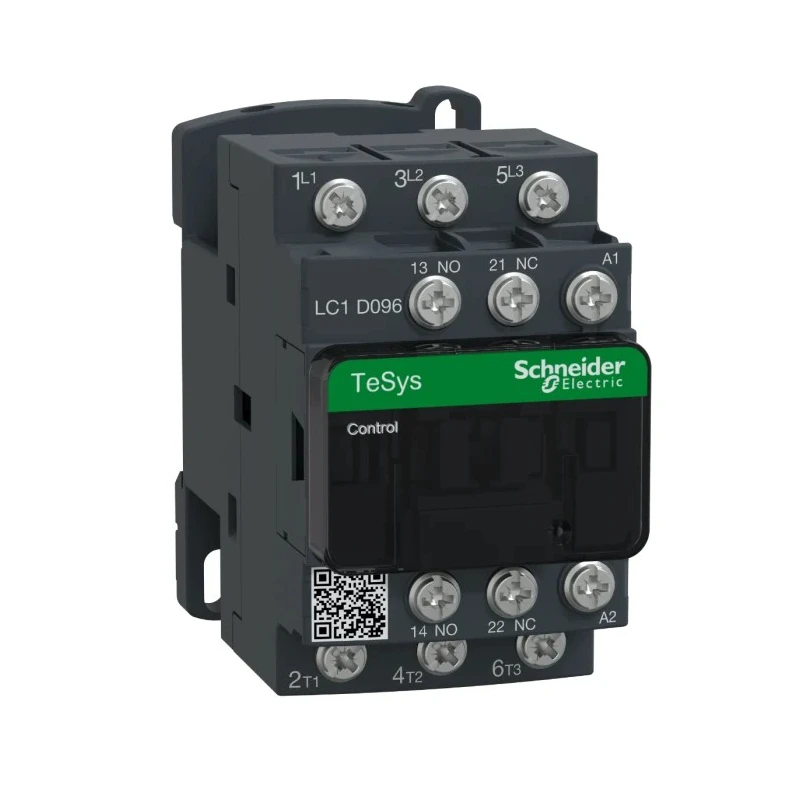

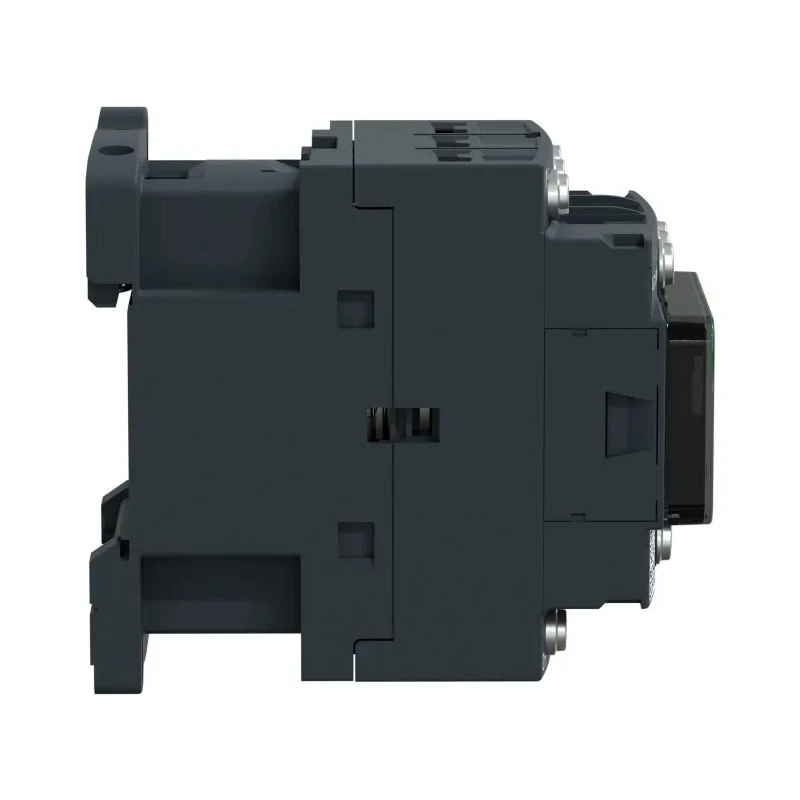

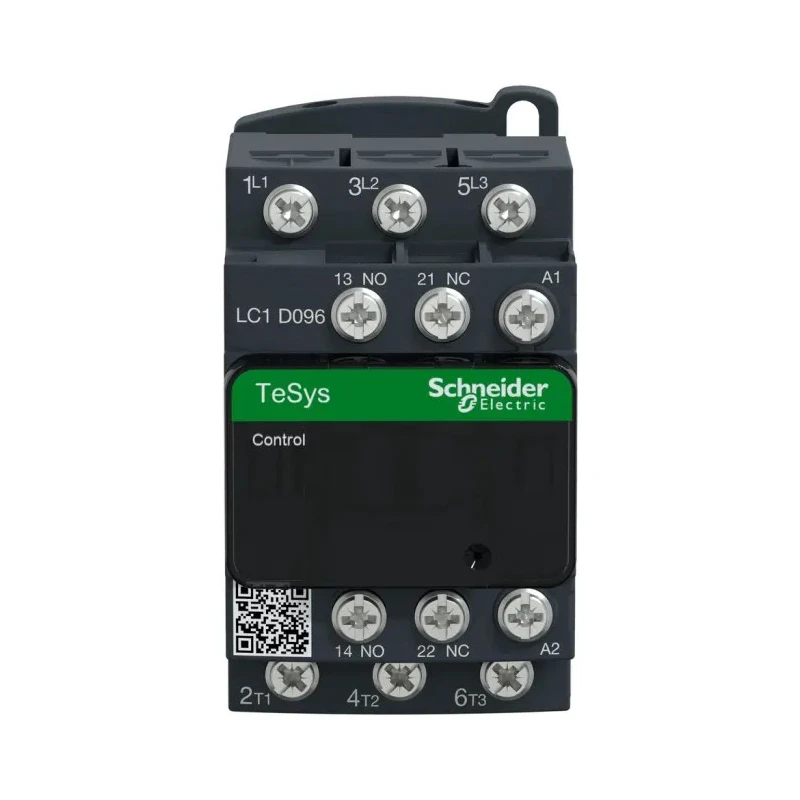

Schneider Electric LC1D Series Reversing 3-Pole Contactor, 230V AC Coil, 9A, 4kW, 3 NO Auxiliary Contacts LC1D096P7

Schneider Electric LC1D096P7 is a reversing 3-pole contactor engineered for motor control applications in industrial automation and electrical control systems. It operates with a coil voltage of 230V AC and supports a contact current rating of 9A and power load of 4kW at the same voltage, making it highly effective for switching and controlling motor loads reliably.

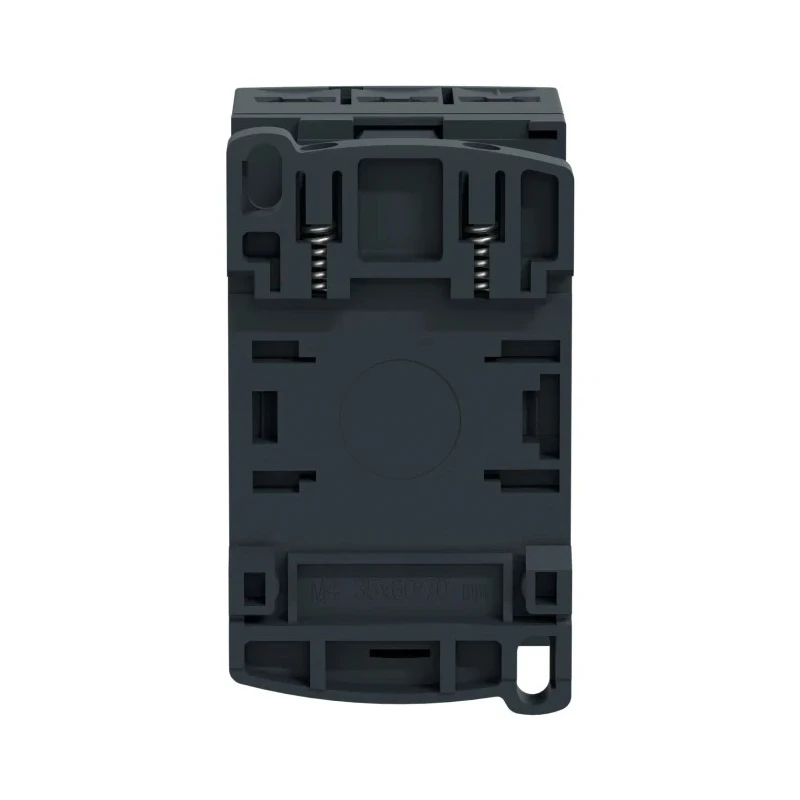

The device is designed for DIN rail mounting, facilitating easy installation and space-saving arrangement inside control panels. Its compact dimensions of 45mm length, 86mm width, and 77mm depth suit industrial enclosures with limited space availability. The contactor features three normally open (3 NO) auxiliary contacts and two additional auxiliary contacts configured as 1 NO and 1 NC, providing versatile circuit control options.

Rated for contact voltages up to 690V AC, the contactor can handle both AC and DC loads, with DC ratings up to 300V, supporting a range of industrial applications. It functions reliably in ambient temperatures from -5°C to 60°C, ensuring consistent performance even in variable environmental conditions.

Connections utilize lug ring terminals with an 8mm external diameter, providing secure, stable wiring to both power and control circuits. The LC1D096P7 contactor is built for durability with a mechanical lifespan rated at 15 million operational cycles, suitable for demanding industrial usage with minimal maintenance requirements.

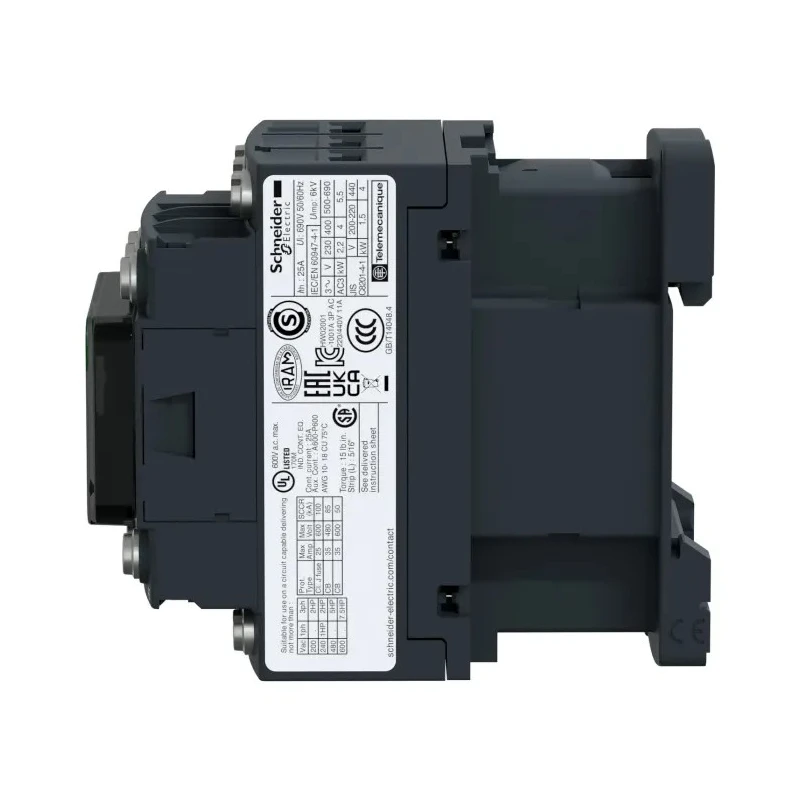

This model complies with international standards including CSA C22.2 No 14, EN 60947-4-1, IEC 60947-4-1, UL 508, and other global certifications that assure safety and performance. The product is manufactured in Indonesia, maintaining Schneider Electric's commitment to quality and reliability in automation components.

Commonly employed in automation systems, electrical panels, motor-operated device controls, and resistive or inductive load management, this contactor offers robust industrial performance and versatility. Its reversing function capability expands its application for motor direction control in various manufacturing, commercial, and HVAC equipment.

Operates on a 230V AC coil voltage suitable for standard industrial control circuits. Compact DIN rail mount design for efficient panel integration. Supports high contact voltage of 690V AC and current of 9A for broad load compatibility.

Includes auxiliary contacts for enhanced control flexibility. Wide operating temperature range from -5°C to 60°C ensures reliability in varying environments. Mechanical durability of 15 million cycles for extended operational life.

Compliant with numerous international safety and performance standards. Applications include motor control, automation systems, and industrial machinery control circuits. Explore the Schneider Electric product range on EnvMart for more quality electrical and automation components designed to optimize industrial systems.
