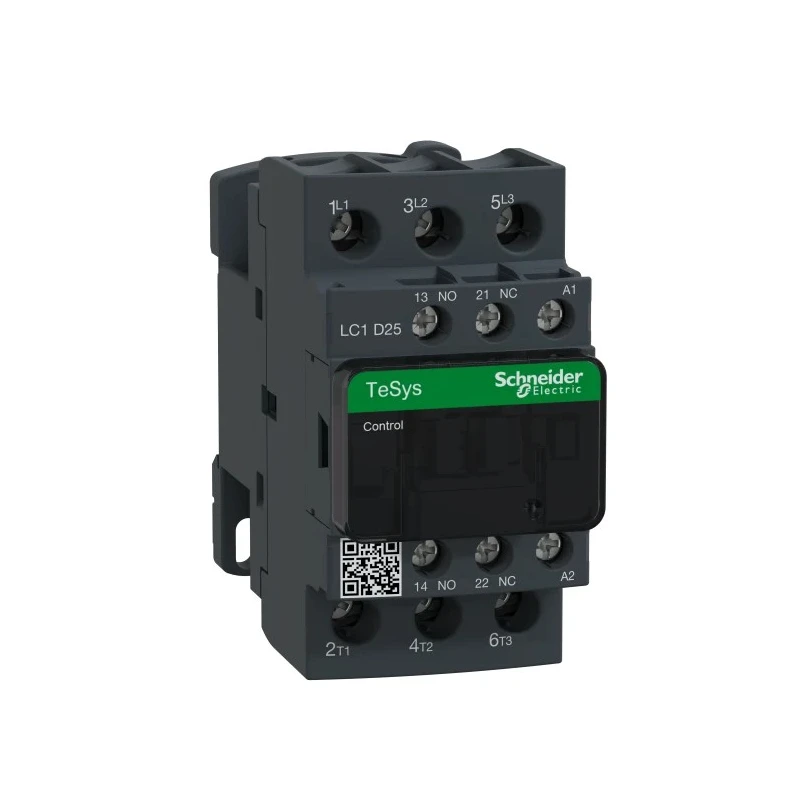

Schneider Electric LC1D TeSys D 3-Pole Contactor 230V AC Coil 25 A 22 kW 208V AC 3 NO 690V AC LC1D25LE7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 45mm |
| Model | LC1D25LE7 |
| Depth | 85mm |
| Width | 92mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Control Circuit Voltage Uc | 208V ac |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for efficient motor control with a 3-pole configuration.
- 230V AC coil voltage suitable for standard industrial control circuits.
- Durable screw terminals with IP20 finger-safe protection.
- Complies with multiple international standards including IEC and UL.
- Compact size with dimensions of 92mm width, 85mm depth, and 45mm length.
- Operates reliably between -5°C and 60°C ambient temperatures.
- Equipped with 1 normally open and 1 normally closed auxiliary contacts.
- Mountable on DIN rail or panel for flexible installation.
Product Description
Schneider Electric LC1D25LE7 is a 3-pole TeSys D series contactor designed for motor and load control in industrial automation systems. It features a 230V AC coil voltage and can handle contact currents up to 25 A. This contactor supports power ratings up to 22 kW at 208V AC and has three normally open (NO) main contacts rated for 690V AC operation.
Ideal for use in control systems managing resistive and motor loads, the device includes built-in auxiliary contacts (1 NO/1 NC) that enhance switching functions and control flexibility. The robust screw terminal connections are IP20 finger-safe with markings for easy wiring, designed for both North American and international standards.
The LC1D25LE7 has a compact footprint with dimensions of 92mm width, 85mm depth, and 45mm length, suitable for space-constrained panel applications. Its operating temperature range from -5°C to 60°C ensures reliable performance in various environments.
It conforms to stringent international standards including CSA C22.2 No 14, EN 60947-4-1, IEC 60947-4-1, UL 508, and others, making it suitable for use in industrial, manufacturing, HVAC, and automation applications where safe and efficient motor control is critical.
Installation is straightforward with options for DIN rail mounting or panel mounting with screws. The contactor also features built-in protective diode suppressors to safeguard the coil from voltage peaks, extending lifespan and reliability.
Designed for reliable control of motors and resistive loads. Auxiliary contact options to extend control functionality. Screw connections with finger-safe IP20 protection. Compliance with global safety and performance standards.
Compact size for easy integration into control panels. Suitable for industrial, manufacturing, HVAC, and water treatment applications.
Overall, Schneider Electric LC1D25LE7 is a high-performance contactor integrating robustness, ease of installation, and trusted international certification for professional automation systems.
Explore the full range of Contactors and Automation & Control Gear at EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 22 kW at 208V AC.
The coil voltage for the LC1D25LE7 is 230V AC.
It has a compact size with dimensions of 92mm width, 85mm depth, and 45mm length.
The LC1D25LE7 can handle a maximum contact current of 25 A.
This contactor operates reliably between -5°C and 60°C ambient temperatures.
It features a 3-pole configuration.
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
The LC1D25LE7 can be mounted on a DIN rail or panel using screws.
The contact voltage rating is 690V AC.
It complies with multiple international standards including IEC 60947-4-1 and UL 508.
It features screw terminals that are IP20 finger-safe with markings for easy wiring.
This contactor is suitable for industrial, manufacturing, HVAC, and automation applications.
