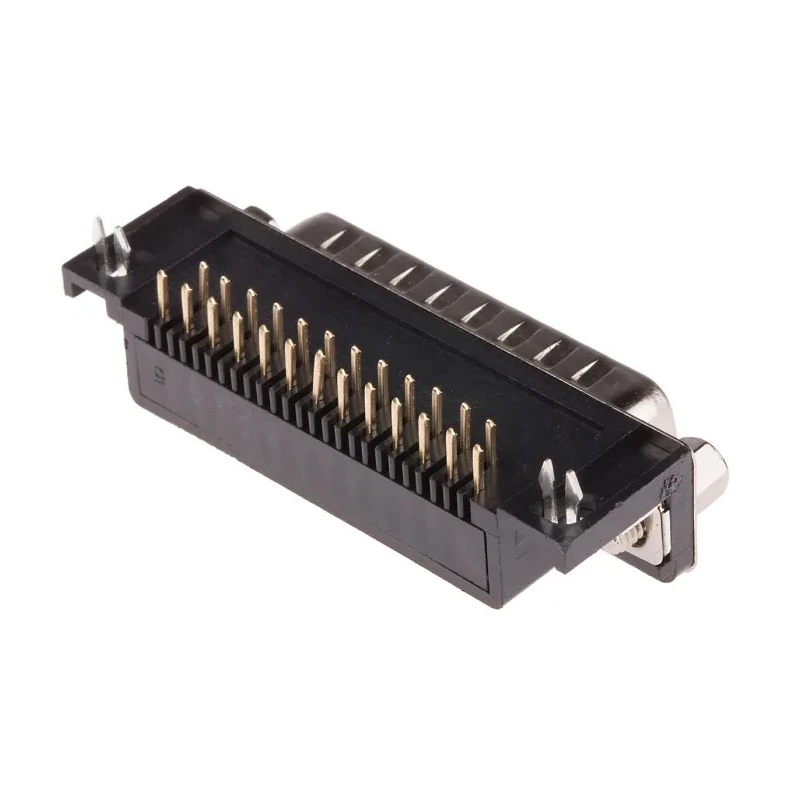

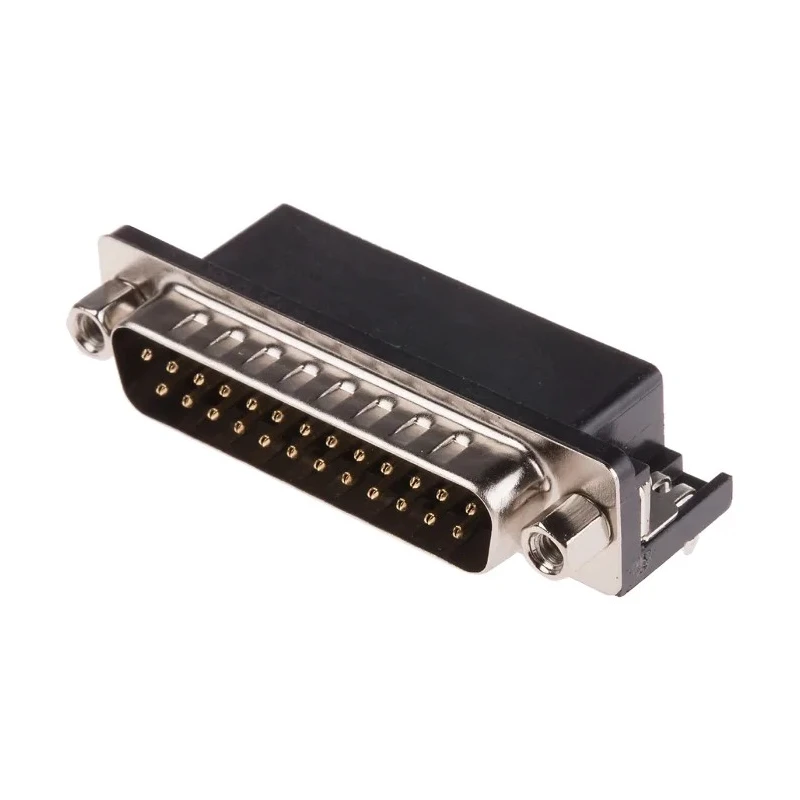

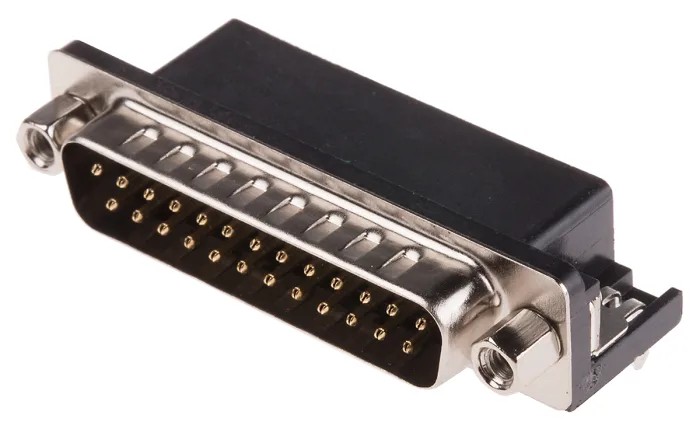

RS PRO 107 25 Way Right Angle 2.77 mm Pitch Through Hole Male D-Sub Connector 250V 3A 811-7125
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 3A |
| Model | 811-7125 |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | 107 |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| A range of Right Angle PCB mount D-Sub connectors with | Nickel plated steel shells, Black Glass-Filled Thermoplastic PBT UL 94V-0 insert, Brass Gold flash plated stamped contacts, Brass Tin plated grounding hook boardlocks, Brass Nickel plated M3 threaded screwlocks installed and 9.4 mm footprint |
Key Features
- Features a right angle orientation suitable for tight PCB layouts.
- Contains 25 contacts with a 2.77 mm pitch for precise connectivity.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
- Supports a maximum current of 3A and voltage of 250V.
- Termination type is solder with 4 to 40 UNC screw lock mounting hardware.
- Operates in temperature range from -55°C to 105°C, ensuring wide environmental tolerance.
- Contact material is brass with gold plating for enhanced conductivity and corrosion resistance.
- Designed with nickel plated steel shells and UL 94V-0 thermoplastic inserts for safety and longevity.
Product Description
RS PRO 811-7125 is a 25 Way Right Angle Male D-Sub Connector designed for through-hole PCB mounting. It features a 2.77 mm pitch and is engineered to provide a secure and reliable electrical connection for industrial, electronics, and manufacturing applications. The connector operates at 250V and supports a current of up to 3A, making it suitable for medium power signal transmission.
The connector housing is made from fibreglass reinforced polybutylene terephthalate (PBT), meeting UL 94V-0 standards for flame retardancy. The nickel plated steel shells enhance mechanical protection and electromagnetic shielding. Contacts are crafted from brass with a gold flash plating, improving performance by reducing oxidation and maintaining signal integrity. The connector includes 4 to 40 UNC screw lock mounting hardware, which ensures a steadfast and vibration-resistant connection.
Operating temperature ranges from -55°C to 105°C, making it suitable for harsh industrial environments, including electronics manufacturing, laboratory instrumentation, instrumentation panels, and control systems. Its right angle orientation is optimized for space-saving PCB designs.
This D-Sub connector series 107 is manufactured in China under the RS PRO brand, trusted for quality and compliance with industry standards. It is ideal for industrial, laboratory, manufacturing, and electrical assembly uses requiring durable, precise connectors.
Right angle orientation to optimize PCB space. 25 contacts with a 2.77 mm pitch for fine pitch requirements. Fibreglass reinforced polybutylene terephthalate housing for durability. Solder termination with 4 to 40 UNC screw lock hardware.
Nickel plated steel shells and gold flash plated brass contacts. Operates at 250V and 3A current capacity. Wide operating temperature range of -55°C to 105°C. Provides reliable electronic connections for industrial and manufacturing equipment.
