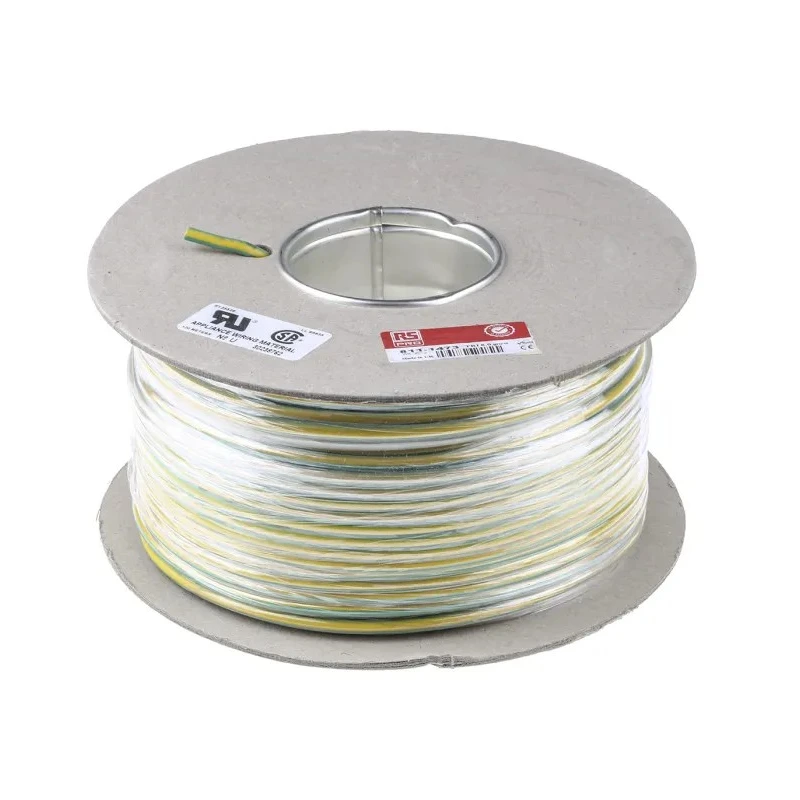

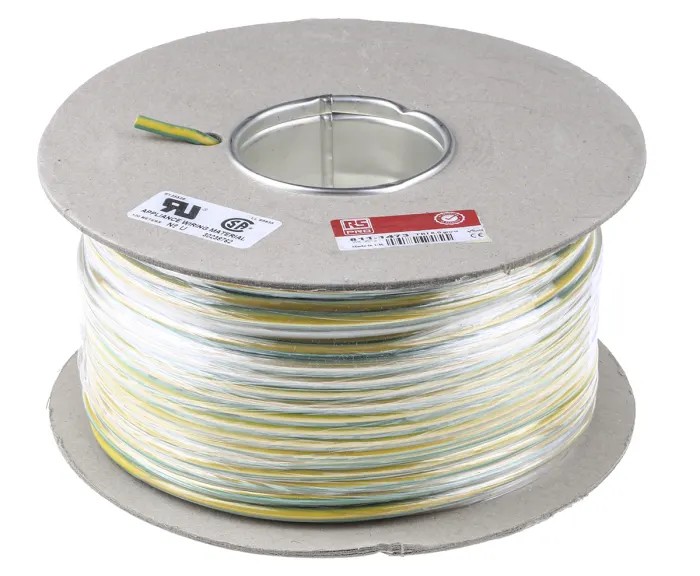

RS PRO Yellow Green 6 mm² 10 AWG Hook Up Wire Annealed Copper Tri-Rated PVC Insulated 100 m 811-1473

RS PRO 811-1473 Yellow Green 6 mm² Hook Up Wire is a high quality tri-rated single core cable designed for demanding industrial and electrical applications. It features a flexible annealed copper conductor constructed from 78 strands of 0.295 mm diameter wire, ensuring excellent conductivity and flexibility for ease of installation.

The wire is insulated with polyvinyl chloride (PVC) known for its heat resistance and flame retardant characteristics, meeting rigorous fire standards while maintaining low smoke emissions and being halogen free. With a nominal outside diameter of 4.9 mm, this 10 AWG wire is suitable for use at operating voltages up to 1 kV.

Tri-rated to BS6231 Type CK, UL, and CSA standards, this hook up wire is suitable for use both in European and North American markets, providing design flexibility and cost-effectiveness. The cable’s high temperature rating up to 90°C continuous use, with short-term tolerance to 105°C, makes it ideal for switchgear, motor starters, power control, and instrumentation panel wiring.

Applications include wiring inside electrical cabinets, control panels, relay and instrumentation panels, rectifier equipment connectors, and motor controllers. Its flexibility and robust PVC insulation help ensure safety, longevity, and performance in industrial automation, manufacturing, HVAC controls, and other harsh environments.

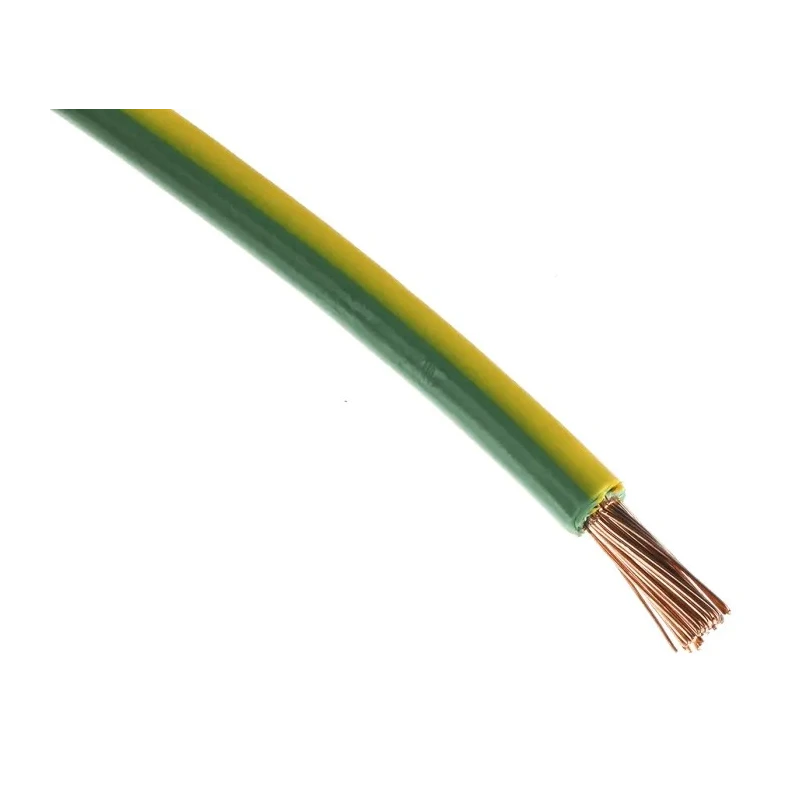

The wire features a cross sectional area of 6 mm² and a yellow-green insulating jacket for clear identification. It is constructed of an annealed copper conductor with 78 strands of 0.295 mm diameter for flexibility and conductivity.

The PVC insulation provides excellent heat resistance, flame retardancy, and low smoke emission. It is tri-rated to BS6231 Type CK, CSA, and UL standards, suitable for international applications. The cable length is 100 meters, suitable for large installations and wiring projects.

The nominal outside diameter is 4.9 mm and the voltage rating is 1 kV. The wire operates in temperatures from -15°C up to 90°C continuous and 105°C short term.

RS PRO Hook Up Wires are trusted for reliability in industrial, manufacturing, and electrical panel wiring applications requiring compliance with multiple international standards. This model 811-1473 ensures compatibility and safety in demanding environments.

Explore the wide range of RS PRO electrical cables and wires at EnvMart for your industrial and automation requirements.
