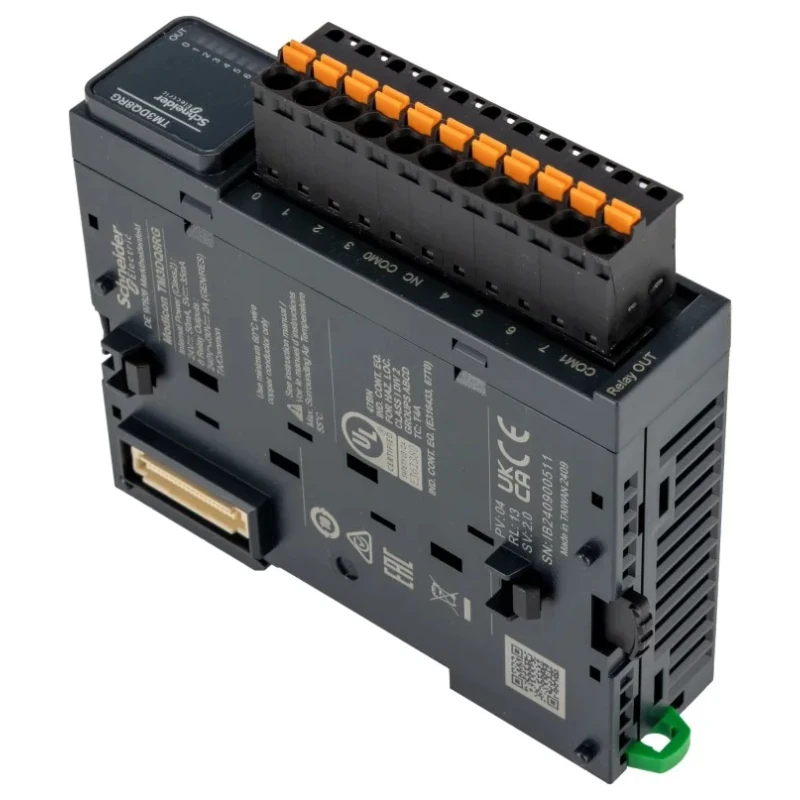

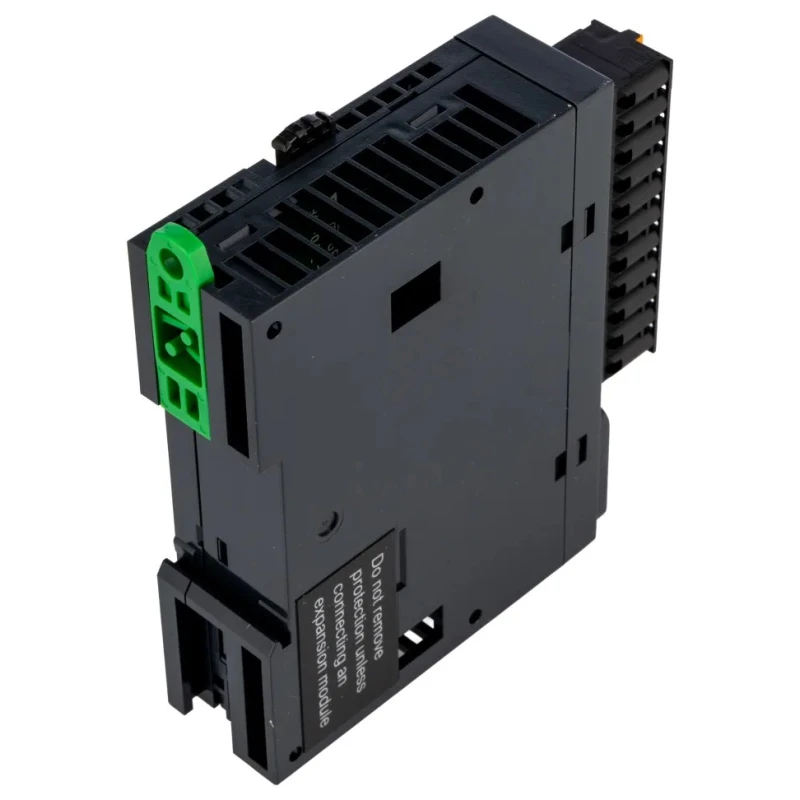

Schneider Electric PLC I/O Module 24V DC Discrete Output 200mA 8 Outputs Modicon TM TM3DQ8RG

Schneider Electric TM3DQ8RG PLC I/O Module is a DIN rail-mountable device delivering 24V DC discrete outputs with a current rating of 200mA per channel, designed for integration with Modicon TM series logic controllers such as M221, M241, and M251. This module efficiently transmits control signals from the processor to automated devices, enabling smooth and reliable industrial automation processes.

Measuring a compact 27.4mm width, 84.6mm depth, and 90mm height, the unit suits installation in constrained spaces without compromising performance. Its IP20 rating ensures protection against accidental contact with electrical parts and larger solid objects, enhancing operator safety.

Notable for its rapid 10ms turn-on and 5ms turn-off times, this module supports high-speed switching requirements common in robotics, medical imaging systems, aerospace technologies, and variable speed drives. The design incorporates insulation between output circuits and internal logic to minimize the risk of damage from electrical faults, thereby improving system reliability.

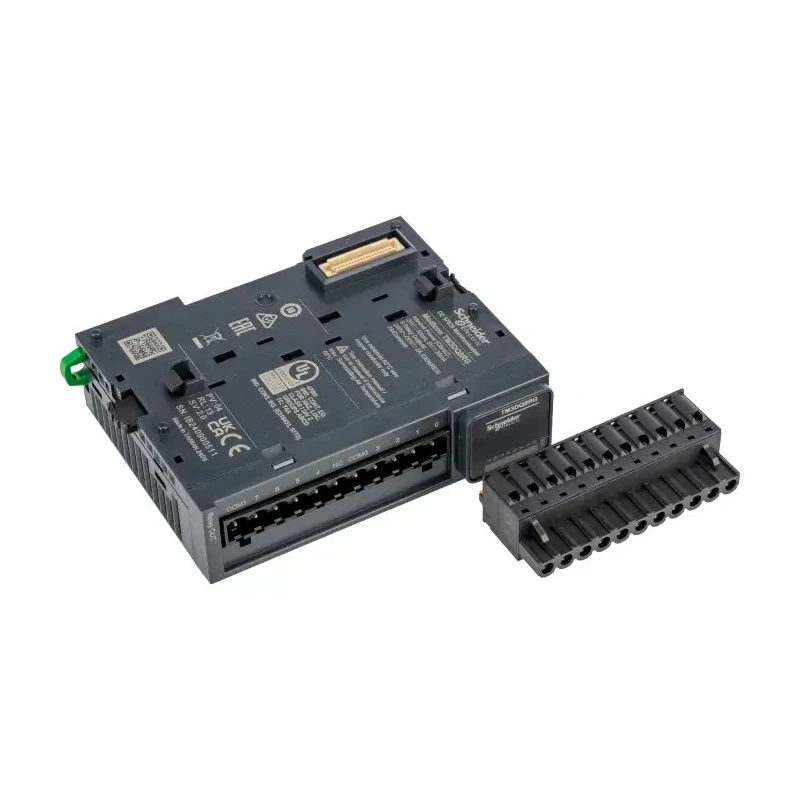

The device features a lightweight build of 0.11kg, which minimizes mechanical strain on mounting frameworks. Installation and wiring are simplified through a removable spring terminal panel, allowing conductors to be terminated easily before snapping the panel back in place.

This output module complies with cULus standards, confirming its quality and safety for industrial applications. It is engineered to withstand a mechanical durability of up to 20 million cycles, ensuring longevity in demanding environments.

Applications include varied industrial automation settings such as manufacturing plants, medical equipment control, robotics integration, aerospace control systems, and variable speed motor drives.

Set within Schneider Electric’s Modicon TM series, this output module enhances capabilities in PLC-based control systems, supporting seamless and efficient automation workflows. The module mounts easily on DIN rails for reliable and standardized installation.

Compact size allows fitting in restricted spaces without hindrance. Fast response times enable precise control and rapid switching. Electrical insulation safeguards internal logic from output-related faults. IP20 rating offers protection against finger access and large solid objects.

Lightweight design reduces strain on supporting structures. Compatible with several Modicon TM series PLCs for flexible integration. Wide industrial applications from robotics to aerospace and medical imaging. Explore more from Schneider Electric and browse related PLC I/O Modules to enhance your automation projects.
