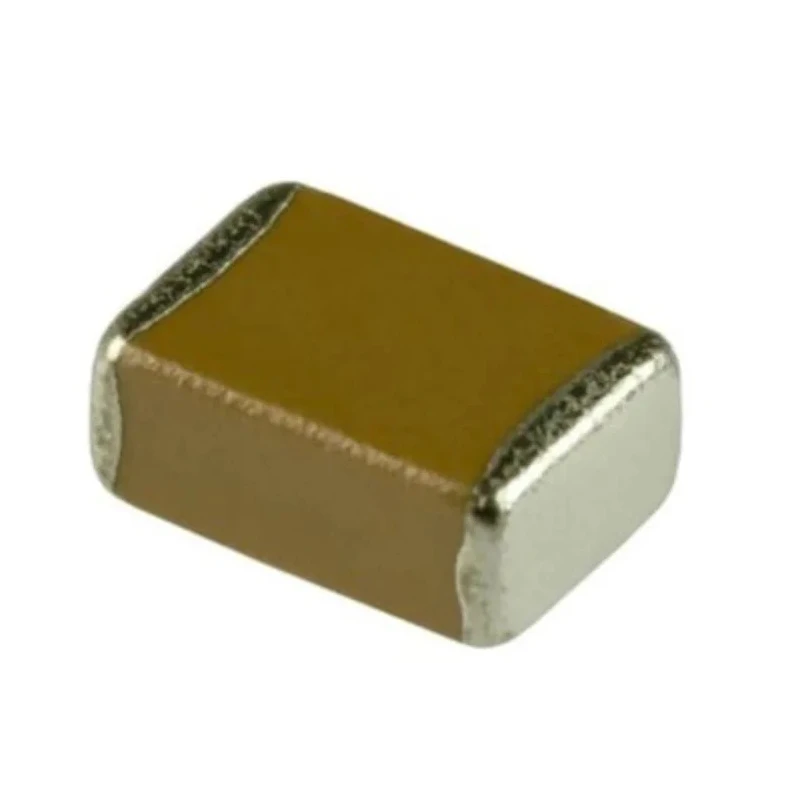

KEMET 1 nF 50V dc ±5 % Multilayer Ceramic Capacitor Surface Mount 0603 Package C0603C102J5GACTU

KEMET C0603C102J5GACTU is a 1 nF multilayer ceramic capacitor designed for surface mounting with a 50V dc voltage rating and ±5 % capacitance tolerance. It features a 0603 package size, measuring 1.6mm in length, 0.8mm width, and 0.8mm height, making it suitable for compact electronic assemblies.

The capacitor employs a C0G dielectric, which is temperature compensating and highly stable, limiting capacitance change to ±30 ppm/°C over a temperature range of -55°C to +125°C. This stability and minimal voltage-dependent capacitance change make it ideal for applications requiring precise frequency response and low loss, such as resonant circuits.

Construction includes a stacked multilayer design (C series) with solder termination, packaged in tape and reel form to facilitate automated pick-and-place manufacturing processes. The product meets multiple industrial standards including J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481 ensuring quality and reliability.

The operating temperature range spans from -55°C minimum to a maximum of 125°C, supporting demanding industrial and automotive environments.

This capacitor is commonly applied in bypass and decoupling circuits, frequency discriminating circuits, and other electronics where Q factor and capacitance stability are critical. The Class I suppression classification emphasizes stable capacitance characteristics over varying conditions.

KEMET's C0603C102J5GACTU encapsulates robust performance in a miniature package for advanced electronic component designs, supporting industrial, automotive, manufacturing, and telecommunications applications.

Compact 0603 package size enabling space-saving PCB layouts. C0G dielectric for superior temperature and voltage stability. Rated for 50V dc voltage with ±5 % tolerance for precise capacitance. Stacked multilayer construction optimizing capacitance in small form factor.

Surface mount compatible with tape and reel packaging for high-volume automated assembly. Conforms to recognized industrial standards for quality assurance. Wide operating temperature range from -55°C to 125°C for versatile deployment.

Ideal for resonant and frequency stable applications in industrial and automotive sectors.
