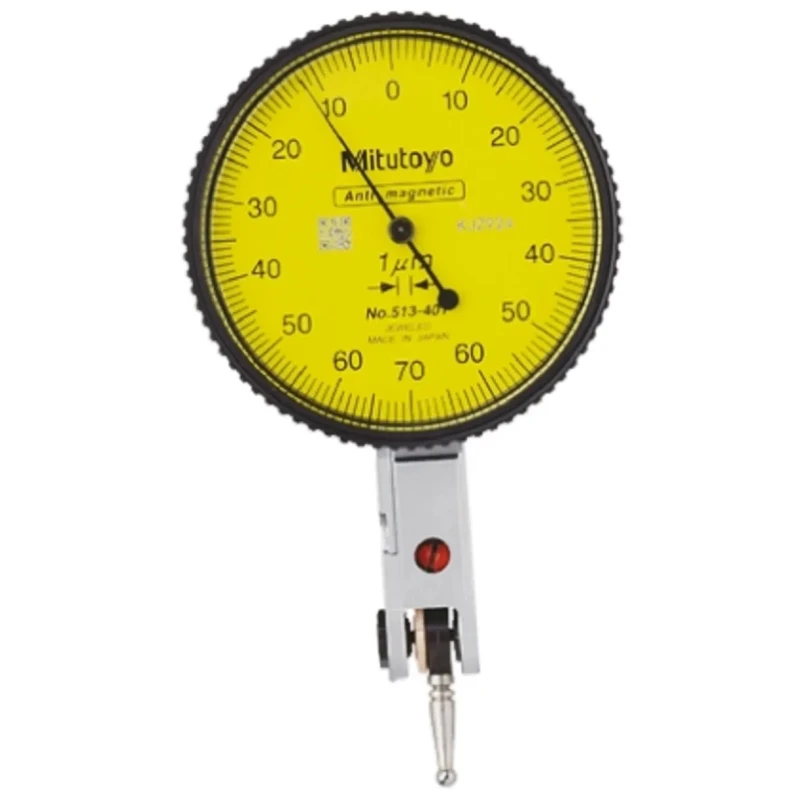

Mitutoyo Metric DTI Gauge 0.14 mm Max. Measurement, 0.001 mm Resolution, ±3 μm Accuracy 513-401-10E

Mitutoyo 513-401-10E Metric DTI Gauge is a professional horizontal lever indicator designed for precision measurement with a maximum measurement capacity of 0.14 mm, resolution of 0.001 mm, and accuracy of ±3 μm. The gauge features a 40 mm wide dial for clear visibility and an 8 mm stem size, enabling access to shrouded surfaces where conventional indicators may not reach.

This DTI gauge is engineered with a non-magnetic pointer and contact point, ensuring reliable operation even in magnetic environments. Its robust frame ensures excellent rigidity and durability, suitable for industrial and laboratory use.

The one-piece bezel combined with an O-ring seal provides resistance against dust and water intrusion, complementing the glare-free flat crystal face coated with a hard layer for excellent scratch resistance. The non-clutch structure allows for automatic reversal of measuring direction without manual intervention.

The instrument’s low-friction jeweled bearings offer high sensitivity and quick response, making it an excellent tool for alignment and measurement purposes in automotive, machining, fabrication, manufacturing, and workshop settings.

High-resolution dial indicator with 0.001 mm graduation. Maximum measurable range of 0.14 mm. Accuracy tolerance of ±3 micrometers for reliable measurements. Compact stem size of 8 mm and dial diameter of 40 mm. Non-magnetic lever indicator suitable for magnetic environments.

Durable construction with hard-coated crystal for scratch resistance. Dust and water resistant bezel with O-ring seal enhances protection. Low-friction jeweled bearings for quick response and high sensitivity. Ideal for automotive, machining, fabrication, manufacturing, and workshop applications.

This advanced DTI gauge complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards ensuring quality and reliability in industrial test and measurement applications. It is an essential instrument for precise comparative measurements and quality assurance in various manufacturing and engineering environments.
